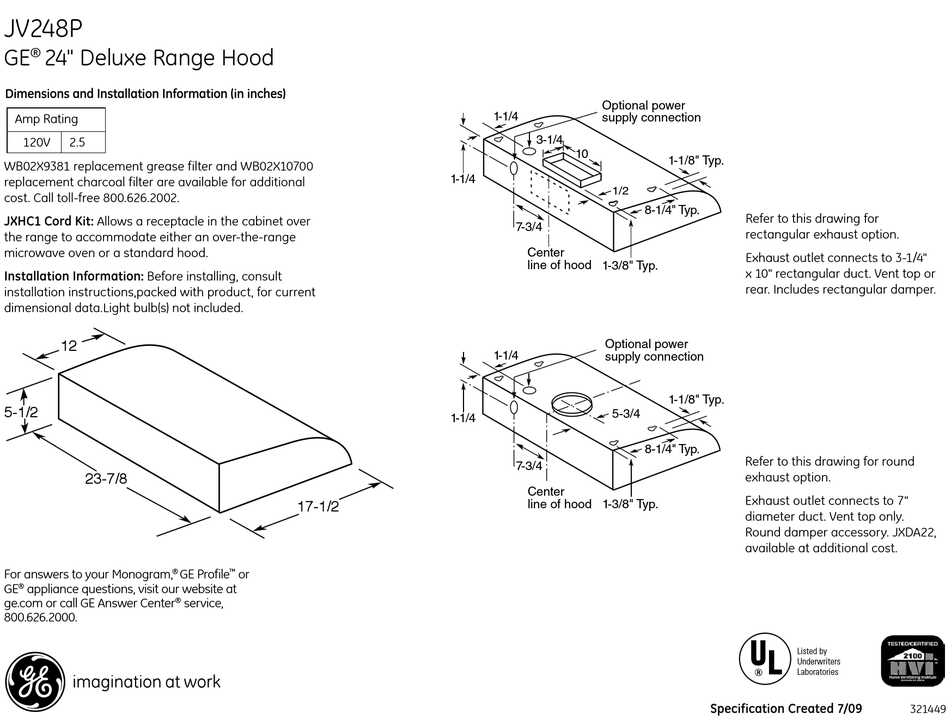

GE Deluxe JV247PWW Dimensions And Installation Information

JV248P
GE 24" Deluxe Range Hood
®
Dimensions and Installation Information (in inches)
Amp Rating
120V 2.5
WB02X9381 replacement grease filter and WB02X10700
replacement charcoal filter are available for additional
cost. Call toll-free 800.626.2002.
JXHC1 Cord Kit: Allows a receptacle in the cabinet over
the range to accommodate either an over-the-range
microwave oven or a standard hood.
Installation Information: Before installing, consult
Model JV347
installation instructions,packed with product, for current
dimensional data.Light bulb(s) not included.
12
1-1/4
3-1/4
10
5-1/2
1-1/4
7-3/4
23-7/8
Center
line of hood
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
Optional power
supply connection
1-1/8" Typ.
1/2
8-1/4" Typ.
17-1/2
1-3/8" Typ.
or
™
service,
Model JV347
1-1/4
3-1/4
10
1-1/4
7-3/4
Center
line of hood
1-1/4
1-1/4
7-3/4
Center
line of hood
Optional power
supply connection
1-1/8" Typ.
1/2
8-1/4" Typ.
Refer to this drawing for
rectangular exhaust option.
Exhaust outlet connects to 3-1/4"
1-3/8" Typ.
x 10" rectangular duct. Vent top or
rear. Includes rectangular damper.
Optional power
supply connection
1-1/8" Typ.
5-3/4
8-1/4" Typ.
Refer to this drawing for round
exhaust option.
Exhaust outlet connects to 7"
1-3/8" Typ.
diameter duct. Vent top only.
Round damper accessory. JXDA22,
available at additional cost.
Specification Created 7/09
1-1/4
1-1/4
7-3/4
Center
line of ho
Listed by
Underwriters
Laboratories
321449
