Dimplex PPC series Instructions

Electronic Convector
PPC Series

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock
and injury to person, including the following:
1. Read all instructions before using this heater.
2. Do not operate any heater after it malfunctions. Discon-
nect power at the service panel and have the heater
inspected by a reputable electrician before reusing.
3. To disconnect the heater, turn the controls to the OFF
position, and turn off the power to the heater circuit at the
main disconnect panel.
4. Do not insert or allow foreign objects to enter any ventila-
tion or exhaust opening, as this may cause an electric
shock or fire, or damage the heater.
5. To prevent a possible fire, do not block the air intakes or
exhaust in any manner.
6. A heater has hot and arcing or sparking parts inside. Do
not use it in areas where gasoline, paint, or flammable
vapors or liquids are used or stored.
7. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
8. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Keep combustible materi-
als, such as furniture, pillows, bedding, papers, clothes,
etc. and curtains at least 3 ft. (0.9 m) from the front and
sides of the heater.
9. Extreme caution is necessary when any heater is used
by or near children or invalids, and whenever the heater
is left operating and unattended.
10. Do not use outdoors.
11. Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.

SAVE THESE INSTRUCTIONS

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and re-
ceiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause unde-
sired operation.
FCC CAUTION: Any changes or modifications not expressly ap-
proved by the party responsible for compliance could void the user's
authority to operate this equipment.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device.

Installation Instructions

WARNING: Do not install the heater where the controls
can be reached by a person bathing or showering.
CAUTION: The heater must not be located directly be-
neath a wall socket outlet.
CAUTION: The supplied hanging components are de-
signed for use with this heater only. Improper use, or use
for purposes other than intended, may cause damage or
injury.
1. Remove the mounting bracket from the back of the con-
vector.
2. Using the mounting bracket as a guide determine the lo-
cation of the convector. There are two different mounting
options available for the PPC heater, see Figure 1 and 2.

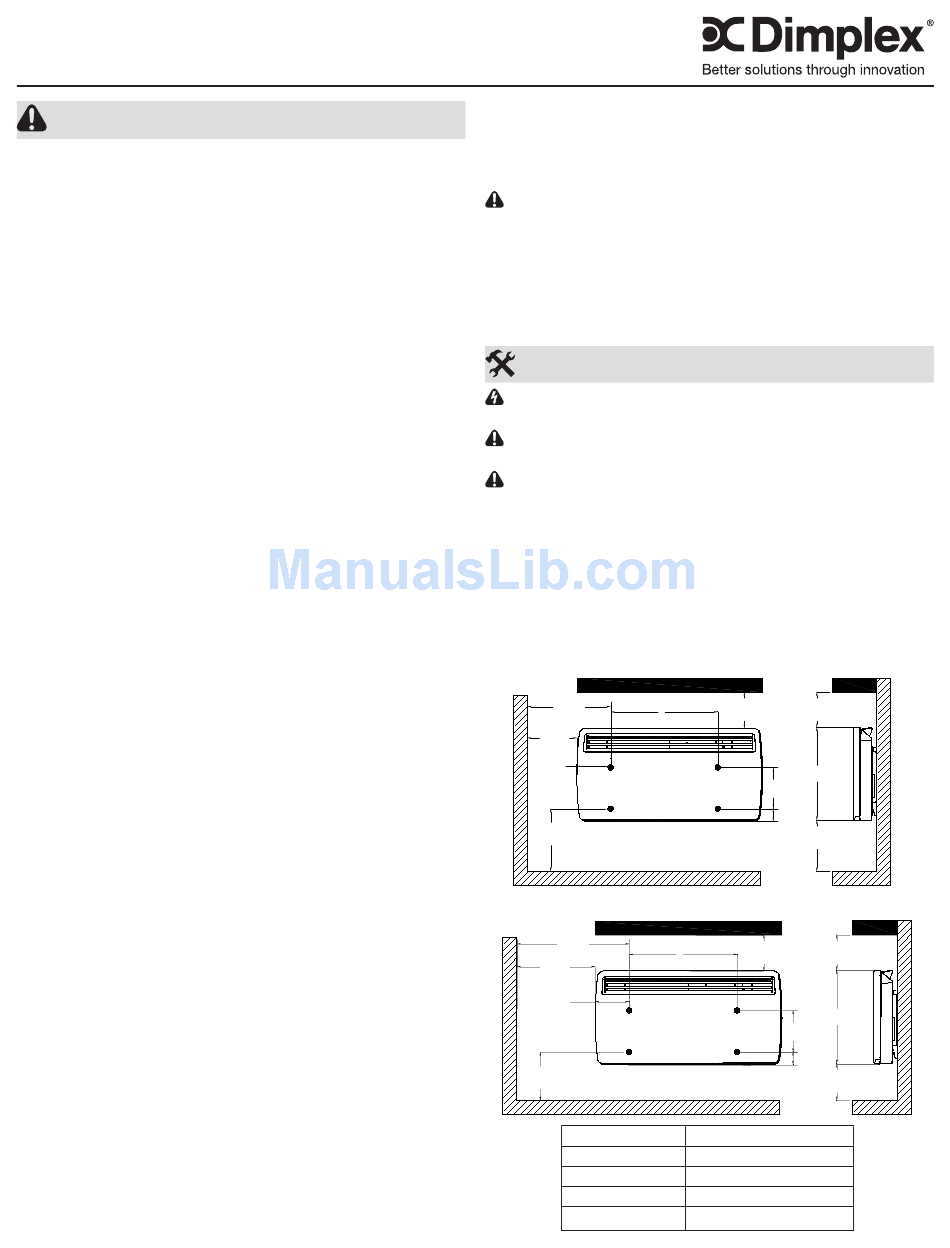

Figure 1
10.5"
(267 mm)
A
5.9"
(150 mm)
MIN
4.6"
(118 mm)
17.1"
(439 mm)
MIN
Figure 2
14.6"
(371 mm)
MIN
10"
(254 mm)
MIN
4.6"
(118 mm)
10"
(254 mm)
MIN
Model
PPC0500
PPC1000
PPC1500
PPC2000
5.9" 5.9"
(150 mm) (150 mm)
MIN MIN
16.9"
(430 mm)
7.25"
(184mm)
4.1"
13"
(105 mm)
(330 mm)
MIN
5.9" 5.9"
(150 mm) (150 mm)
A
MIN MIN
16.9"
(430 mm)
7.25"
(184mm)
4.1"
5.9"
(105 mm)
(150 mm)
MIN
A
4.6 in. (116 mm)
11.2 in. (285 mm)
14.0 in. (356 mm)
20.7 in. (526 mm)
7212840100R03
