IMPORTANT INSTRUCTIONS Retain This User’s Guide For Future Reference When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before using this heater. The heater is hot when in use.
WARNING: Do not connect the heater to the electrical supply if any of the components or the power cord is damaged in any way. If in doubt contact Dimplex Customer Service. Assembly 1. Remove the heater brace (Mounting Part B - Figure 1) from the heater body by sliding it straight down as shown in Figure 2-A.
Page 5
Figure 1 Locking Screw Mounting Part B Mounting Part A Release Button Locking Screw Release Button On / Off Switch When the heater panels are folded, the power shuts off automatically. Figure 2...
Page 6
diameter of between 1 - 2 inches (25 - 48 mm). (Figure 2-B) 3. Slip Mounting Part B back onto the heater body and fit it to the Mounting Part A from the bottom, sliding up. (Figure 2-C) Figure 3 4.
iii) This will release the heater panel and allow it to be folded down. WARNING: To reduce the risk of burning of the skin or other injury, do not fold any of the panels down without allowing them to cool. Should a panel be folded down without first turning off the unit, there is a safety feature that automatically shuts off the panel to prevent damage and injury.

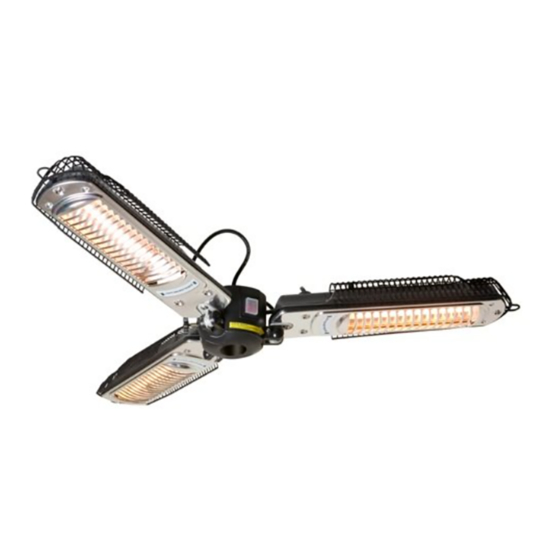

Warranty Products to which this limited warranty applies This limited warranty applies to the following model of your newly purchased Dimplex electric umbrella heater model number PUH1500. This limited warranty applies only to purchases made in any province of Canada except for Yukon Territory, Nunavut, or Northwest Territories or in any of the 50 States of the USA (and the District of Columbia) except for Hawaii and Alaska.
Page 9
Dimplex will in its sole discretion either repair or replace such defective product or part without charge. If Dimplex is unable to repair or replace such product or part, or if repair or replacement is not commercially practicable or cannot be timely made, Dimplex may, in lieu of repair or replacement, choose to refund the purchase price for such product or part.
Page 10
• Dimplex will not be responsible for, and the limited warranty services shall not include, any expense incurred for installation or removal of the product or part (or any replacement product or part) or any labour or transportation costs. Such costs shall be the purchaser’s responsibility.
