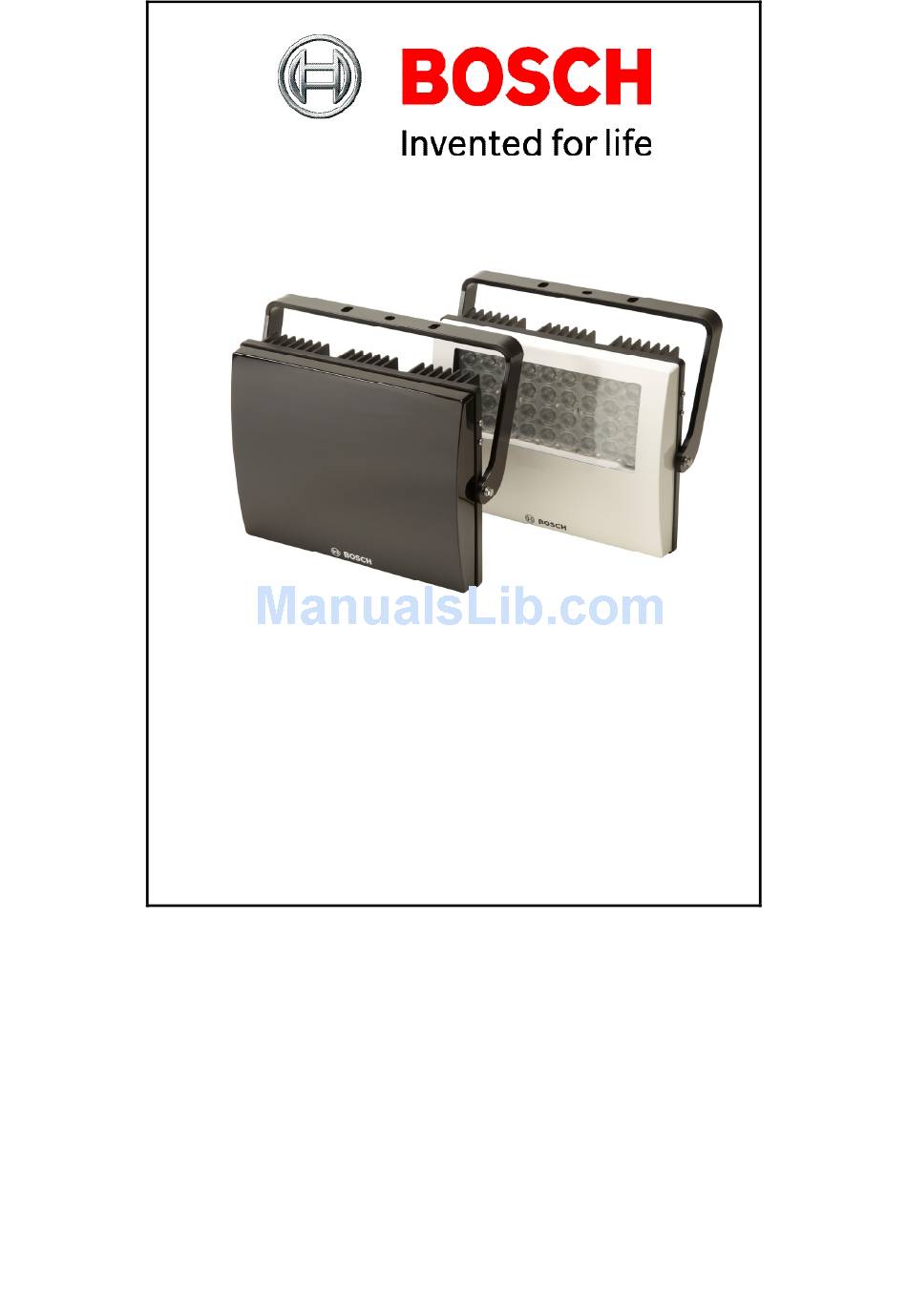

AEGIS SUPERLED INSTALLATION INSTRUCTIONS
INFRARED / WHITE LIGHT ILLUMINATOR

Advertisement

loading

  Related Manuals for Bosch Aegis Superled series

No related manuals

  Summary of Contents for Bosch Aegis Superled series

  • Page 1 AEGIS SUPERLED INSTALLATION INSTRUCTIONS INFRARED / WHITE LIGHT ILLUMINATOR...
  • Page 3: Box Contains

    AEGIS SuperLED Installation Instructions (this booklet) Whilst every effort has been made to ensure that all information contained in this document is correct at the time of publication, due to continuous product development Bosch reserves the right to change information herein without prior notice...
  • Page 4 1. DESCRIPTION A complete range of infrared and white light illuminators for CCTV, the AEGIS SuperLED range features patent pending illumination technology and installation friendly design.  Patent pending Constant Light technology automatically compensates for LED degradation to deliver a constant level of lighting performance for the life of the illuminator ...
  • Page 5: Specification

    2. SPECIFICATION Illuminator LED’s High efficiency Surface Mount LEDs with current limited integral circuit Wavelength 850nm, 940nm or white light (model dependant) Beam patterns 10 , 20 , 30 , 60 , 95 , 120 (model dependant) Average life > 5 years Consumption 50- 90W (90W Max Power) Power consumption will vary over time due to optical...
  • Page 6 Bosch UFLED-CI-1M (dedicated 1 meter cable to synchronize multiple illuminators) Brackets U mount bracket included. Please check the Bosch website for other available mounting options. Lens / Beam pattern The illuminator should be matched to the scene and the camera lens focal length.
  • Page 7 Models and achievable distances Achievable illumination distance depends on the characteristics of the CCD camera and lens used. Commercial Type Wave- Beam Achievable Horizontal Field Number length angle Distance of View (HFOV) SLED10-8BD 850nm 320m [1050ft] 52m [170ft] SLED20-8BD 850nm 200m [655ft] 70m [230ft] SLED30-8BD...
  • Page 8: Installation

    3. INSTALLATION Tilt the illuminator gradually until the top of the unit is directed towards the top of the furthest object Fig 1: Installing the AEGIS SuperLED illuminator Setting up the unit correctly is critical to obtain the best performance from the AEGIS illuminator.
  • Page 9 Day/Night Camera Switching Telemetry Output Input Pressure Equalisation Photocell Vent Power Input 12-24 Volt DC or 24 Volt AC (+/- 15%, 50/60 Hz) Fig. 2: AEGIS SuperLED rear side view Photocell Sensitivity Adjustment Power Adjustment Fig. 3: AEGIS SuperLED right side view...
  • Page 10 Telemetry Input Connection Fig. 4 : Telemetry Input pin layout Camera Day/Night Switching Output Connection Fig. 5 : Camera Day/Night Output pin layout...
  • Page 11: Photocell Sensitivity

    Photocell sensitivity To adjust photocell sensitivity first remove the sealing screw, then adjust the potentiometer to turn the lamp on at the desired lighting conditions, using a thin (maximum 2.5mm or 0.1inch diameter) flathead screwdriver. Turn the potentiometer fully clockwise to disable the photocell. Turn clockwise to increase photocell sensitivity...
  • Page 12 4. SAFETY WARNING: When the lamp is running it is hot to touch. Before touching, switch off the illuminator and allow cooling for a minimum period of 10 minutes. LED radiation Do not view directly with optical instruments (magnifiers). Do not stare directly into the lamp from a distance of less than 1.7m.
  • Page 13 Class 2 notification for White Light models The product is tested and compliant to IEC/EN 60825-1 (2001) under normal operating conditions, and is classified as a Class 2 LED product. The measured output was 10mW, peak at 590nm wavelength. The following notification label is placed on the side of the product.
  • Page 14: Remote Switching

    6. REMOTE SWITCHING Various switching configurations can be made using an interface cable. Commonly used switching configurations are explained below. Camera (or other switching device) leading The illuminator may be activated remotely by a volt-free contact latched across the TELEMETRY input. Use interface cable (UFLED-CI-5M). Illuminator Camera UFLED-CI-5M...
  • Page 15: Troubleshooting

    7. TROUBLE SHOOTING CHECK POWER SUPPLY Check that the unit is connected to a suitable voltage CHECK PHOTOCELL FUNCTIONS Check the photocell functions by covering with black tape and having the telemetry link closed. The photocell operation has an in-built delay of up to 5 seconds 8.
  • Page 18 Tel: +31 40 2577 284 Tel: +65 6258 5511 Fax: +1 585 223 9180 Fax: +31 40 2577 330 Fax: +65 6258 4671 security.sales@us.bosch.com emea.securitysystems@bosch.com apr.securitysystems@bosch.com © 2010 Bosch Security Systems, data is subject to change without notice. INST-177 Rev13...
