Summary of Contents for Classe Audio CA-5200

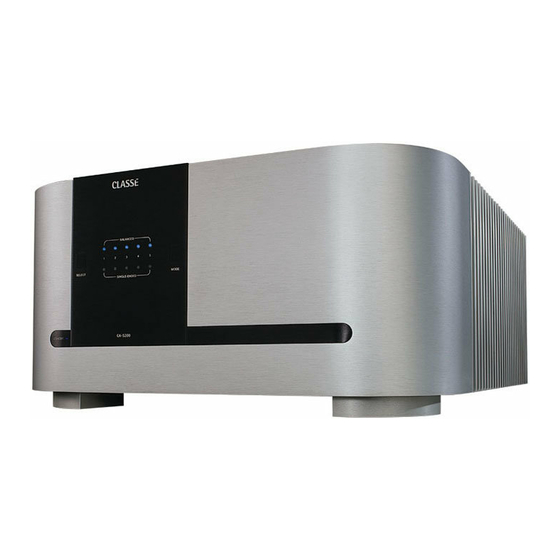

- Page 1 Owner’s Manual CA-5200 Power Amplifier...
- Page 2 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
-
Page 3: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi... -
Page 4: Table Of Contents
Contents Welcome to the Classé family ................5 a word about installation ................5 Unpacking and Placement ................6 unpacking your amplifier ................6 placement ....................6 ventilation ....................6 custom installations ..................7 serial number ..................... 7 register your purchase! ................7 operating voltage .................. -
Page 5: Welcome To The Classé Family
You will fi nd the warranty registration card at the end of the separate warranty policy booklet, enclosed. a word about installation Every eff ort has been made to make the Classé CA-5200 simple and straightforward to install and use. -
Page 6: Unpacking And Placement
Th e vents on both the bottom and the top of the CA-5200 must be kept free from any obstruction which would reduce the fl ow of air through the unit. Avoid... -
Page 7: Custom Installations
It will take only a minute or so. Please complete the card now, before you forget. operating voltage Th e CA-5200 power amplifi er is set at the factory (internally) for 100V, 120V, 220V, 230V, or 240V AC mains operation, as appropriate for the country in which it is to be sold (230V only in European Union countries, in compliance with CE regulations). -
Page 8: Warm Up/Break-In Period
Th e CA-5200 includes protection circuitry that will prevent the amplifi er from operating at dangerously high or low voltages. • At startup: the AC mains voltage must be within a range of approximately -15% to +10% of its nominal value at startup, or the amplifi... -
Page 9: Special Design Features
Special Design Features highly refined All Classé analog amplifi cation stages are based on circuits that have been circuit design extensively optimized over many years of continuous development. By starting with excellent circuit designs and working with them over the years, we are able to discover the many small refi... -
Page 10: Extraordinary Longevity
extraordinary longevity Another benefi t of having worked with highly refi ned circuit designs so extensively over many years is that we have vast experience in what works well over the long term. By using only the highest quality parts to begin with, and then using them in an informed way as a result of both accelerated aging experiments and actual long- term experience, we are able to design and manufacture products which we are confi... -
Page 11: Front Panel
Front Panel Standby button & LED indicator Th e front panel Standby button will toggle the amplifi er between operate, its fully operational state, and a standby mode that leaves the amplifi er off , yet ready to respond to system commands via any of the supported control options (e.g. - Page 12 Also, it is a good practice to physically disconnect any and all valuable electronics from the AC mains during electrical storms, as a lightning strike anywhere near your home can put a tremendous surge on the AC mains that can easily damage any piece of electronics, no matter how well designed and protected.
-
Page 13: Rear Panel
Rear Panel Th e following descriptions are intended as a quick reference, should you have any questions about your new product. Please see the next section (entitled Initial Setup) for specifi c advice on incorporating your new amplifi er into your system. - Page 14 Th e pin assignments of these XLR input connectors are: Pin 1: Signal ground Pin 2: Signal + (non-inverting) Pin 3: Signal – (inverting) Connector ground lug: chassis ground Th ese pin assignments are consistent with the standard adopted by the Audio Engineering Society (AES14-1992).
- Page 15 IR Input and Output Your Classé amplifi er includes two 8 th -inch mini mono-jacks in order to support the IR remote controls that are ubiquitous today. IR commands exist for toggling the amplifi er between operate and standby, as well as discrete command codes for either operate or standby.
- Page 16 For more information, please contact your dealer and ask about home automation systems. AC Mains Input An IEC standard power cord is used with the CA-5200. Plug the cord into the IEC receptacle on the rear panel, and the other end into a suitable wall outlet.
-
Page 17: Initial Setup
Initial Setup Your new Classé amplifi er is quite simple to set up and enjoy. Please follow the steps outlined below in order to safely set up and use your new amplifi er. Important: The AC mains connection should be the last connection you make on your new power amplifier. -
Page 18: Configuring Amplifier Turn-On Delay/Amp No
configuring amplifier In a system that contains multiple Classé amplifi ers, you may set the turn-on delay/amp no. number of seconds of turn-on delay for each amplifi er, allowing each to turn on in the order you have specifi ed, rather than all at once. Th is number also acts as an ID when using the CAN-Bus. -
Page 19: Can-Bus
CAN-Bus Classé’s Controller Area Network, or CAN-Bus, opens the way to a new level of interaction between our Delta range of amplifi ers, preamps, processors and source components. When the CA-5200 is connected with CAN-Bus, the diff erent elements of a Delta series system are in constant communication, creating a “global”... -
Page 20: Hardware Setup 1
A single CAN-Bus Terminator may be required. It is inserted into the CAN-Bus OUT connector of the last component in the CAN-Bus daisy chain. One is included in the box with your CA-5200. They are also available free of charge from your nearest Classé Customer Support Centre http://www.Classeaudio.com/support/service.htm... -
Page 21: Using Can-Bus
Th e diagrams below illustrate how to connect the CAN-Bus hardware. Any combination of models in any order without SSP-300 or SSP-600. CAN-BUS CAN-BUS CAN-BUS CAN-BUS Any combination of models in any order with SSP-300 or SSP-600. CAN-BUS CAN-BUS CAN-BUS CAN-BUS NOTE: Daisy chain may need to be terminated with CAN-Bus Terminator. -
Page 22: Can-Bus Shared Features
Th e touchscreen will then display the CAN-Bus devices screen, which lists connected Delta series components by model & serial number. Highlighting a unit on the CAN-Bus devices screen identifi es it as the target unit. Th e front panel LEDs of the target unit will start fl ashing (unless you highlight the unit that you are using to access CAN-Bus). -
Page 23: Name
name Allows you to set the name that this component will be listed under in the CAN-Bus devices screen. Th e name will appear next to the unit model and serial number, and facilitate the identifi cation of units in large systems. global brightness By setting all your components to global brightness you can adjust the touchscreen and LED brightness for your entire system by changing the brightness of a single touchscreen. -
Page 24: Amp Info
PlayLink is automatically active after a software update, and the PlayLink icon will only appear on the CAN-Bus confi guration screen of a Delta series disc player. PlayLink can only select a single input per disc player. It is therefore not designed for users who regularly play both CDs and DVDs through diff... -
Page 25: Care And Maintenance
Care and Maintenance To remove dust from the cabinet of your amplifi er, use a feather duster or a lint- free soft cloth. To remove dirt and fi ngerprints, we recommend isopropyl alcohol and a soft cloth. Dampen the cloth with alcohol fi rst and then lightly clean the surface of the amplifi... -
Page 26: Troubleshooting
Troubleshooting In general, you should refer any service problems to your Classé dealer. Before contacting your dealer, however, please check to see if the problem is listed here. No sound, and no Channel LED is lit. • Th e amplifi er is not plugged into the AC mains, or the AC mains are down (circuit breaker, fuse). - Page 27 b. If the fuse appears to be blown, replace it only with a fuse of the same type and rating (specifi ed below). Using any other type of fuse, particularly a larger-value fuse, can result in permanent damage to your amplifi er. If you are uncomfortable replacing the fuse yourself, contact your Classé...
-
Page 28: Specifications
Specifications All specifi cations are accurate at the time of printing. Classé reserves the right to adjust specifi cations without notice. Power output 200W/ch continuous rms @ 8Ω (both channels driven) 370W/ch continuous rms @ 4Ω Frequency response 10Hz – 22kHz (+0/-0.1dB) 10Hz –... -
Page 29: Dimensions
Dimensions... - Page 30 Canada H8T 1B3 +1 (514) 636-6384 +1 (514) 636-1428 (fax) http://www.classeaudio.com email: cservice@classeaudio.com North America: 1 800 370 3740 email: classe@bwgroupusa.com Europe: 44 (0) 1903 221 700 email: classe@bwgroup.com Asia: (852) 2790 8903 email: classe@bwgroup.hk All Others: +1 514 636 6394 email: cservice@classeaudio.com...
