Summary of Contents for SEDONA L400PS
- Page 1 MaKe tHe MoSt oF Your ™ Sedona care & uSe/inStallation...
-
Page 2: If You Smell Gas
WarninGS WarnIng Read this manual carefully and completely before using your grill to reduce the risk of: 1. Fire 2. Burn hazard, personal injury or property damage 3. Ruined steaks or other unpleasant cooking experiences 4. Unapproved installation or servicing. This product is designed for outdoor use only. - Page 3 13. THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE. This product complies with ANSI standard Z21.58/CSA 1.6 latest edition and has been tested and approved by Intertek. To obtain replacement parts or service contact: lynx Professional grills 5895 rickenbacker Commerce, Ca 90040 888-289-5969...
-
Page 4: Table Of Contents
Lighting Your Grill Basic Grilling Using the ProSear™ Burner Using the Optional Rotisserie Burner Cleaning Your Sedona Grill Troubleshooting Your Sedona Grill Contacting Lynx Customer Care Warranty INSTALLATION GUIDELINES Before You Start If shipment arrives damaged Built-In Installations Clearance to Combustibles... -
Page 5: Care & Use Guidelines
iMPortant SaFetY PrecautionS PLEASE REvIEw ThESE ImPORTANT SAfETy PRECAUTIONS bEfORE yOU USE yOUR GRILL. 1. neVer leaVe THe grIll unaTTended WHIle 11. Cooking excessively fatty meats and oils will cause flare CooKIng. ups. Internal fires or damage caused by them or by the grill being left unattended while cooking are not cov- ered under the terms and conditions of our warranty. -

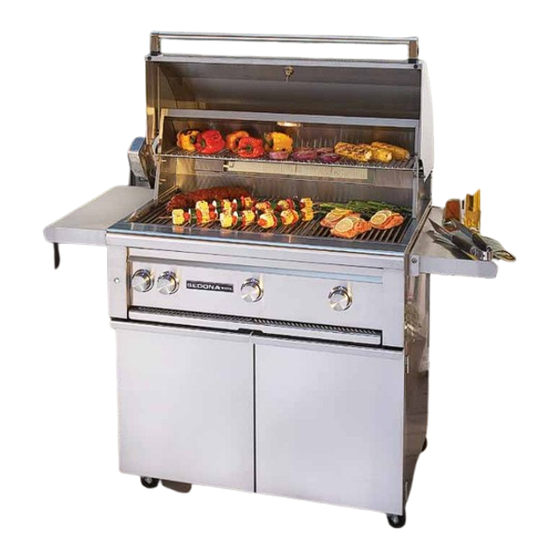

Page 6: Sedona Grill Models
This manual covers the following models, with or without Rotisserie burners. The freestanding carts are sold separately when use as a freestanding grill is desired. mODEL DESCRIPTION L400PS; L500PS 1 Stainless Steel Tube Burner and 1 ProSear™ Burner L600PS 2 Stainless Steel Tube Burners and 1 ProSear™ Burner L400PSR;... -
Page 7: Using Your Sedona Grill
uSinG Your Grill Grilling requires high heat for searing and low, controlled outside. Some foods are cooked using direct heat and heat for slow cooking. Thinner cuts of food are often some using indirect heat. cooked at a “HI” heat setting with the lid open. On the Your grill features a variety of professional-level burners and other hand, large, thick pieces of meat or poultry are often tools for meeting the wide variety of cooking challenges. -
Page 8: Lighting Your Grill
Pre-Grill cHecKliSt... continued bEfORE EACh USE • … you know where the main gas supply shut-off is located. Before any use, always make sure that: • ... you do not smell gas before you light the grill. If you • … the burners are seated properly in the grill with mount- do smell gas, shut everything off and have a qualified ing legs in the slots. - Page 9 liGHtinG Your Grill ... continued cold WeatHer WarninG: ProPane WarnIng inside Extremely cold temperatures may cause your ProSear™ burner to light the burner instead of outside . Once lit, if you hear a ‘whooshing’ sound, immediately turn the burner knob off to extinguish the flame and then immediately re-light the burner.
-
Page 10: Basic Grilling
BaSic GrillinG PRE-hEATING Pre-heating your grill every time you use it is extremely Then close the hood and allow the grill to heat for 10 to important. Pre-heating allows the briquettes to properly 15 minutes. Once you’ve reached your desired pre-heat heat up, providing more even and more consistent cooking temperature, turn off the burner that you won’t be using to results. -
Page 11: Using The Prosear™ Burner
uSinG tHe ProSear™ Burner Professional restaurant chefs rely on a different type of heat hOw TO SEAR ... infrared heat ... to create a higher searing temperature Searing locks in flavor and juices while allowing the food’s than what standard burners can achieve. So the ProSear™ outer surface to absorb smoke and food-born aromas pro- infrared burner is provided for this purpose. -
Page 12: Using The Optional Rotisserie Burner
uSinG tHe oPtional rotiSSerie Burner Rotisserie cooking provides an even delivery of heat to The location of the rotisserie burner makes it more suscep- your foods. It has no equal. The constant rotation not only tible to strong wind conditions (more so than the main grill cooks foods evenly, it also self bastes. - Page 13 uSinG tHe oPtional rotiSSerie Burner... continued The rotisserie Burner To light the rotisserie infrared burner, first mount the skew- ered food item on the grill then follow the rotisserie light- ing procedure. (See INDEX: “Rotisserie Burner, Lighting” for further details.) Once lit, the rotisserie burner should reach cooking tem- peratures in about 1 minute.
-
Page 14: Cleaning Your Sedona Grill
cleaninG Your Grill STAINLESS STEEL • Regularly wipe down the exterior surfaces with a damp cloth. (Micro fiber cloths such as Ecloth perform very Our grills are known for their attractive appearance. We well). achieve this by selecting only the finest grades of stainless • Allow the surfaces to dry before installing the cover –do steel and applying exacting workmanship. - Page 15 Any remaining food items can be brushed off using a soft brush. Replacement briquette trays can be ordered from Lynx Customer Care. mAIN bURNERS PROSEAR™ bURNER Make sure the grill is completely cool before proceeding. It’s easy to keep your ProSear™ burner operating at peak Ensure that the gas supply is off and all control knobs are in performance.
-
Page 16: Troubleshooting Your Sedona Grill
Then reconnect power. ensure that there If, after resetting the transformer and replacing bulbs, you still is a proper gap of do not have power, contact Lynx Customer Care. approximately 1/8” between the electrodes. Replace the bulb • Check the remaining igniters. - Page 17 If the burner will light with a match, then the igniter may correctly set up for the type of fuel you are using. not be functioning correctly. Contact Lynx Customer Care. (See INDEX: “Regulator Conversion” for further details.) If the burner will not match light, and you know you are...
-
Page 18: Contacting Lynx Customer Care
Correctly-installed burners should be seated firmly and ing Lynx Customer Care” for further details.) level with no side-to-side movement. contactinG lYnX cuStoMer care Before calling Lynx Customer Care, please make sure you have the following information: • Model number • Date of purchase • Proof of purchase by the original owner... -
Page 19: Warranty
II. limited five-year Warranty 7) No one has the authority to add to or vary Lynx’s The following grill parts are warranted to be free from warranty, or to create for Lynx any other obligation or defects in material and workmanship, when subjected to nor- liability in connection with the sale or use of its products. -
Page 20: Installation Guidelines
inStallation GuidelineS INSTALLATION GUIDELINES Before You Start If shipment arrives damaged Built-In Installations Clearance to Combustibles Cut Out Dimensions Unpacking and Assembly Gas Connections Natural Gas LP Gas Electrical Connections Connection to AC Battery Installation Final Checks Leak Testing Wiring Schematics L400/L500 Non-Rotisserie Grill L400/L500 Rotisserie Grill L600 Non-Rotisserie Grill... - Page 21 WarninG WarnIng 1. Always maintain the required clearances from combustible construction as detailed. The grill is de- signed for outdoor use only. NEVER use in a garage, building, shed, breezeway or other enclosed area. This grill shall not be used under any overhead combustible construction. 2.
-
Page 22: Before You Start
If the floor is uneven or has a decided slope, re-leveling responsibility for damage or loss incurred in transit. (See IN- may be required each time you move a freestanding unit. DEX: “Contacting Lynx Customer Care” for further details.) bUILT-IN INSTALLATIONS ImPORTANT NOTES Built-in grills are designed for easy installation into masonry where’s the wind? -
Page 23: Clearance To Combustibles
BeFore You Start... continued (See INDEX: “Gas Requirements”) Pay special attention to Ne pas utiliser cet appareil sous une surface combustible. the provisions shown for gas line hook-up. A minimum of 6” of clearance is needed on the left side of The enclosure should have ventilation holes to prevent gas the grill above the counter top for the motor and skewer. -
Page 24: Cut Out Dimensions
cut-out diMenSionS For Built-in GrillS Note: Side burners may be rotated 90 degrees. CouNtertop NotCh Detail CUTOUT NOT 0.56” only required if island countertop REQUIRED Note: For Natural Gas grills, the manufacturer WITH LIJs overhangs the face of the island recommends using 3/4”... -
Page 25: Unpacking And Assembly
unPacKinG and aSSeMBlY By carefully following the uncrating and unpacking steps, you will improve the customer’s first experience. WarnIng EXCESSIVE WEIGHT HAZARD! Use two or more people to move or install this unit. Failure to follow this instruction can result in back or other personal injuries. -
Page 26: Gas Connections
Fuel WC Max Inlet WC Min Under Full pressure regulator must be installed on all gas Load equipment. All local codes require it and Lynx supplies Nat Gas 7 in 4 in the correct regulator with your grill. Removing or... -
Page 27: Lp Gas
Permanently plumbed LP connections, such as those in In no case should pipe less than 3/4” inside diameter or 1” line with a bulk cylinder, require a 4/11 regulator. (Lynx outside diameter ever be used to connect this product. P/N 30781) • Calculate the total BTU output of all equipment and... - Page 28 GaS connectionS... continued lP Cylinder requirements LP Connections The LP cylinder must be constructed and marked in ac- Make sure the LP cylinder valve is fully closed. It is possible cordance with the specifications for LP gas cylinders of the for the valve to be open without releasing gas but, as soon U.S.
-
Page 29: Electrical Connections
electrical connectionS WarnIng - eleCTrICal groundIng Product installation must meet local electric codes or, in the To protect against electric shock, do not immerse any part of absence of local codes, the latest edition of the National Elec- the power cord, an extension cord or any plugs in water or trical Code ANSI/NFPA No. -
Page 30: Final Checks
Final cHecKS LEAk TESTING Fluctuations in gas pressure, gas conversion and even in the quality of the gas itself may affect burner performance at the “LOW” setting. It could be either too high or too low. danger To adjust the burner low setting: • Make sure the grill is cool. - Page 31 & care, you must leave this manual with the owner. make sure you advise them to keep it for future reference. For technical assistance call: lynx Customer Care 888-289-5969 SEDONA CARE & USE/INSTALLATION...
-
Page 32: Wiring Schematics
WirinG ScHeMaticS L400/L500 NON-ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION... -
Page 33: L400/L500 Rotisserie Grill
WirinG ScHeMaticS L400/L500 ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION... -
Page 34: L600 Non-Rotisserie Grill
WirinG ScHeMaticS L600 NON-ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION... -
Page 35: L600 Rotisserie Grill
WirinG ScHeMaticS L600 ROTISSERIE GRILL SEDONA CARE & USE/INSTALLATION... -
Page 36: Sedona Grill Exploded Parts View
Sedona Grill eXPloded PartS VieW SEDONA CARE & USE/INSTALLATION... -
Page 37: Sedona Grill Parts List
Sedona Grill PartS liSt SEDONA CARE & USE/INSTALLATION... -
Page 38: Model Specific Btu Outputs
Btu outPutS & MaXiMuM runS mODEL-SPECIfIC bTU OUTPUTS model TuBe Burner roTIsserIe Prosear™ ToTal InPuT L400PS 1 @ 23,000 Btu/Hr 1 @ 23,000 Btu/Hr 46,000 Btu/Hr L400PSR 1 @ 23,000 Btu/Hr 1 @ 12,500 Btu/Hr 1 @ 23,000 Btu/Hr 58,500 Btu/Hr... -
Page 39: Index
Important Safety Precautions ..5 Schematics, L600 Grill ....34 Checklist Before Each Use ..7, 8 Indirect Heating ....... 10 Service, contacting Lynx ..18 Cleaning the Burner ....15 Cleaning Your Grill ....14 Clearance to Combustibles ..23 Contacting Lynx Customer Care 18 Cut-out Dim., Built-in Grill .. - Page 40 Lynx Professional Grills 5859 Rickenbacker Rd. Commerce, CA 90040 Lynx Customer Care: 888.289.5969 Fax: 323.838.1778 www.lynxgrills.com ™ SEDONA CARE & USE/INSTALLATION...
