Summary of Contents for Scotsman CU0515

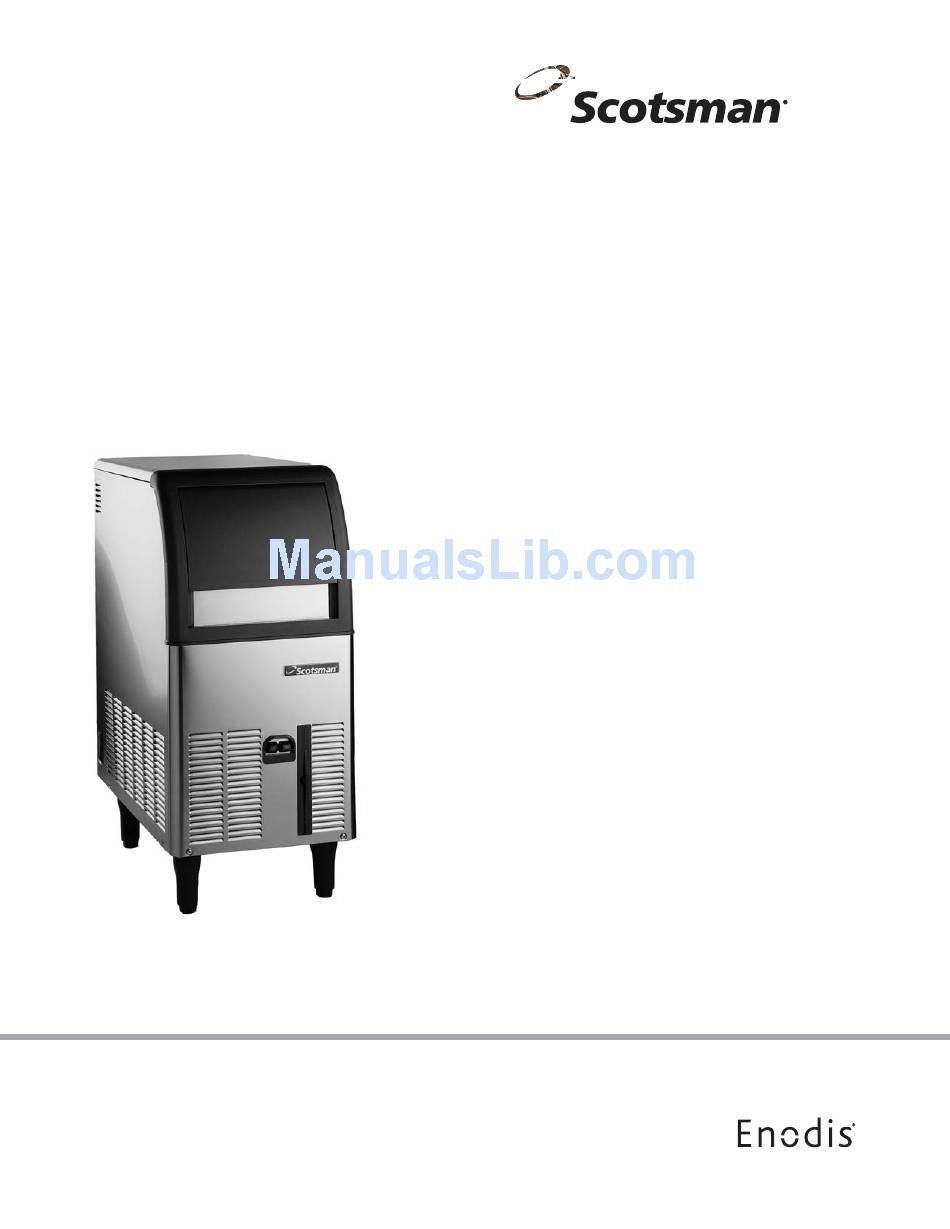

- Page 1 Installation and User's Manual for Cuber Model CU0515...
-
Page 2: Table Of Contents
This manual provides the specifications and the step-by-step procedures for the installation, startup, operation, maintenance and cleaning for the CU0515 ice machine. NOTE. To retain the safety and performance built into this ice machine, it is important that installation and maintenance be conducted in the manner outlined in this manual. -
Page 3: Specifications
CU0515 Specifications The ice machine must be installed indoors in a UNPACKING AND INSPECTION controlled environment. 1. Call your authorized SCOTSMAN Distributor or Minimum Maximum Dealer for proper installation. Air Temp 2. Remove the front panel of the unit and inspect for any concealed damage. -
Page 4: General Information And Installation
To keep your SCOTSMAN CUBER at peak performance levels, periodic maintenance checks must be carried out as indicated on Maintenance and Cleaning section of this manual. -
Page 5: Water Supply And Drain Connections
CU0515 Water Supply And Drain Connections General Water Drain When choosing the water supply for the ice cuber The recommended drain tube is a plastic or flexible consideration should be given to: tube with 18 mm (3/4") I.D. which runs to an open trapped and vented drain. -
Page 6: Final Check List
6. Has the water supply pressure been checked to 12. Has the owner been given the name and the ensure a water pressure of at least 20 psi. phone number of the authorized SCOTSMAN 7. Check all refrigerant lines and conduit lines to Service Agency serving him? guard against vibrations and possible failure. -
Page 7: Operating Instructions
CU0515 Operating Instructions Start Up NOTE. During the charging cycle, the water inlet After having correctly installed the ice maker and solenoid valve is energized. The water flows completed the plumbing and electrical through the valve to the back side of the connections, perform the following “Start-up”... -
Page 8: Operational Checks
CU0515 Operational Checks E. The unit now starts its first freezing cycle with Remove the ice from the storage bin thermostat. the following components in operation: The ice maker should restart automatically in · three-four minutes. Compressor · NOTE. The bin thermostat is factory set at 1... -
Page 9: Component Description
CU0515 Component Description Water Pump The water pump operates continually throughout the freezing cycle. The pump forces the water from the sump to the spray system and through the spray nozzles so it sprays into the inverted cup molds to be frozen into crystal clear ice cubes. -
Page 10: Operation - Electrical Sequence
CU0515 Operation - Electrical Sequence The following charts illustrate which switches and components are ON or OFF during the two phases of the icemaking cycle. Refer to the wiring diagram for reference. FREEZING CYCLE Electrical components Compressor • Water Pump •... -
Page 11: Cleaning Switch
CU0515 Cleaning Switch Located on the bottom side of the control box, it is · Red socket for the Water Level Sensor (future used to energize the water inlet and the hot gas use) valves to fill the sump of the machine with water ·... -
Page 12: Service Diagnosis
Shortage of water See remedies for shortage of water. Dirty water supply Use water softener or water filter. Accumulated impurities Use SCOTSMAN Ice Machine scale remover. Irregular cubes size & some Some jets plugged Remove jet cover and clean. cloudy Shortage of water See shortage of water. -
Page 13: Maintenance And Cleaning Instructions
CU0515 Maintenance And Cleaning Instructions GENERAL Clean - Replace Of Air Condenser Filter The periods and the procedures for maintenance 1. Withdraw the air filter from the front through the and cleaning are given as guides and are not to be opening of the front panel. -
Page 14: Cleaning Water System
16. Pour hot water into the bin to melt any ice 9. Mix approximately 3 ounces (1/10 liter) of produced during cleaning, and to clean out the Scotsman Clear 1 Scale Remover with 1.5 quarts drain. Wipe the interior of the bin with mild soap (1.5 liter) of warm (95-115 F.) potable water, and... - Page 15 CU0515 22. Return the evaporator cover removed in step 29. Thoroughly spray or wipe the interior of the ice 17 to its normal position. storage bin, bottom of the evaporator cover and the spray platform with the sanitizing solution. 23. Rotate the control knob to the Normal position.
- Page 16 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-533-6006 www.scotsman-ice.com 17-3169-01...
