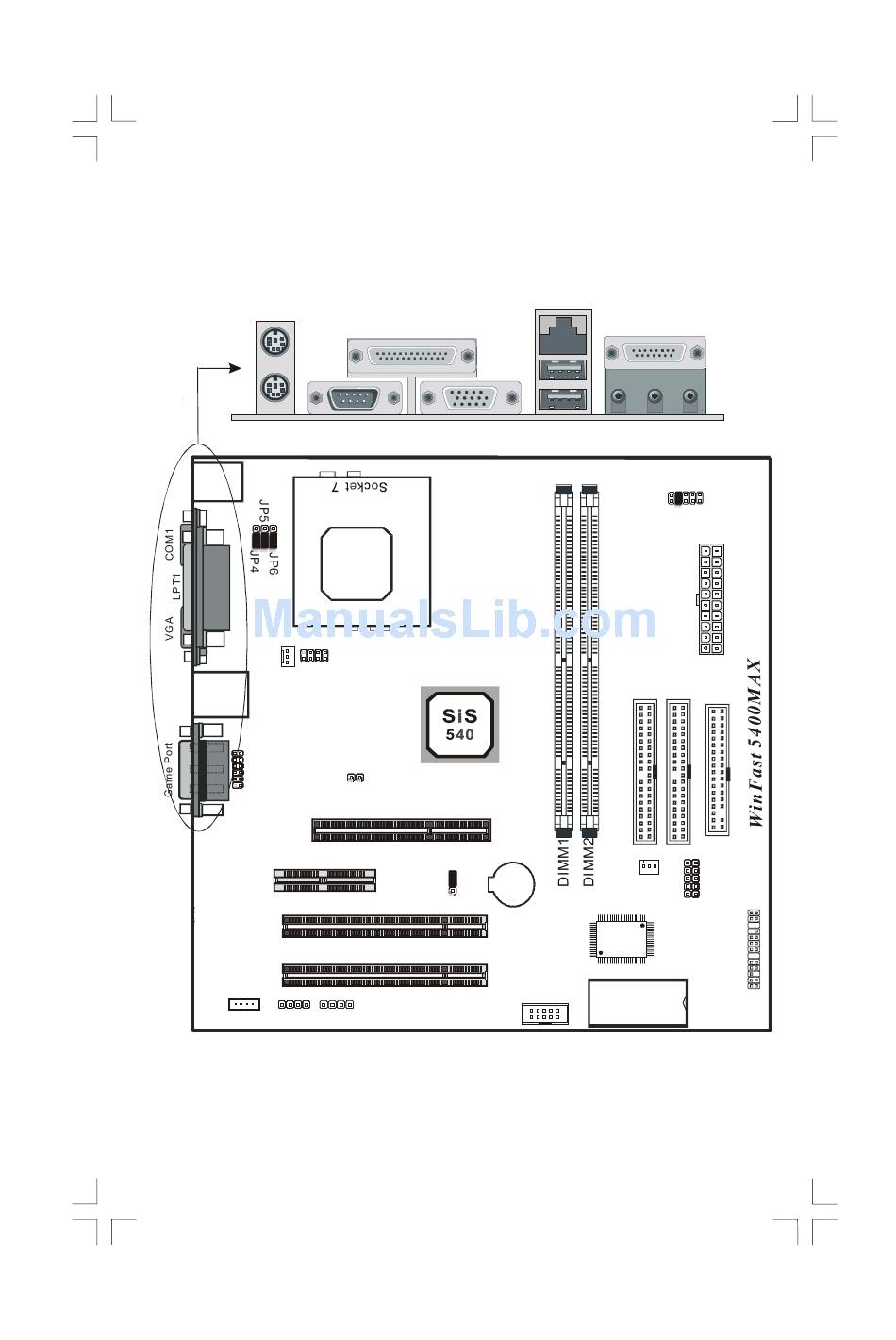

WinFast 5400MAX Mainboard Layout

KB/MS
PS/2 Mouse
(Green)
PS /2 Keyboard COM1
(Purple)
(Turquoise)
KB/MS
JP7 RJ1
CPU
FAN
U6
USB1
AMR
JP19 JP20 JP21
LPT1
(Burgundy)
VGA
(Blue)
CPU
J1
ADIMM
JP 12
BAT TE RY
PCI_1
PCI_2
JP22
U6
(Black)
Game Port
(Gold)
USB1 Port
Line Out Line In MIC
USB2 Port (Lime) (Light Blue) (Pink)
JP2
ATX_PWR1
IDE1 IDE2
FLOPPY
1 1
IR CIR
JP10
SYS FAN
SiS
950
BIOS
