2.1.2

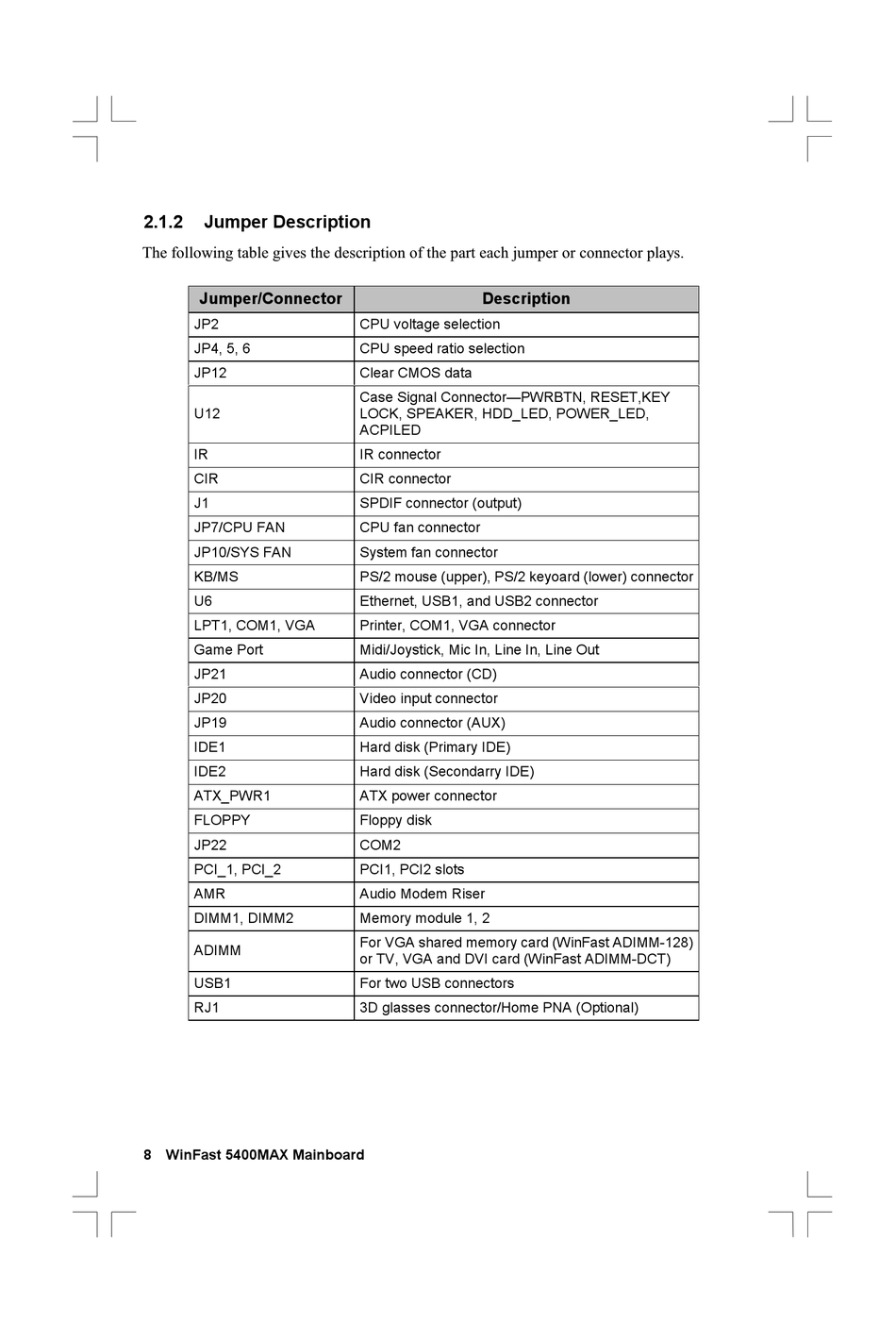

Jumper Description

Jumper/Connector
JP2
JP4, 5, 6
JP12
U12
IR
CIR
J1
JP7/CPU FAN
JP10/SYS FAN
KB/MS
U6
LPT1, COM1, VGA
Game Port
JP21
JP20
JP19
IDE1
IDE2
ATX_PWR1
FLOPPY
JP22
PCI_1, PCI_2
AMR
DIMM1, DIMM2
ADIMM
USB1
RJ1
8 WinFast 5400MAX Mainboard
Description
CPU voltage selection
CPU speed ratio selection
Clear CMOS data
Case Signal Connector—PWRBTN, RESET,KEY
LOCK, SPEAKER, HDD_LED, POWER_LED,
ACPILED
IR connector
CIR connector
SPDIF connector (output)
CPU fan connector
System fan connector
PS/2 mouse (upper), PS/2 keyoard (lower) connector
Ethernet, USB1, and USB2 connector
Printer, COM1, VGA connector
Midi/Joystick, Mic In, Line In, Line Out
Audio connector (CD)
Video input connector
Audio connector (AUX)
Hard disk (Primary IDE)
Hard disk (Secondarry IDE)
ATX power connector
Floppy disk
COM2
PCI1, PCI2 slots
Audio Modem Riser
Memory module 1, 2
For VGA shared memory card (WinFast ADIMM-128)
or TV, VGA and DVI card (WinFast ADIMM-DCT)
For two USB connectors
3D glasses connector/Home PNA (Optional)
