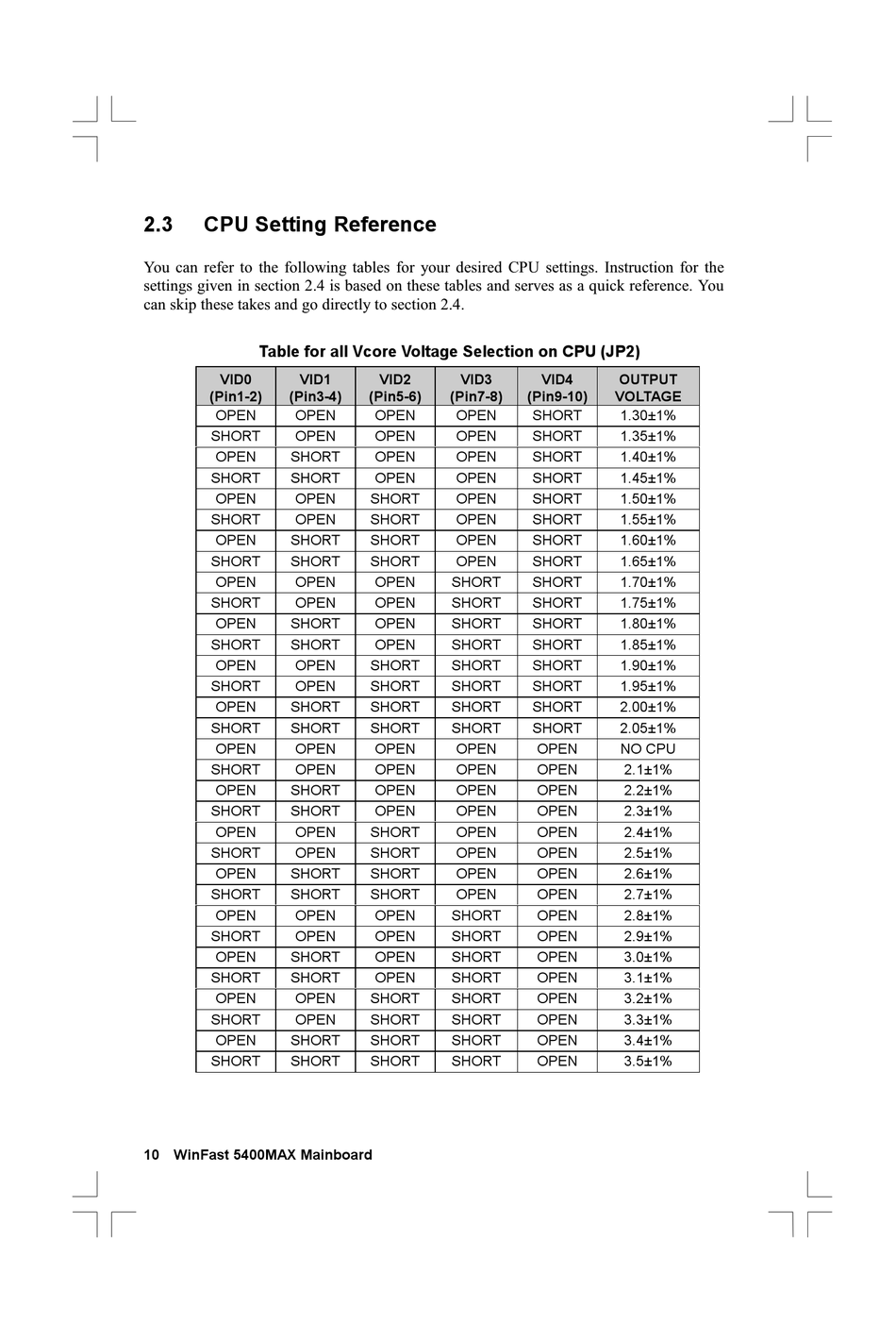

2.3

CPU Setting Reference

Table for all Vcore Voltage Selection on CPU (JP2)
VID0 VID1
(Pin1-2) (Pin3-4)
OPEN OPEN
SHORT OPEN
OPEN SHORT
SHORT SHORT
OPEN OPEN
SHORT OPEN
OPEN SHORT
SHORT SHORT
OPEN OPEN
SHORT OPEN
OPEN SHORT
SHORT SHORT
OPEN OPEN
SHORT OPEN
OPEN SHORT
SHORT SHORT
OPEN OPEN
SHORT OPEN
OPEN SHORT
SHORT SHORT
OPEN OPEN
SHORT OPEN
OPEN SHORT
SHORT SHORT
OPEN OPEN
SHORT OPEN
OPEN SHORT
SHORT SHORT
OPEN OPEN
SHORT OPEN
OPEN SHORT
SHORT SHORT
10 WinFast 5400MAX Mainboard
VID2 VID3
(Pin5-6) (Pin7-8) (Pin9-10)
OPEN OPEN SHORT
OPEN OPEN SHORT
OPEN OPEN SHORT
OPEN OPEN SHORT
SHORT OPEN SHORT
SHORT OPEN SHORT
SHORT OPEN SHORT
SHORT OPEN SHORT
OPEN SHORT SHORT
OPEN SHORT SHORT
OPEN SHORT SHORT
OPEN SHORT SHORT
SHORT SHORT SHORT
SHORT SHORT SHORT
SHORT SHORT SHORT
SHORT SHORT SHORT
OPEN OPEN OPEN
OPEN OPEN OPEN
OPEN OPEN OPEN
OPEN OPEN OPEN
SHORT OPEN OPEN
SHORT OPEN OPEN
SHORT OPEN OPEN
SHORT OPEN OPEN
OPEN SHORT OPEN
OPEN SHORT OPEN
OPEN SHORT OPEN
OPEN SHORT OPEN
SHORT SHORT OPEN
SHORT SHORT OPEN
SHORT SHORT OPEN
SHORT SHORT OPEN
VID4 OUTPUT
VOLTAGE
1.30±1%
1.35±1%
1.40±1%
1.45±1%
1.50±1%
1.55±1%
1.60±1%
1.65±1%
1.70±1%
1.75±1%
1.80±1%
1.85±1%
1.90±1%
1.95±1%
2.00±1%
2.05±1%
NO CPU
2.1±1%
2.2±1%
2.3±1%
2.4±1%
2.5±1%
2.6±1%
2.7±1%
2.8±1%
2.9±1%
3.0±1%
3.1±1%
3.2±1%
3.3±1%
3.4±1%
3.5±1%
