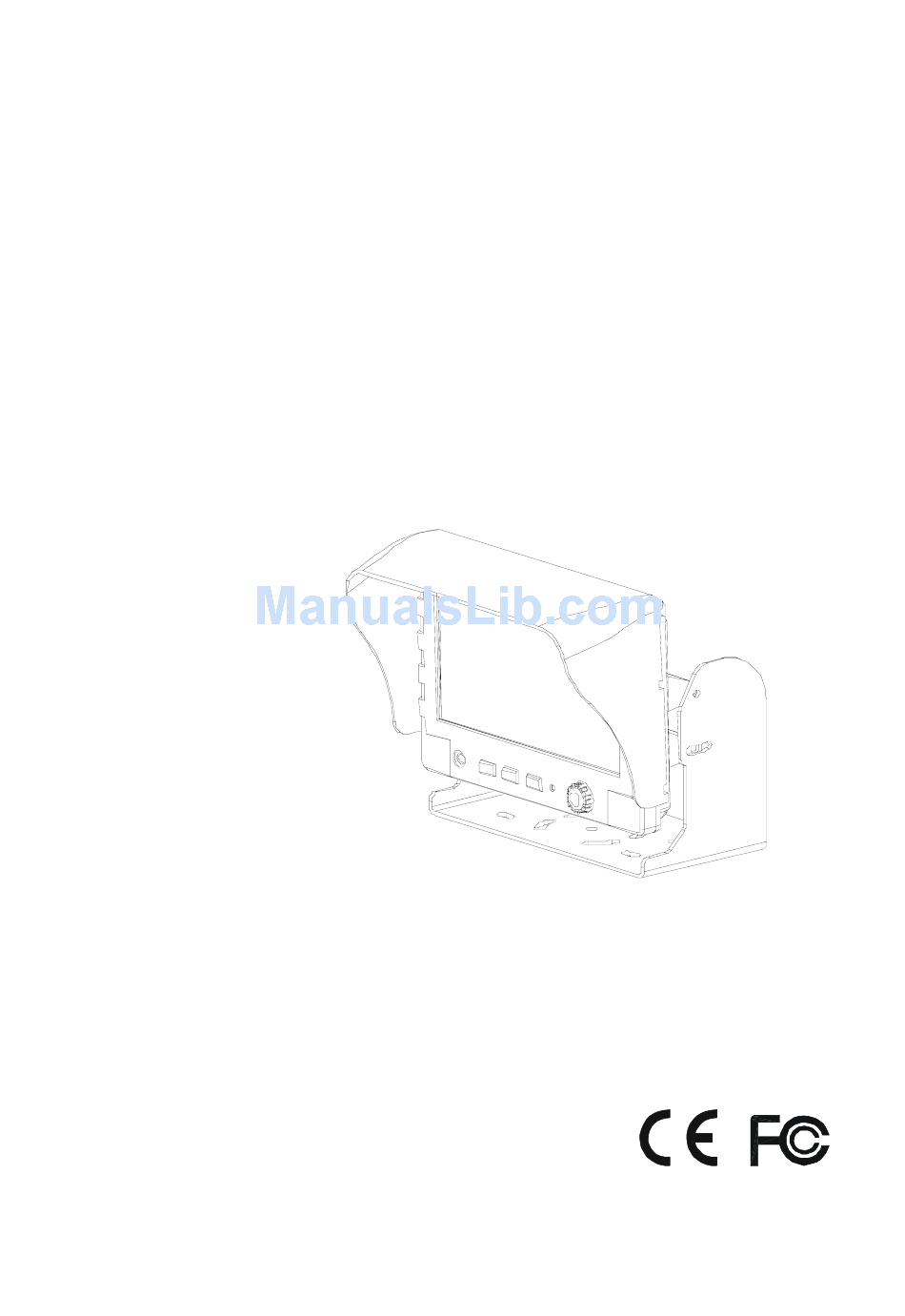

- Page 1 Thank you for purchasing our product. Please read this User’s Manual before using the product. Change without Notice 7” (Q)TFT LCD MONITOR USER MANUAL...
-
Page 2: Safety Precaution
SAFETY PRECAUTIONS Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Table Of Contents
CONTENT TABLE Safety Precaution.……..……………………………………………………………… Content Table….….…………………………………………………………………… Feature….……………………………………………………………………………… 1. Package Contents…….…………………………………………………………. 2. TFT Installation…………………………………………………………………… 3. Signal Cable Description……..…………………………………………………. 4. Control Cable Description……..………………………………………………… 5. Front Panel Control.……………………………………………………………… OSD Menu ………………………..…..………………………………………….. Display……………………………………………………………………………. OSD Display……………………………………………………………………… Camera……………………………………………………………………………. Recall………………………………………………………………………………. 15 Exit…………………………………………………………………………………. 6. Vehicle Installation ………………………….…………………………………… 7. Specification…..…………………………………………………………………. 8. -
Page 4: Feature
Feature Support up to 4 CCD Camera inputs (Mini din connector) Extra RCA input for multimedia (VCD, DVD, Game device) Provide 2 Video / 1 Audio Signal Output Support Single / Dual / Quad Picture Signal Trigger for Side / Rear View OSD Control for Individual Normal / Mirror Camera Image Auto Day &... -
Page 5: Package Contents
1. Package Contents Item Qty. 1. 7” LCD Monitor 2. Sun-hood 3. Mounting Bracket 4. Accessories 5. Control Cable 6. User Manual... -
Page 6: Tft Installation
2. TFT Installation Step 1 Check the package and make sure all parts are included Step 2 Clip the sun-hood on to the monitor Step 3 Make sure it is installed properly Step 4 Install the monitor on to the bracket Step 5 Adjust the monitor to an appropriate / comfortable viewing angle before tightening the screws... -
Page 7: Signal Cable Description
3. Signal Cable Description CAM-B CAM-R C AM-C CAM-A AV VIDEO IN Yel lo w colo r li ne LIVE V IDEO OUT Wh it e co lor li n e LIVE AUDI O O UT Blac k c olo r li ne AV AU DIO I N Red color l ine CAM OUT... - Page 8 Mini Din Pin Assignment * Type 1 (Standard): 1. ----- 4. GND 2. ----- 5. +12V 3. Audio 6. Video (Optional) *Type 2 1. GND 4. +12V 2. ------ 5. ------- 3. Video 6. Audio Function of the Audio Cam A + Cam B No Audio Function Cam A No Audio Function...
-
Page 9: Control Cable Description
4. Control cable Description RIGHT O ran ge col or li ne G ND B lack color l i n e PAR K White colo r li ne POWER Red color li ne LEFT Yell ow col or line R ev ers e Blu e co lor li n e WIRE COLOR FUNCTION... -
Page 10: Front Panel Control
5. Front Panel Control POWER Press the power button to activate the monitor or to keep the monitor under stand by mode. SOURCE With power on press this button to select image sequence CAM A+B CAM C+R CAM A CAM B CAM C CAM R CAM A+B…, With pull hand break, press this button to select image sequence AV CAM A+B CAM C+R CAM A CAM B CAM C CAM R AV…... -
Page 11: Osd Menu
OSD MENU 1. Press the MENU button to enter to the OSD Menu 2. Turn the MENU button left or right to select the setting you wish to proceed. The color of the content will turn YELLOW to identify your selection. 3. -
Page 12: Display
DISPLAY The display set up contains different setting for the TFT: BRIGHTNESS Provide adjustment for the overall picture shade and brightness of TFT display. Setting value from 0 ~ 31. Default value at “16”. CONTRAST Provide adjustment for the contrast level of the TFT display between the light and dark areas. -
Page 13: Osd Display
OSD DISPLAY The OSD DISPLAY set up contains the on screen identification and the activation of the distance gauge. DISPLAY DISTANCE GAU GE RETUR N Menu Ju mp S ourc e P o wer DISPLAY Set “ON” to show the source of video input on screen or “OFF” to keep it invisible. -
Page 14: Camera
CAMERA C AM A MIR R OR C AM B C AM C C AM R JU MP C AM QUA D QU AD C AM OUT R ETU RN MIRROR Select “ON” to activate the mirror function for different cameras or “OFF” for a normal image. -
Page 15: Recall
CAM C Obtain image from camera C while pressing the JUMP button and press again to return to default screen. CAM R Obtain image from camera R while pressing the JUMP button and press again to return to default screen. CAM OUT Composite video loop out to recorder, monitor or other device Default as: QUAD... -
Page 16: Vehicle Installation
6. Vehicle Installation Camera Yellow Green a. Install Camera R (for rear view) b. Use a measuring tool to mark out the distance behind the vehicle. c. Adjust the viewing angle of the camera so that the distance gage shown from the TFT match to the distance marks behind the vehicle. -
Page 17: Specification
7. Specification Screen size 7 inch ( diagonal ) Active area 154.08(H) x 86.58(V) Pixel configuration 0.107 x 0.370 Resolution 1440(W) x 234 (H) Viewing angle UP:60° / Down:60° / Left: 60° / Right:60° Power source: DC9.6V ~DC32V Contrast ratio 300:1 Brightness 400 cd/m... -
Page 18: Attachment
8. ATTACHMENT Attachment 1: Dimension Chart...
