L C D D i s p l a y
A C D - 5 1 5 D

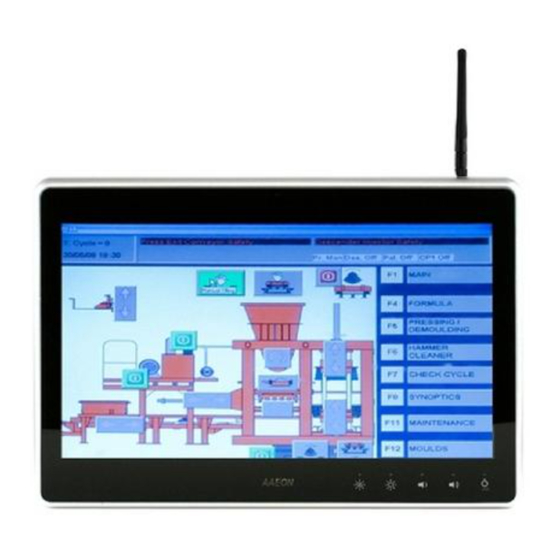

ACD-515D
15.6" WXGA Infotainment Touch Display
On Screen Display Control
IP-65 Front Bezel
Projected Capacitive Multi-Touch Screen
st
ACD-515D Manual 1
Ed
October 2011

Advertisement

Table of Contents
loading

Related Manuals for Aaeon ACD-515D

Summary of Contents for Aaeon ACD-515D

  • Page 1 L C D D i s p l a y A C D - 5 1 5 D ACD-515D 15.6” WXGA Infotainment Touch Display On Screen Display Control IP-65 Front Bezel Projected Capacitive Multi-Touch Screen ACD-515D Manual 1 October 2011...
  • Page 2 AAEON, assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 L C D D i s p l a y A C D - 5 1 5 D Acknowledgments ® ®  Intel is registered trademarks of Intel Corporation.  IBM, PC/AT, PS/2 are trademarks of International Business Machines Corporation. ®...
  • Page 4 The LCD monitor comes with the following standard parts shown as below. Check and make sure they are included and in good condition. If anything is missing or damaged, contact the dealer immediately.  ACD-515D  Utility CD-ROM Contains User’s Manual (in PDF format), Drivers and Utilities ...
  • Page 5 L C D D i s p l a y A C D - 5 1 5 D Safety & Warranty 1. Read these safety instructions carefully. 2. Keep this user's manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning.
  • Page 6 L C D D i s p l a y A C D - 5 1 5 D 14. If any of the following situations arises, get the equipment checked by service personnel: a. The power cord or plug is damaged. b.
  • Page 7 L C D D i s p l a y A C D - 5 1 5 D Below Table for China RoHS Requirements 产品中有毒有害物质或元素名称及含量 AAEON Display 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板...

  • Page 8: Table Of Contents

    L C D D i s p l a y A C D - 5 1 5 D Contents Chapter 1 General Information 1.1 Introduction..............1-2 1.2 Features ..............1-3 1.3 General Specification ..........1-4 1.4 Dimension ..............1-6 Chapter 2 Hardware Installation 2.1 Before Unpacking............
  • Page 9 L C D D i s p l a y A C D - 5 1 5 D The MENU Keys.............. 3-7 3.7 RGB Color- Submenu..........3-8 3.8 Language- Submenu..........3-9 3.9 Auto Config- Submenu..........3-10 3.10 Mode Resolution- Submenu Chapter...... 3-11 3.11 Exit Menu- Submenu..........

  • Page 10: Chapter 1 General Information

    L C D D i s p l a y A C D - 5 1 5 D Chapter General Information Chapter 1 General Information...

  • Page 11: Introduction

    L C D D i s p l a y A C D - 5 1 5 D 1.1 Introduction Thank you for purchasing of the Industry Display Panel TFT LCD monitor - a marvelous contribution of cutting-edge technology. The LCD monitor has been designed with serious thoughts to present the best performance for most applications.

  • Page 12: Features

    L C D D i s p l a y A C D - 5 1 5 D 1.2 Features  15.6” WXGA (1366 x 768) TFT LCD Display  Easy-To-Clean: Multi-Touch Window Design (Two-Point)  Easy To Maintain: USB Ports On Two Sides ...

  • Page 13: General Specification

    L C D D i s p l a y A C D - 5 1 5 D 1.3 General Specification  Type Color TFT 15.6" TFT LCD  Size  Construction Plastic front bezel and steel back chassis VESA/ Wallmount ...
  • Page 14 L C D D i s p l a y A C D - 5 1 5 D  Light >90% (Pure) transmission  Controller USB interface Environmental  Operating 32°F~ 104°F (0°C to 40°C) temperature  Storage -4°F~ 158°F (-20°C to 70°C) Temperature 5~90% @ 40°C, non-condensing ...

  • Page 15: Dimension

    L C D D i s p l a y A C D - 5 1 5 D 1.4 Dimension Chapter 1 General Information...

  • Page 16: Chapter 2 Hardware Installation

    L C D D i s p l a y A C D - 5 1 5 D Chapter Hardware Installation Chapter 2 Hardware Installation...

  • Page 17: Before Unpacking

    L C D D i s p l a y A C D - 5 1 5 D 2.1 Before Unpacking It is very important to place the LCD Display in a suitable environment.  The surface for placing the LCD Display should be stable and level.

  • Page 18: Connecting Power

    L C D D i s p l a y A C D - 5 1 5 D 2.2 Connecting Power To power on the LCD Display, use the provided AC-DC adapter and the power cord to connect to the power output socket of the monitor. Fasten the connector securely.

  • Page 19: Connecting To The Computer

    L C D D i s p l a y A C D - 5 1 5 D 2.3 Connecting to the Computer Turn off the computer and the LCD Display before connecting.  Use the Monitor-to-PC VGA、DVI cable to connect the LCD Display to your computer.

  • Page 20: Vga Port Connector

    L C D D i s p l a y A C D - 5 1 5 D 2.4 VGA Port Connector This DB-15 connector can be connected to the system via the external 15-pin DB-15 connector through the I/O from this unit. Signal Signal Green...

  • Page 21: Dvi Port Connector

    L C D D i s p l a y A C D - 5 1 5 D 2.5 DVI Port Connector Connecting a standard DVI-D connector through I/O port of this unit. This connector supports digital signals only Signal Signal N.C.

  • Page 22: Serial Port Connector For Touch Screen

    L C D D i s p l a y A C D - 5 1 5 D 2.6 Serial Port Connector For Touch Screen This pin definition of the connector will be referred when a touch screen has been installed. It must be connected to the RS-232 port of the PC.

  • Page 23: Mini Usb Connector For Touch Screen

    L C D D i s p l a y A C D - 5 1 5 D 2.7 Mini USB Connector For Touch Screen This pin definition of the connector will be referred when a touch screen has been installed. It must be connected to the Mini USB port of the PC.

  • Page 24: Vesa Wall Mounting

    L C D D i s p l a y A C D - 5 1 5 D 2.8 VESA Wall Mounting Mounting the LCD Display with UL Listed Wallmount Bracket only. The LCD Display can be mounted on a monitor arm or wallmount plate.
  • Page 25 L C D D i s p l a y A C D - 5 1 5 D VESA Mounting Holes To mount the LCD Display onto a monitor arm or wallmount plate, please follow the steps below. Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the monitor arm or wallmount plate.

  • Page 26: Chapter 3 On Screen Display Control

    L C D D i s p l a y A C D - 5 1 5 D Chapter On Screen Display Control Chapter 3 On Screen Display Control 3-1...

  • Page 27: On Screen Display (Osd) Board Description

    L C D D i s p l a y A C D - 5 1 5 D 3.1 On Screen Display (OSD) Board Description Buttons Description  Power Turn the monitor power ON or OFF.  Activate the OSD menu. Menu / Enter ...

  • Page 28: Osd Main Menu: Push The Menu Keys

    L C D D i s p l a y A C D - 5 1 5 D 3.2 OSD Main Menu: Push The MENU Keys Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu...

  • Page 29: Select Input Source

    L C D D i s p l a y A C D - 5 1 5 D 3.3 Select Input Source Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 On Screen Display Control 3-4...

  • Page 30: Contrast/ Brightness- Submenu

    L C D D i s p l a y A C D - 5 1 5 D 3.4 Contrast/ Brightness- Submenu Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 AMI BIOS Setup 3-5...

  • Page 31: Geometry Menu

    L C D D i s p l a y A C D - 5 1 5 D 3.5 Geometry Menu Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 On Screen Display Control 3-6...
  • Page 32 L C D D i s p l a y A C D - 5 1 5 D 3.6 Color Temperature- Submenu Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 AMI BIOS Setup 3-7...

  • Page 33: Rgb Color- Submenu

    L C D D i s p l a y A C D - 5 1 5 D 3.7 RGB Color- Submenu Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 On Screen Display Control 3-8...

  • Page 34: Language- Submenu

    L C D D i s p l a y A C D - 5 1 5 D 3.8 Language- Submenu Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 AMI BIOS Setup 3-9...

  • Page 35: Auto Config- Submenu

    L C D D i s p l a y A C D - 5 1 5 D 3.9 Auto Config- Submenu Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 On Screen Display Control 3-10...

  • Page 36: Mode Resolution- Submenu Chapter

    L C D D i s p l a y A C D - 5 1 5 D 3.10 Mode Resolution- Submenu Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 AMI BIOS Setup 3-11...

  • Page 37: Exit Menu- Submenu

    L C D D i s p l a y A C D - 5 1 5 D 3.11 Exit Menu- Submenu Available Key Functions Power On/Off the LCD Monitor Increase the gaguge value of the selected option Decrease the gaguge value of the selected option Slected to confirm Return to last menu Chapter 3 On Screen Display Control 3-12...

  • Page 38: Chapter 4 Touch Screen Driver Installation

    L C D D i s p l a y A C D - 5 1 5 D Chapter Touch Screen Driver Installation Chapter 4 Touch Screen Driver Installation...

  • Page 39: Introduction

    L C D D i s p l a y A C D - 5 1 5 D 4.1 Introduction The optional ACD-515D Series touch screen uses Projected Capacitive Multi-Touch technology to provide more accurate sensing capacity than other technologies. The touch screen is specially designed for infotainment environments, and has been approved by FCC Class A standards.
  • Page 40 L C D D i s p l a y A C D - 5 1 5 D 1-3. Select Terminal 1-4. Input Commandsu and System Password 2. Input commandcd Desktop Chapter 4 Driver Installation...
  • Page 41 L C D D i s p l a y A C D - 5 1 5 D 2-1 Input commandls (This is the lowercase L) 2-2 all files of desktop will appear in window. (Please copy the driver on desktop first.) 2-3 Input commandcd eGTouch_v1.00.0726.L-x32 Chapter 4 Touch Screen Driver Installation...
  • Page 42 L C D D i s p l a y A C D - 5 1 5 D 2-4 Input commandls (This is the lowercase L) 2-5 The information of the folder, “eGTouch_v1.00_0726.L-x32”, would appear in the window. 2-6 Input commandExecute Touch Driver Chapter 4 Driver Installation...
  • Page 43 L C D D i s p l a y A C D - 5 1 5 D 3. Reboot 4. Change the permission Input commandchmod /etc/eGTouchd.ini △ △ 5. Select Computer (You can modify the value of the Y axis to reverse action principle.) Chapter 4 Touch Screen Driver Installation...
  • Page 44 L C D D i s p l a y A C D - 5 1 5 D 6. Select “File System” 7. Select the “etc” folder 8. Select the “eGTouchd.ini” file Chapter 4 Driver Installation...
  • Page 45 L C D D i s p l a y A C D - 5 1 5 D 9. Select “Display” 10. Modify the value of “Direction” from 0(default)2(setting) Chapter 4 Touch Screen Driver Installation...
  • Page 46 L C D D i s p l a y A C D - 5 1 5 D 11. Execute “Save” Note: If you want to change X or Y axis, please refer to the description of “Direction” as red circle below. 12.
  • Page 47 L C D D i s p l a y A C D - 5 1 5 D 13 . Input command./eGTouch (Execute Driver) and select the file of “eGTouch32”. 13-1. Input command./EventTest (Execute AP) 14. Draw and test (Drawing、Writing) 15.
  • Page 48 L C D D i s p l a y A C D - 5 1 5 D 16. Reboot 4-11 Chapter 4 Driver Installation...
