ZISW/B360DX
GE Monogram
Water Filter
Dimensions and Installation Information (in inches)
Customization Basics: Framed or Overlay Panels, Custom Handles and Accessory Kits
Trimmed Refrigerators
ZIS360NXSS, ZISW360DXSS, ZISB360DXSS
Trimmed refrigerators are designed to be customized with
decorative panels. Field-installed custom door and grille
panels are required.

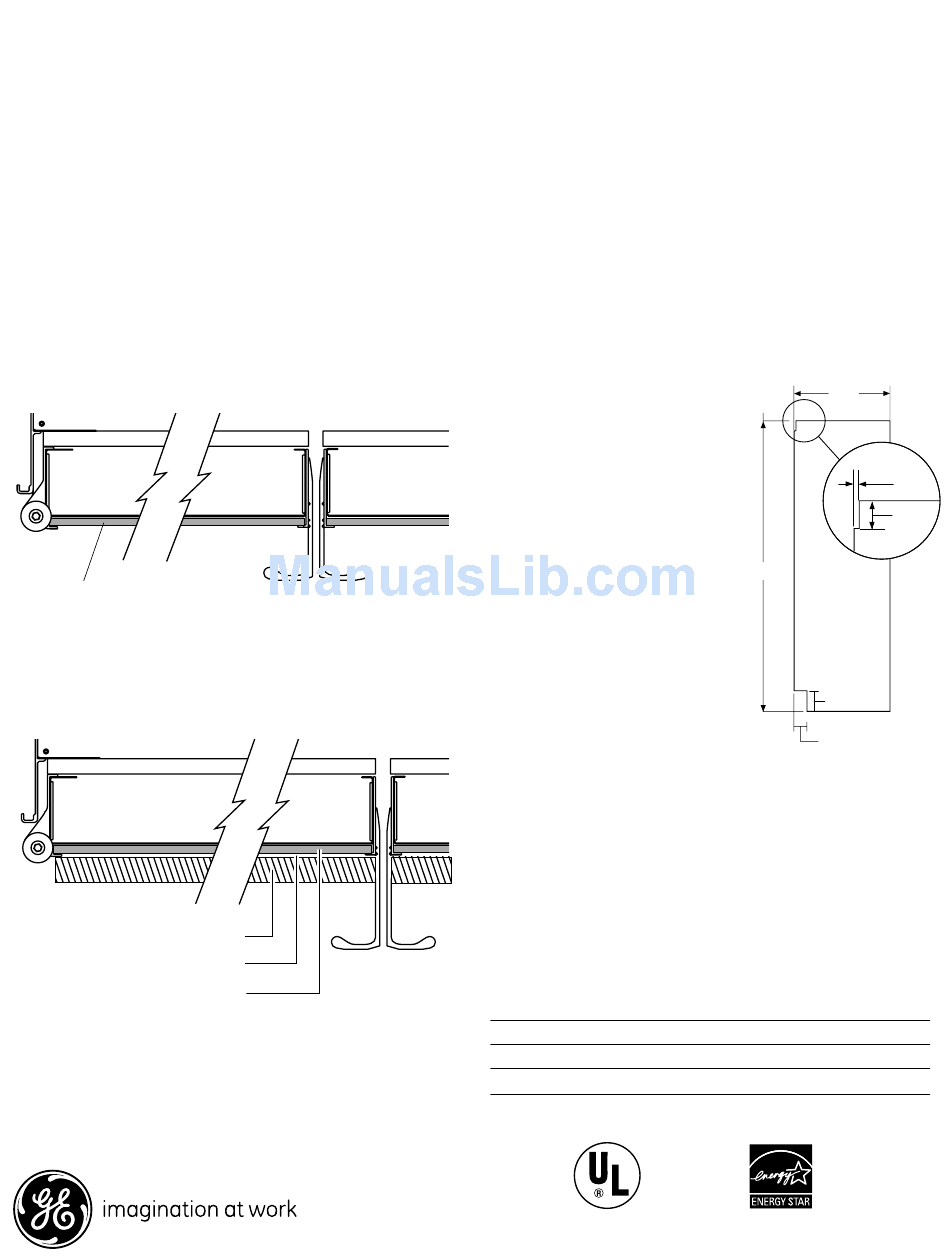

Framed Panels
You may install 1/4"-thick custom panels from your cabinet
manufacturer. The decorative panels slide into the factory-
installed trim. Or, order black, white and stainless steel
accessory panels from your Monogram dealer.
Framed Panel
Standard supplied handles shown in 1/4" panel position.
Overlay Panels
You may also choose to install custom overlay panels from
your cabinet manufacturer. This design provides a seamless
appearance which integrates smoothly with surrounding
cabinetry.
605Dia6
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
Standard supplied handles shown in 3/4" overlay panel position.
For answers to your Monogram,
®
or GE
appliance questions, visit our website
at ge.com or call GE Answer Center
696Dia2
800.626.2000.
®
36" Built-In Side-by-Side Refrigerator with Dispenser and
®
™
GE Profile
®
service,
Door Handles
The supplied handles can be adjusted to accommodate both
framed or overlay panels. Custom handles of your choice,
supplied by your cabinet maker, can also be installed. If
desired, you may order ZKHSS2 Monogram stainless steel
tubular handle kit for overlay panels.
Side Panels
Side panels must be used whenever
the sides of the refrigerator will be
exposed. The 1/4" side panels will
slip into the side case trim. Secure
the panels to the refrigerator with
stick-on hook and loop fastener
strips. Order the side panels from the
cabinet manufacturer.
• Cut a notch in the top front corner
as shown to allow clearance for
corner keys in the front side trim.
Optional Accessory Kit
ZKHSS2: Tubular Stainless Steel handles designed to fit
3/4" overlay panels.
Accessory Panels
White or black acrylic and stainless steel accessory pan-
els are available from your Monogram supplier. Panels are
cut to size and ready to install. These panel kits must be
ordered separately.
White
Models
Acrylic
ZISW360D
ZPW360D
ZISB360D
ZIS360N
ZPW360N
Listed by
Underwriters
Laboratories
Specification Created 3/08
24"
*84"
*3" to 4"
2-9/16"
*Depending on installation height.
Black
Stainless
Acrylic
Steel
ZPS360D
ZPB360D
ZPS360D
ZPB360N
ZPS360N
