The DA-5900 features a variety of audio inputs and outputs. For
ideal sound quality, digital connections should be used for playback
and recording.
You will want to connect your TDK Audio CD Recorder to an external
device that will amplify the DA-5900's sound output. This device may be
a receiver, a mini-system or a boombox, for example.
If your receiver or mini-system has audio output jacks, you may want
to use it as an audio source for recording into your TDK Audio CD
Recorder. You can also connect many devices, including most CD
players and MiniDisc players directly to the DA-5900's inputs for
recording. You CANNOT connect a turntable directly to your CD
Recorder unless the turntable has a built-in preamplifier. (See the
Advanced Recording section for more information on recording
from a turntable.)
NOTE: Turn off the power of all your audio equipment before
making connections.
DIGITAL IN
DIGITAL IN
DIGITAL OUT
LINE IN
OPTICAL COAXIAL
OPTICAL COAXIAL
L
R
B
DIGITAL OUT
R
L
PLAY
DIGITAL OUT
(CD-R / MD / TAPE)
(CD,MD etc)

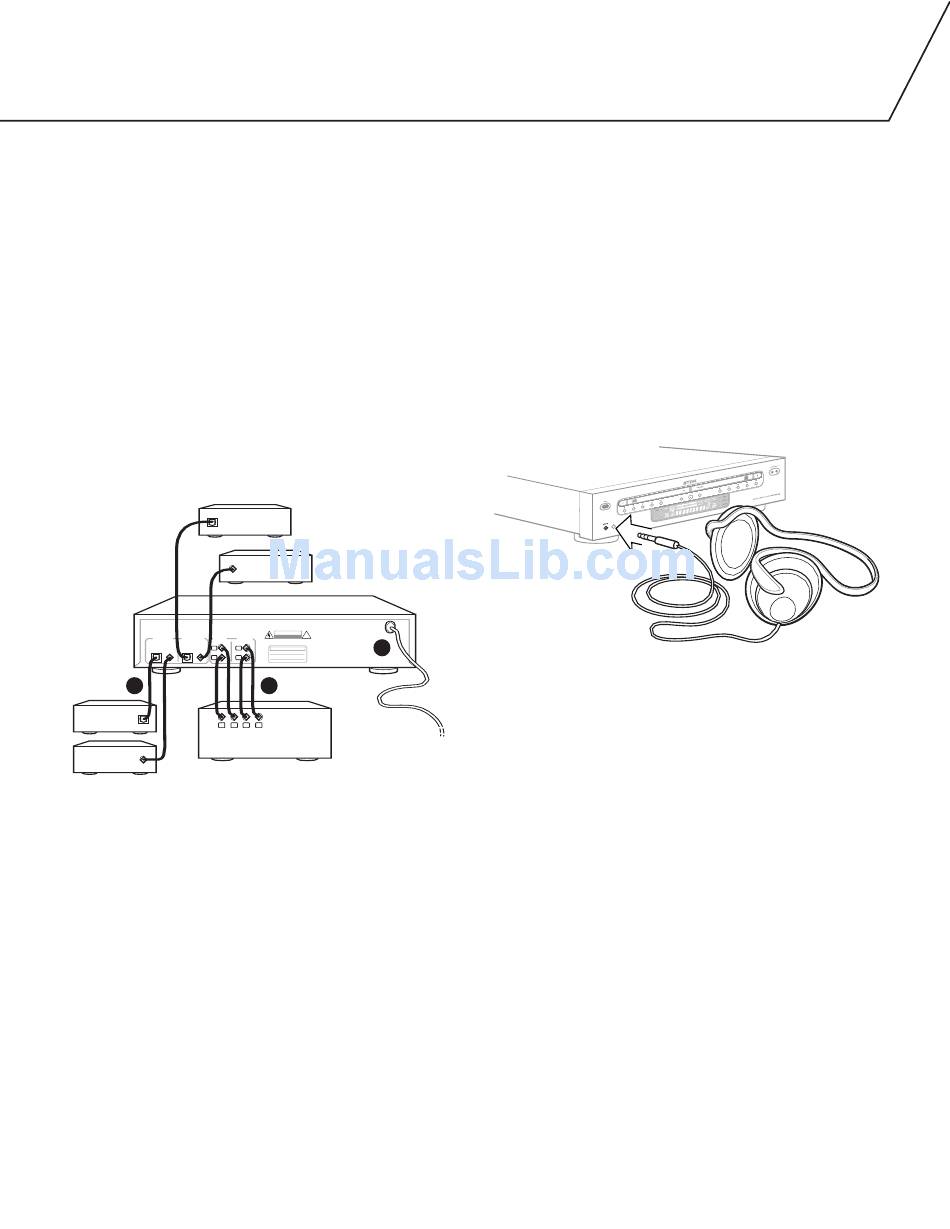

[A] LINE IN/LINE OUT
These analog jacks can be used for playback and recording. For
audio playback, connect an analog cable (RCA type) between the
DA-5700's line out jacks and the line in jacks on an amplification
device such as a receiver. For audio recording, connect an analog
cable (RCA type) between the DA-5900's line in jacks and the line
out jacks on a source device such as a receiver or a tape deck.
[B] DIGITAL IN/OUT
The DA-5900 has optical and coaxial digital jacks for playback and
recording. Both types of digital connections offer perfect signal
transfer for the highest quality audio.
For audio playback, connect a coaxial digital cable between the
DA-5900's coaxial digital out jack and the coaxial digital in jack on
an amplification device such as a receiver. Or connect an optical
digital cable between the DA-5900's optical digital out jack and
the optical digital in jack on a playback device such as a receiver.
(MD, Receiver, etc.)
DIGITAL IN
CAUTION
!
LINE OUT
C
L
R
A
R
L
REC

Connections

For audio recording, connect a coaxial digital cable between the
DA-5900's coaxial digital in jack and the coaxial digital out jack on
a source device such as a MiniDisc player or a stereo receiver. Or
connect an optical digital cable between the DA-5900's optical
digital in jack and the optical digital out jack on a source device
such as a MiniDisc player or stereo receiver. Note that the unit can
only receive input through one jack (optical or coaxial) at a time.
[C] AC POWER CORD
Plug the power cord into an AC wall outlet.
HEADPHONE LISTENING
To listen through headphones, plug headphones into the unit's
front-panel jack.
