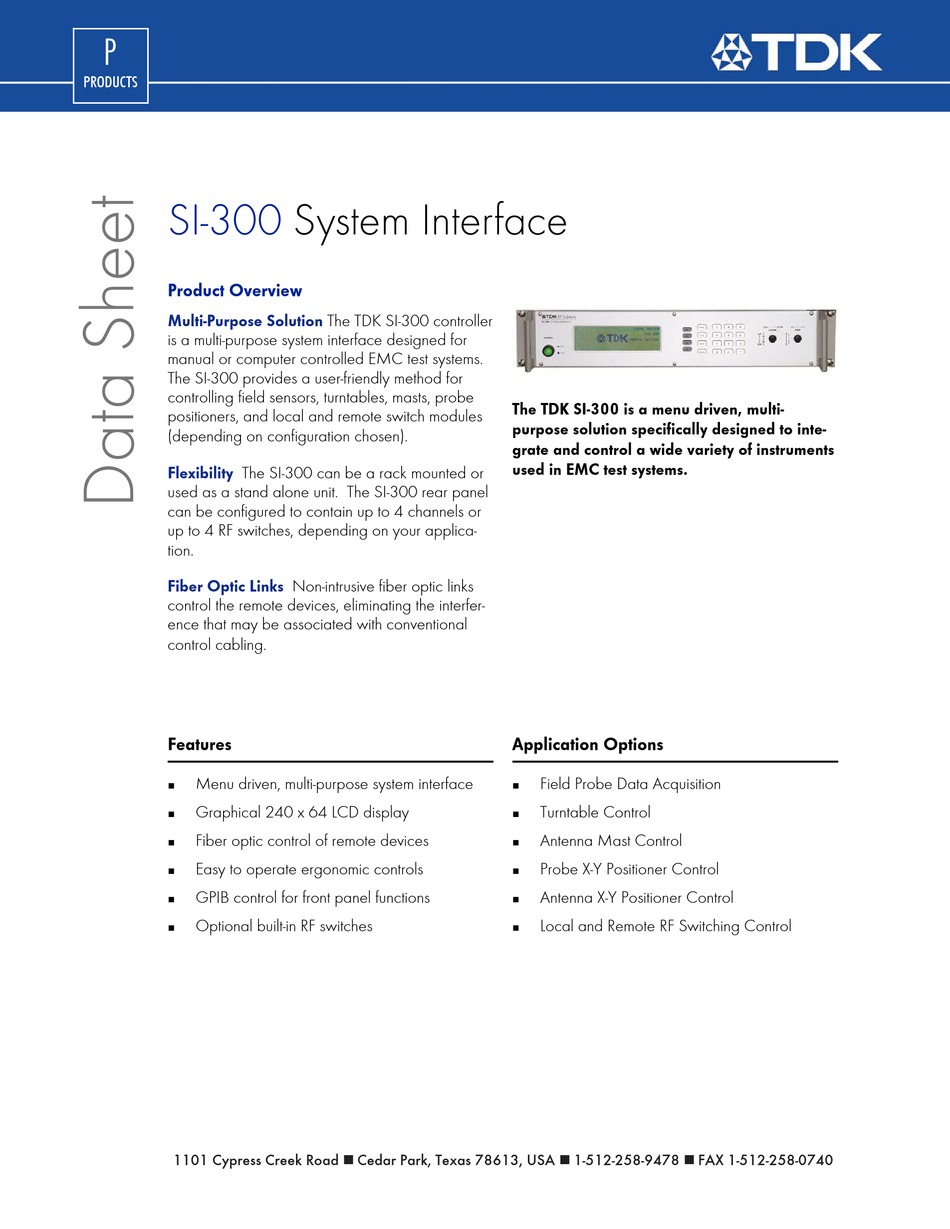

SI-300
Product Overview
Multi-Purpose Solution
is a multi-purpose system interface designed for
manual or computer controlled EMC test systems.
The SI-300 provides a user-friendly method for
controlling field sensors, turntables, masts, probe
positioners, and local and remote switch modules
(depending on configuration chosen).
Flexibility
The SI-300 can be a rack mounted or
used as a stand alone unit. The SI-300 rear panel
can be configured to contain up to 4 channels or
up to 4 RF switches, depending on your applica-
tion.
Fiber Optic Links
control the remote devices, eliminating the interfer-
ence that may be associated with conventional
control cabling.
Features
Menu driven, multi-purpose system interface

Graphical 240 x 64 LCD display

Fiber optic control of remote devices

Easy to operate ergonomic controls

GPIB control for front panel functions

Optional built-in RF switches

1101 Cypress Creek Road  Cedar Park, Texas 78613, USA  1-512-258-9478  FAX 1-512-258-0740
System Interface
The TDK SI-300 controller
Non-intrusive fiber optic links
The TDK SI-300 is a menu driven, multi-
purpose solution specifically designed to inte-
grate and control a wide variety of instruments
used in EMC test systems.
Application Options
Field Probe Data Acquisition

Turntable Control

Antenna Mast Control

Probe X-Y Positioner Control

Antenna X-Y Positioner Control

Local and Remote RF Switching Control

