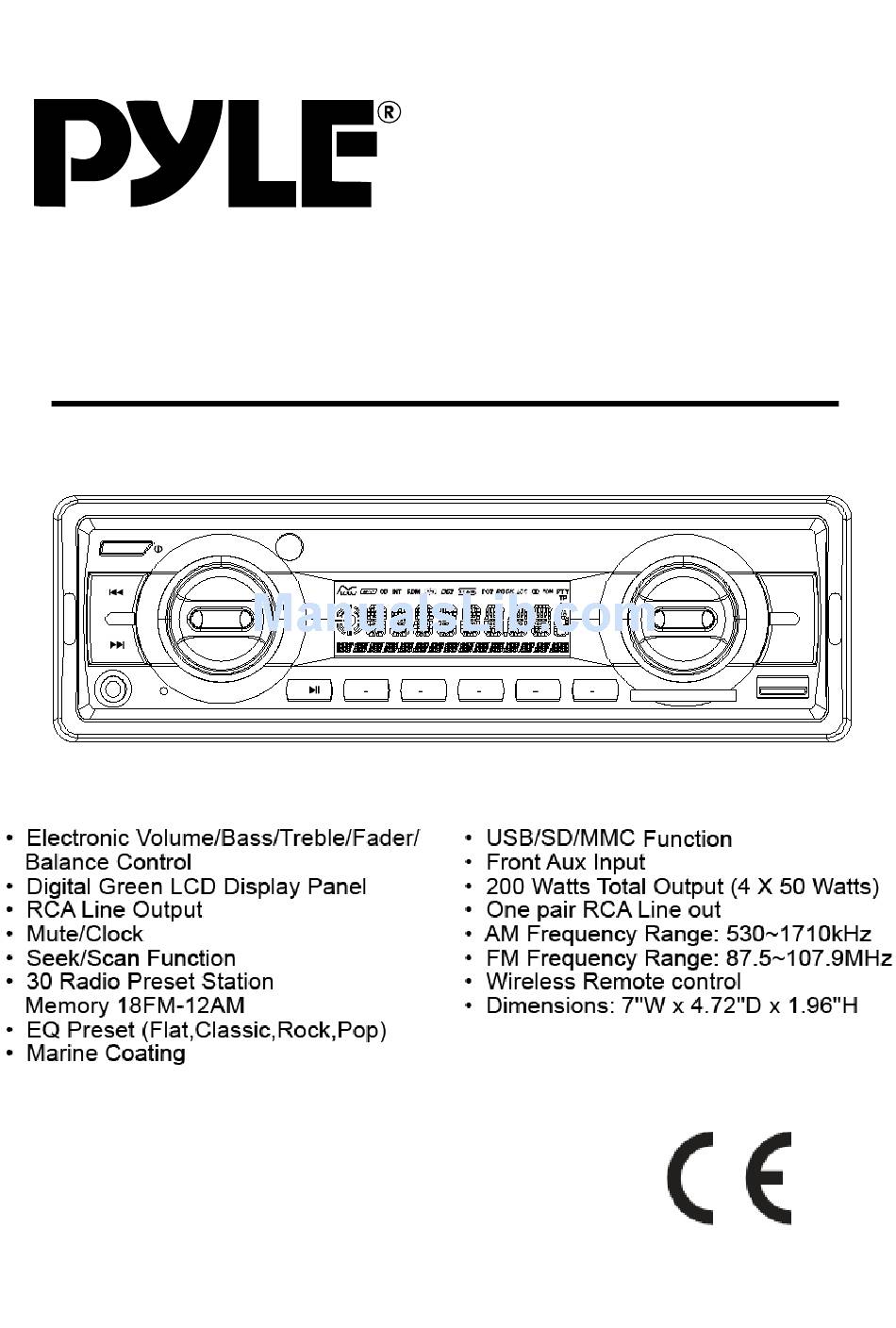

- Page 1 PLMR86B OWNER’S MANUAL Mobile Audio System 7 MOD VOL + AS/PS MUTE BAND DSP/0 VOL - DIR- DIR+ RESET www.pyleaudio.com...
-
Page 2: Table Of Contents
CONTENTS Automatic memory storing& Installation..........3 program scanning ......... 8 Take out screw before installation...3 Station storing........8 DIN Front-Mount (Method A) ....3 USB play operation ........8 Installing the unit........3 Supported MP3/WMA decoding modes Removing the unit .........4 ..............9 DIN Rear-Mount (Method B)....4 SD/MMC operation ........ -
Page 3: Installation
INSTALLATION Notes: Choose the mounting location where having an opening as shown below: the unit will not interfere with the normal driving function of the driver. 53mm Before finally installing the unit, connect the wiring temporarily and make sure it 182mm is all connected up properly and the Installing the unit... -
Page 4: Removing The Unit
INSTALLATION Spring Washer Hex Nut tabs behind the dashboard to secure the Metal Strap sleeve in place. Mounting Bolt Plain Washer Dashboard Tapping Screw Tabs Screwdriver Reconnect the cable to the vehicle battery’s negative (-) terminal. Then Sleeve replace the outer trim ring. 6. - Page 5 INSTALLATION Side View showing T, N Screw Screw Dashboard or Console Hook To fasten the unit to the factory radio mounting brackets. 1. Use a screwdriver to loose the hook’s screws on the front left and right sides of the unit and remove the hooks. 2.
-
Page 6: Wiring Connection
WIRING CONNECTION... -
Page 7: Operation
GENERAL OPERATION 6 7 8 7 MOD VOL + AS/PS MUTE BAND DSP/0 VOL - DIR- DIR+ RESET 17 16 15 Repeatedly press DSP button(8) to show SWITCHING ON/OFF THE UNIT the information as below: Press any button to turn on the unit. TIME->FREQ.->PTY->PS When the unit is on, Press and hold button (1) to turn the unit off. -
Page 8: Radio Operation
GENERAL OPERATION stations stored into corresponding preset number button. Press MUTE button (9) to mute down the sound instantly. If any button is pressed - Program scanning in the mute state, the mute state is Press AS/PS button (6) shortly to scan released. -
Page 9: Supported Mp3/Wma Decoding Modes
GENERAL OPERATION SD/MMC OPERATION or DIR button (13). There is a SD/MMC interface (12) on the front panel of the unit. PAUSING PLAYING When you insert a SD/MMC card in the Press PAU button (19) to pause playing. SD/MMC interface, the unit will search Press it again to resume playing. -
Page 10: Remote Control
REMOTE CONTROL HANDSET(OPTIONAL) FUNCTION KEY & CONTROL 1. POWER Power ON/OFF Button 2. MODE Mode Botton(S,T,U,7,For MP3/WMA Operation) 3. TUNE/SKIP Tune/SKIP Down Button(V,W,X,8 For MP3/WMA Operation) 4. 7/BND Band Select Button(When pressed shortly) 5. SCN Scanning Button(D,E,F,2 For MP3/WMA Operation) 6. -
Page 11: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 107 (D) x 50 (H) Tone Controls : ±10 dB Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) Maximum Output Power Version Y : 4x50 watts Current Drain... -
Page 12: Trouble Shooting
TROUBLE SHOOTING Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom Cause Solution The car ignition switch is If the power supply is No power. not on.
