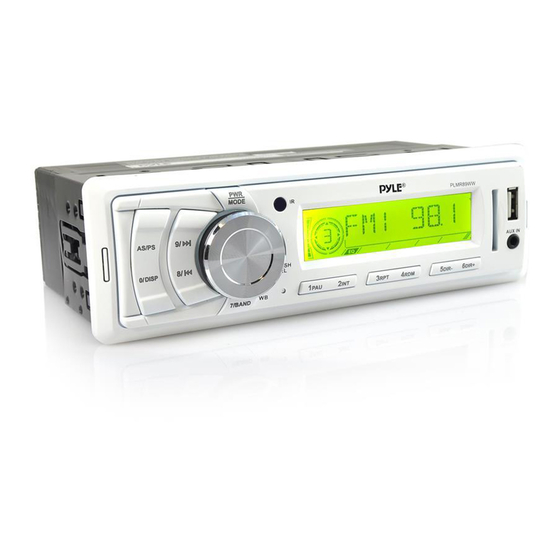

PLMR89WW
OWNER'S MANUAL
Mobile Audio System
 PLL Synthesizer Stereo Radio
 Automatic Memory Storing
 USB Interface
 SD Interface
 3.5mm input jack
 Weather Band function
www.pyleaudio.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLMR89WW and is the answer not in the manual?

Questions and answers

Summary of Contents for Pyle PLMR89WW

  • Page 1 PLMR89WW OWNER’S MANUAL Mobile Audio System  PLL Synthesizer Stereo Radio  Automatic Memory Storing  USB Interface  SD Interface  3.5mm input jack  Weather Band function www.pyleaudio.com...
  • Page 2: Table Of Contents

    CONTENTS Installation ........... 3 Take out screw before installation ..3 DIN Front-Mount ......... 3 Installing the unit ....... 3 Removing the unit ......4 Wiring Connection ......5 Operation ..........6 Location of keys ........6 Switching on/off the unit ......7 Sound adjustment .........
  • Page 3: Installation

    INSTALLATION Notes: Be sure you test all connections first, and  Choose the mounting location where then follow these steps to install the unit. the unit will not interfere with the 1. Make sure the ignition is turned off, and normal driving function of the driver.
  • Page 4: Removing The Unit

    INSTALLATION Screw (5x25mm) and Plain Washer) to attach the other end of metal strap to a solid metal part of the vehicle under the dashboard. This strap also helps ensure proper electrical grounding of the unit. Note to install the short threading terminal of the mounting bolt to the back of the unit and the other long threading terminal to the dashboard.
  • Page 5: Wiring Connection

    WIRING CONNECTION ISO CONNECTION...
  • Page 6: Operation

    OOPERATION LOCATION OF KEYS 1.AS/PS 11.5 DIR- 2.9/ 12.4 RDM 3.PUSH /SEL 13.3 RPT 4.PWR/MODE 14.2 INT 15.1PAU 5.IR 16.Reset button 6. LCD 17.7/BAND/WB 7.SD interface 18.8/ 8. USB interface 19.0/DISP 9.AUX IN 10.6 DIR+...
  • Page 7: Switching On/Off The Unit

    OPERATION DISP button the “MM” will flash. Press the SWITCHING ON/OFF THE UNIT to change the minute. Then press DISP button to confirm. Press PWR button (4) to turn on the unit. When the unit is on. Press and hold for 2 LIQUID CRYSTAL DISPLAY seconds to turn off the unit.
  • Page 8: Selecting Station

    OPERATION 2 button(21): 162.400MHz  SELECTING STATION 3 button(22): 162.475MHz Press 9/ button (2) or 8/ button 4 button(23): 162.425MHz (18) to activate automatic seek 5 button(24): 162.450MHz function. It will search up/down a station 6 button(25): 162.500MHz automatically. Press for 2 seconds until The next station is 162.525 MHz.
  • Page 9: Playing All Tracks In Random

    OPERATION CAUTION: Press 3 RPT button (13) to continuously When there are important files in the USB repeat the same file. Press it again to Device or SD card, do not connect it to the repeat all files. main unit to play, because any wrong PLAYING IN RANDOM ORDER operation may cause files loss.
  • Page 10: Remote Control

    REMOTE CONTROL (OPTIONAL) FUNCTION KEY & CONTROL Power ON/OFF Button. 2. VOL+ Volume up button. 3. BAND Band Select Button. 4. SEL Sound Mode Select Button Radio mode: seek/turn down station. MP3 mode: skip to the previous file or fast reverse 6.
  • Page 11: Specification

    SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground 7''W x 4.72''D x 1.98''H Chassis Dimensions Tone Controls : ±10 dB Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) Maximum Output Power : 4x50 watts Current Drain : 10Ampere (max.) RADIO...
  • Page 12: Trouble Shooting

    TROUBLE SHOOTING Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom Cause Solution The car ignition switch is power supply not on. connected to the car accessory circuits, but the engine is not No power.
