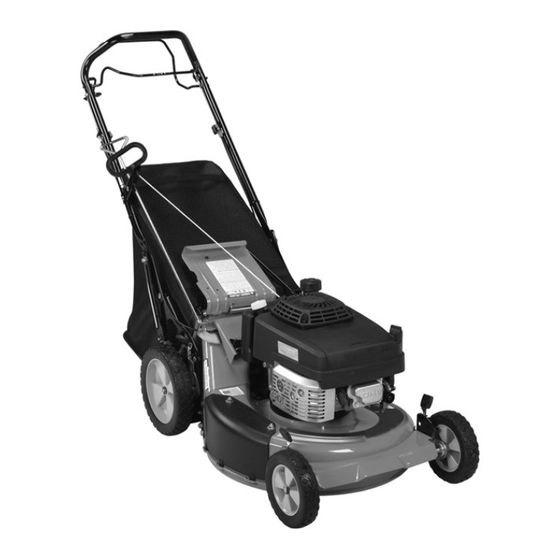

Ariens Classic LM 21 Illustrated Parts List
Parts list
Hide thumbs
Also See for Classic LM 21:
- Owner's/operator's manual (66 pages) ,
- Manual (32 pages) ,
- Owner's and operator's manual (28 pages)
Related Manuals for Ariens Classic LM 21
Summary of Contents for Ariens Classic LM 21
- Page 1 ILLUSTRATED PARTS LIST MODEL NUMBER LM 2152CMDAE PRODUCT NUMBER 961 41 02-42 MFG. ID. NUMBER 96141024200 437775 Rev. 2 03.01.12 BY...
- Page 2 ROTARY LAWN MOWER - - MODEL NUMBER LM 2152CMDAE (96141024200) PRODUCT NO. 961 41 02-42...
- Page 3 ROTARY LAWN MOWER - - MODEL NUMBER LM 2152CMDAE (96141024200) PRODUCT NO. 961 41 02-42 PART PART DESCRIPTION DESCRIPTION 532 18 45-76 Handle, Upper (Includes Foam Grip) 532 85 10-74 Washer, Hardened 532 19 60-05 Handle, Lower 532 85 02-63 Lockwasher, Helical Spring 3/8 532 40 54-16 Spring, Rear Door, RH...
- Page 4 ROTARY LAWN MOWER - - MODEL NUMBER LM 2152CMDAE (96141024200) PRODUCT NO. 961 41 02-42...
- Page 5 ROTARY LAWN MOWER - - MODEL NUMBER LM 2152CMDAE (96141024200) PRODUCT NO. 961 41 02-42 PART PART DESCRIPTION DESCRIPTION 532 43 31-60 Drive Control Assembly 532 43 26-70 Drive Cover Assembly (Includes Cable) (Includes Mounting Screw and Pushnut) 532 18 16-98 Screw, Phillips Head #10 x 5/8 812 00 00-58 E-Ring 7/16...
