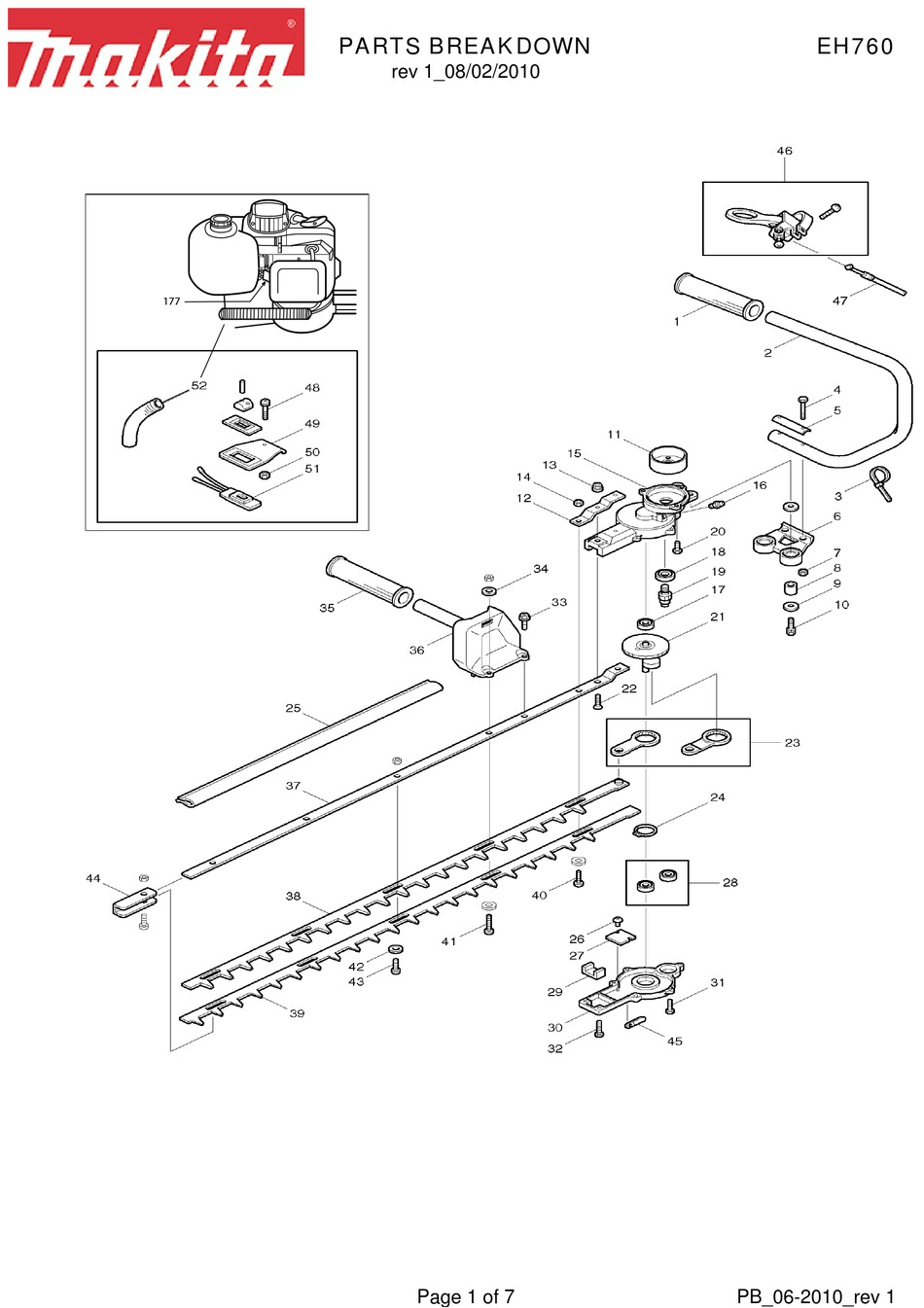

- Page 1 PARTS BREAKDOWN EH760 PARTS BREAKDOWN EM4251 rev 1_08/02/2010 Page 1 of 7 PB_06-2010_rev 1...
-
Page 2: Parts Breakdown
PARTS BREAKDOWN EH760 PARTS BREAKDOWN EM4251 rev 1_08/02/2010 Page 2 of 7 PB_06-2010_rev 1... - Page 3 PARTS BREAKDOWN EH760 PARTS BREAKDOWN EM4251 rev 1_08/02/2010 Page 3 of 7 PB_06-2010_rev 1...
- Page 4 GUIDE PLATE, EH760 030-10600-00 BLADE (UPPER), EH760 030-10700-00 BLADE (LOWER), EH760 008-24800-00 BLADE SLDING SCREW (L=22),EH561 008-24900-00 BLADE SLIDING SCREW (L-29), EH760 008-25000-00 BLADE SLIDING WASHER, EH561 008-24700-00 BLADE SLIDING SCREW (L=19) EH561 024-14500-00 END REINFORCER, EH760 056-60799-70 CLAMP, EH561...
- Page 5 Products with multiple versions are listed in subsiding order with the newest version on top not indented. Corresponding bulletins are attached. Select bulletin name or attachment to view. Tech Bulletin Fig. No. Part No. Description Q'ty Unit 136-11500-00 SWITCH STAY, EH760 150-05000-0K NUT M5, EH760 008-37300-00 SWITCH ASS'Y, EH760 Y04237 013-07045-0G...
- Page 6 PARTS BREAKDOWN EH760 PARTS BREAKDOWN EM4251 rev 1_08/02/2010 Products with multiple versions are listed in subsiding order with the newest version on top not indented. Corresponding bulletins are attached. Select bulletin name or attachment to view. Tech Bulletin Fig. No.
