Summary of Contents for Kuppersbusch IGV6609

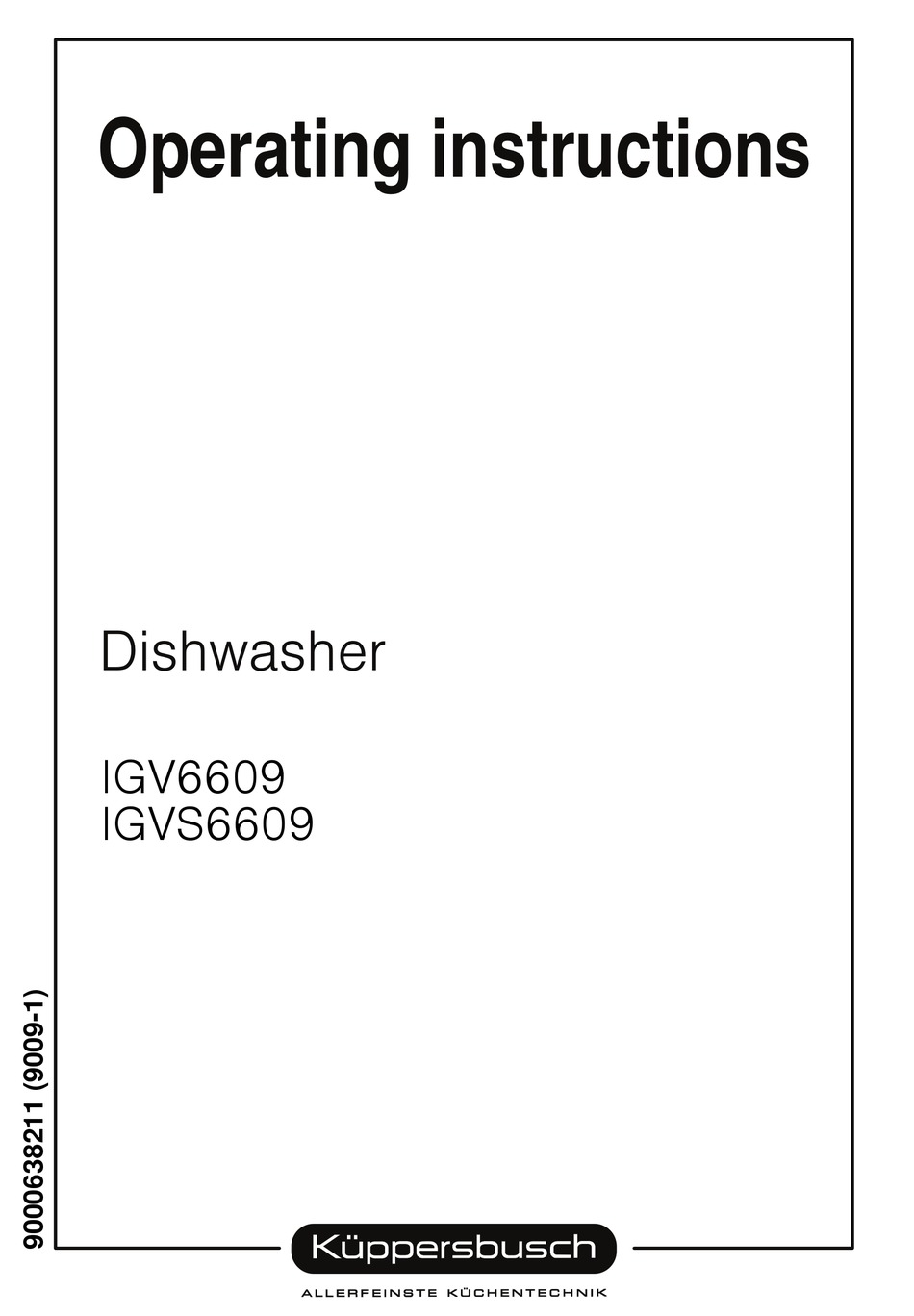

- Page 1 2SHUDWLQJ LQVWUXFWLRQV IGV6609 IGVS6609...
- Page 2 K PLQ 6WDUW...
-
Page 3: Table Of Contents
en Table of contents Safety instructions ....4 Washing the dishes ....15 Delivery . -
Page 4: Safety Instructions
ã= Safety instructions Warning Knives and other utensils with sharp points Delivery must be placed in the cutlery basket with the points downwards or horizontally on – Check the packaging and dishwasher immediately for damage caused in the knife shelf *. transit. -
Page 5: Getting To Know Your Appliance
Appliance interior ã= Warning 1" Interior light * Children could become locked in the 1* Top basket appliance (risk of suffocation) or find themselves in other dangerous situations. 12 Knife shelf * Therefore: Pull out the mains plug, sever 1: Tablet collecting tray and dispose of the power cord. -
Page 6: Water Softening System
Water hardness table Water softening system :DWHU +DUGQHVV PPROO 6HW YDOXH To ensure good washing results, the KDUGQHVV UDQJH RQ WKH dishwasher requires soft water, i.e. YDOXH PDFKLQH containing low amounts of lime, otherwise ƒ&ODUNH white limescale will be deposited on the ‡ ¯¯... -
Page 7: Special Salt
Switching off salt refill indicator/ Special salt $ water softening system If the salt refill indicator H is impaired Using special salt (e.g. when using combined detergents Always refill with special salt immediately containing salt component), it can be before switching on the appliance. This switched off. -
Page 8: Rinse Aid
Setting amount of rinse aid Rinse aid % The amount of rinse aid can be set from to : . Please set rinse aid on As soon as the rinse-aid refill indicator P to obtain very good drying results is lit on the fascia, there is still a rinse-aid is already set in factory). -
Page 9: Utensils
Unloading the dishwasher Utensils To prevent water from dripping off the upper basket onto the utensils in the lower Not suitable basket, it is recommended to empty – Cutlery and utensils made of wood. the appliance from the bottom up. –... -
Page 10: Cutlery Basket
Small accessories holder * Heavily soiled utensils (pans) should * depending on model be placed in the bottom basket. The more Light-weight plastic accessories, e.g. cups, powerful spray jet provides a better lids, etc. can be held securely in the small dishwashing result. -
Page 11: Adjusting The Height Of The Basket
Adjusting the height of the Top basket with side levers basket * – Pull out the top basket 1* out. * depending on model – To lower the basket, press in the left and then the right lever on the outside If required, the height of the upper utensils of the basket. -
Page 12: Detergent
Adding detergent Detergent – If the detergent dispenser 9* is still closed, press the lock 92 to open the You can use tablets as well as powder detergent dispenser. or liquid detergents for dishwashers, but Pour detergent into the dry detergent never use washing up liquid. -
Page 13: Combination Detergent
Notes If the utensils are only lightly soiled, slightly – You will obtain optimum rinsing less than the indicated amount and drying results by using solo of detergent is usually adequate. detergents and applying salt and rinse aid separately. Suitable detergents and care products can be purchased online via our website –... -
Page 14: Overview Of Programmes
Overview of programmes The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. Type of utensils Type of soiling Programme Possible additional Programme sequence options ¹ very adhesive burned- pots and pans, in or dried-on food non-sensitive... -
Page 15: Additional Options
Additional options Washing the dishes Programme data * depending on model Additional options can be set with the The programme data (consumption buttons h. values) can be found in the summary of instructions. They refer to normal Ÿ Express Wash/ Speed conditions and the water hardness set value : . -
Page 16: Optical Display While The Programme Is Running
Optical display while the Timer programming programme is running * You can delay the start of the programme in 1 hour steps up to 24 hours. * depending on model – Open the door. While the programme is running, a light –... -
Page 17: Automatic Switch Off
Automatic switch off after end of Switching off the appliance programme or interior light* Short time after the end of the programme: * depending on model – Open the door. – Switch off ON/OFF switch (. To save energy, the dishwasher can be automatically switched off 1 min or 120 –... -
Page 18: Changing The Programme
Changing the programme Maintenance and care When the START button )" has been pressed, the programme cannot be A regular inspection and maintenance of changed. your machine will help to prevent faults. The only way a programme can be This saves time and prevents problems. changed is by Cancel programme (Reset). -
Page 19: Filters
Filters Spray arms The filters 1Z keep large foreign objects Limescale and contaminants in the rinsing in the rinsing water away from the pump. water may block nozzles and bearings on the spray arms 1B and 1J. These foreign objects may occasionally block the filters. -
Page 20: Troubleshooting
Waste water pump Troubleshooting Large food remnants in the rinsing water not retained by the filters may block the The majority of faults which could occur in waste water pump. The rinsing water is daily operation can be rectified by the then not pumped out and covers the filter. -
Page 21: When The Appliance Is Switched On 21
... when the appliance is – Filter in the water supply blocked. switched on – Switch off the appliance and pull out the mains plug. The appliance does not start. – Turn off the tap. – The mains fuse has tripped. –... -
Page 22: During The Wash Cycle
... during the wash cycle White stains on the utensils/glasses remain milky. Unusual foam formation. If phosphate-free detergents are used with – Handwash liquid in the rinse aid hard tap water, white deposits may be dispenser. deposited more easily on utensils and Spilled rinse aid causes excessive the container walls. -
Page 23: Customer Service
Customer service Installation If the advice given does not resolve your The dishwasher must be connected problem, please contact your customer correctly, otherwise it will not function service. Contact details can be found on properly. The specifications for the inlet the back cover of this instruction manual and outlet as well as the electrical or in the enclosed customer service list. -
Page 24: Delivery
– After installing the appliance, ensure Installation that the plug is easily accessible. The required installation dimensions can – Some models: be found in the installation instructions. The plastic housing on the water Level the appliance with the aid of the connection contains an electric valve, height-adjustable feet. -
Page 25: Fresh Water Connection
Fresh water connection Setting hot water: – Open the door. – Connect the fresh-water connection to – Switch on ON/OFF switch (. the tap according to the installation instructions with the enclosed parts. – Hold down programme button # and press START button )"... -
Page 26: Removing The Appliance
Removing the appliance Waste disposal Also observe the sequence of worksteps here. Both the packaging of new appliances and – Disconnect the appliance from the the old appliances themselves contain power supply. valuable raw materials and recyclable materials. – Turn off the water supply. Please dispose of the individual parts –... - Page 27 &KLOGSURRI ORFN GRRU ORFN %DNLQJ VKHHW VSUD\ KHDG...
- Page 28 *9000638211* 9000638211 (9009-1) 640TV...
