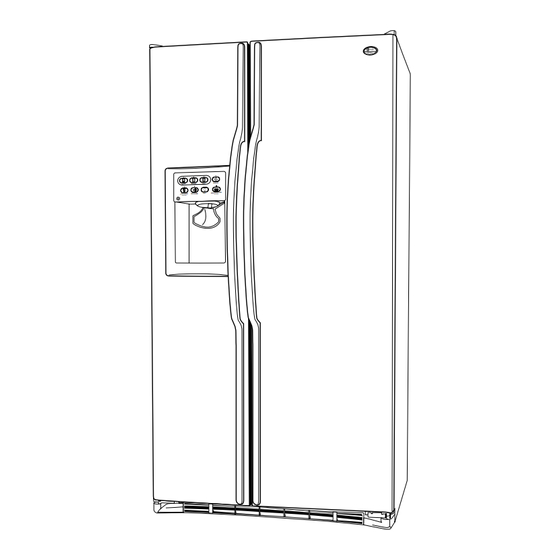

25.4 cu. ft. side-by-side refrigerator with dispenser.
Hide thumbs


Advertisement

TM
PSS25MGN - GE Profile
Dimensions (in inches)
A
B
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
Specification Created 11/01
Arctica
25.4 Cu. Ft. Side-By-Side Refrigerator with Dispenser
C
D
Top View
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
H
G
E
F
®
GE Profile
®
service, 800.626.2000.
Height with hinge (in.) A
Height without hinge (in.) B
Depth without Doors (in.) C
Depth with Doors (in.) D
Depth plus Handle with Doors Closed (in.) E
Depth with Doors open 90° (in.) F
Width with Doors Closed (in.) G
Width with Doors open 90° Less Door Handle(in.) H
Each side (in.)
Top (in.)
Back (in.)
Note: Add 9/16" for water hook-up. Hook-up fits in 5/8" back air clearance
when calculating installation depth.
If installed against a wall, allow clearance of 14-1/4" on freezer side to
remove bin.
To remove fresh food pans, remove door bins.
Clearance required to remove fresh food full-size pan without
disassembling: 19" (27 cu. ft.)
Plus, allow additional space for any necessary leveling adjustments.
or
Total volume and shelf
VOLUME and
area are calculated by the
SHELF AREA
Association of Home
Manufacturer Certified to
Appliance Manufacturers'
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
standards.
69-1/4
68-3/4
28
32-1/4
34-11/16
50-1/16
35-3/4
36
1/8
1
1
Listed by
Underwriters
Laboratories
As an ENERGY STAR
®
Partner,
R
GE has determined that this product
®
meets the ENERGY STAR
guidelines for energy efficiency.
