Fire Alarm Systems | D1218 Battery (12 V, 18 Ah)
D1218 Battery (12 V, 18 Ah)
www.boschsecurity.com

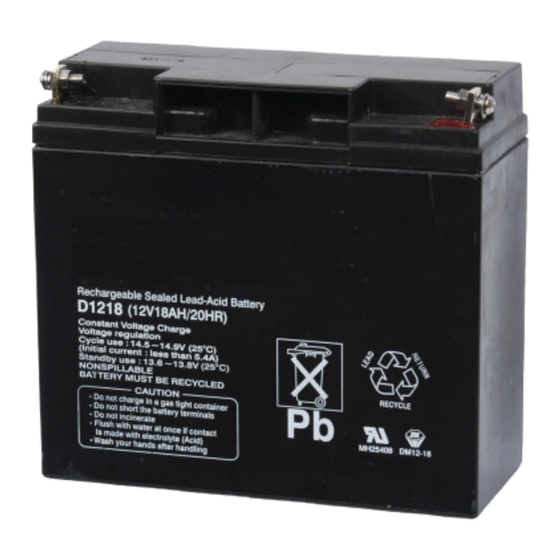

A 12 V sealed lead‑acid battery. It is a
maintenance‑free standby and auxiliary power supply
that provides long service life and dependability.
The battery is for use only with charging circuits
calibrated for lead‑acid batteries. It is suitable for
supplying backup power for fire, security, and access
control systems during AC power failures.
The D1218 must be mounted in a suitable enclosure to
accommodate its size. Not all control panel enclosure
configurations can accommodate the D1218. The
D1218 has two bolt‑fastened terminals and includes
hardware for attaching battery leads or spade
connectors.
Certifications and approvals
Region Certification
USA UL AOTX: Local Alarm Units (UL464,
UL609), APAW: Police Station Alarm
Units (UL365, UL464)
CSFM 7167-1615: 0100 CONTROL UNIT
(HOUSEHOLD)
12 VDC sealed lead-acid
u
Fully rechargeable
u
Maintenance‑free
u
For use with compatible control panels
u
For use as secondary power for accessory modules
u
Region Certification
CSFM 7165-1615: 0113 FIRE ALARM CON-
TROL UNIT (COMMERCIAL)
CSFM 7165-1615: 0119 FIRE ALARM CON-
TROL UNIT (COMMERCIAL)
Installation/configuration notes
Standby Power Requirements
Refer to the appropriate control panel installation
manual for information on calculating the standby
battery requirements for the system. Total continuous
and intermittent current requirements must not
exceed the amp hour capacity of the battery.
Technical specifications
Capacity: 12 V, 18 Ah
Compatible Panels: Compatible with all Bosch Security Systems'
panels but might require a separate
enclosure.
Dimensions: 18 cm x 8 cm (7 in. x 3 in.)
Height with Terminals: 18 cm (7 in.)
Weight: 6 kg (14 lb)
