Door Panel Dimensions - GE Profile Arctica CustomStyle PSI23NCP Dimension Manual

TM
PSI23NCP – GE Profile Arctica

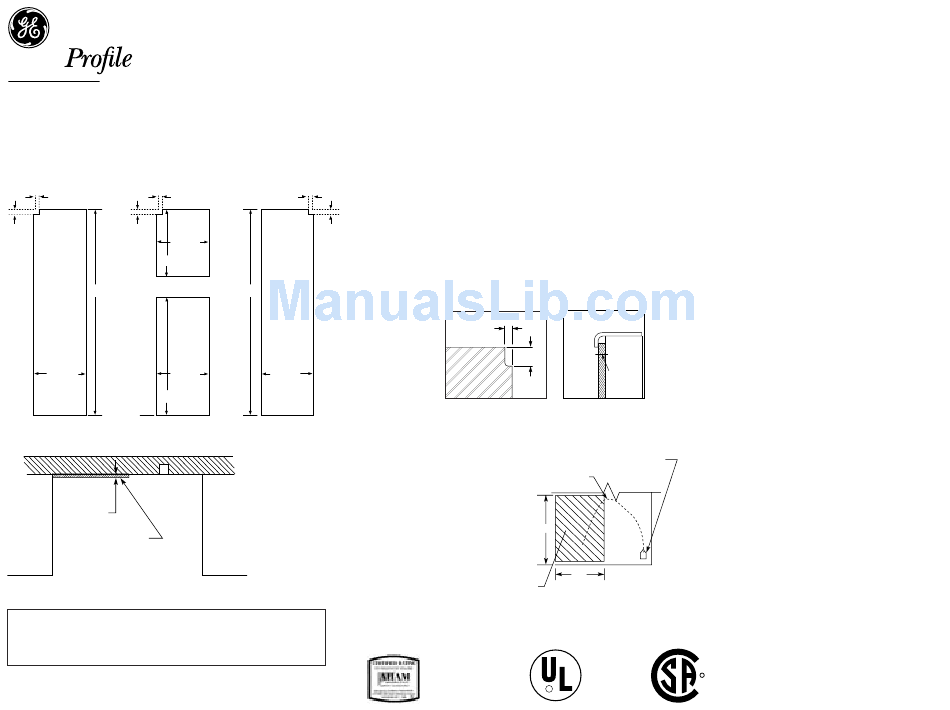

Door Panel Dimensions

Freezer Panel Freezer Panel
without Dispenser with Dispenser
Cut Cut
1/8 1/8
out out
5/16
5/16
14-15/32
17-7/8
67-9/32
FRONT FRONT
14-15/32 14-15/32
33-5/8
Installation of Water Outlets
1/2"
Alternate
water
line location
through floor
Top View
IMPORTANT: Before finalizing specifications for your GE Profile CustomStyle
Refrigerator, please NOTE:
• A minimum of 36" is required for refrigerator installation
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum
Specification Created 2/03
22.6 Cu. Ft. CustomStyle
™
Fresh Food
Panel
Cut
1/8
out
5/16
67-9/32
FRONT
19-15/32
Side-by-Side Refrigerator
™
Order your own custom wood panels to match cabinetry or other decor.
Panels up to 1/4" thick will fit door frame with no special preparation.
Add filler behind material thinner than 1/4" for proper fit.
Weight Limits: Total weight of panels (i.e., both freezer panels)—
Fresh Food = 38 lbs., Freezer = 28 lbs.
Note: Panels up to 3/4" will require special routing area around handles.
Dimensions may vary depending on depth of panel.
Detail C
Panels 1/4" thick
or less
1/8"
5/16"
(Fresh Food panel shown)
Notch required at top
corner as noted.
Recommended single loop
of 1/4" copper water line
Allow 48" minimum water
line to enable refrigerator 24"
to be pulled forward
18"
Recommended water line
location using recess
in rear wall
Rear Wall View
Total volume and shelf
area are calculated by the
Listed by
Association of Home Underwriters
Appliance Manufacturers' Laboratories
R
standards.
1/4" Max.
Water hook-up
on the refrigerator
