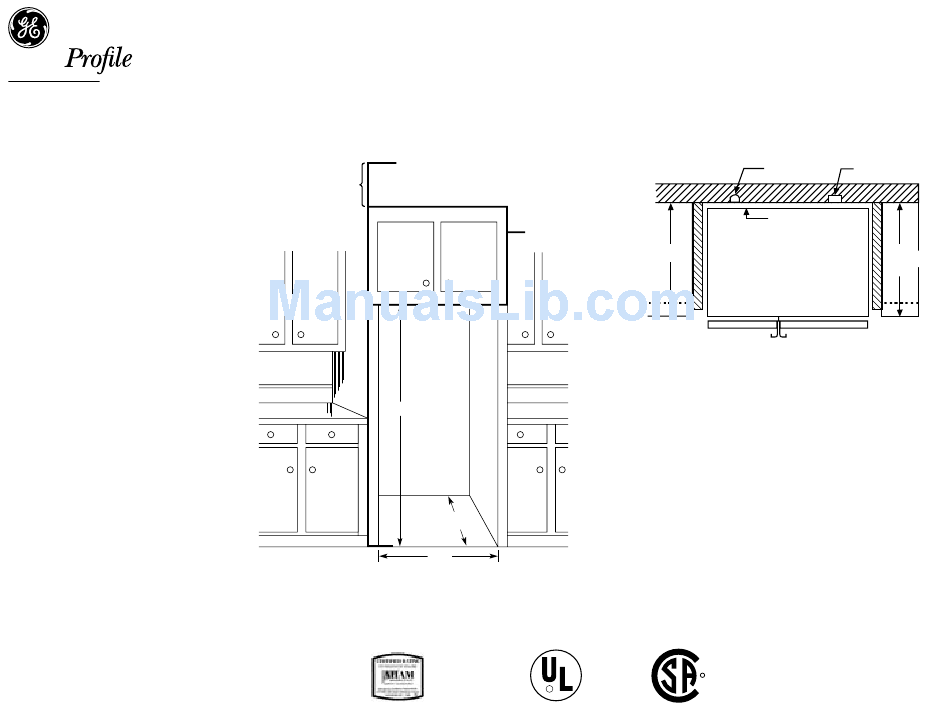

PSI23NCP – GE Profile Arctica

Rough-In Dimensions

Standard, New Construction
and Replacement Installation
Installation Tips to
Maximize the Built-In Look
• All wall/floor molding should
be removed prior to installation.
• Water recess on rear wall
recommended to prevent water
line damage. 48" minimum length,
1/4" diameter water line tubing
recommended.
• When possible, recess both copper
water line and electrical outlet.
(See local codes)
• Front and rear leveling legs are
adjustable for the built-in look.
(See owner's manual)
• If optional collar trim kit is to be
used or anticipated, see collar trim
installation on next page for
different rough-in dimensions.
Specification Created 2/03
22.6 Cu. Ft. CustomStyle
™
8' Ceiling
12"
Soffit
70-1/4"*
36"
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers'
standards.
Side-by-Side Refrigerator
™
13" to 14"
Cabinet
24"
Listed by
Underwriters
Laboratories
R
Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
