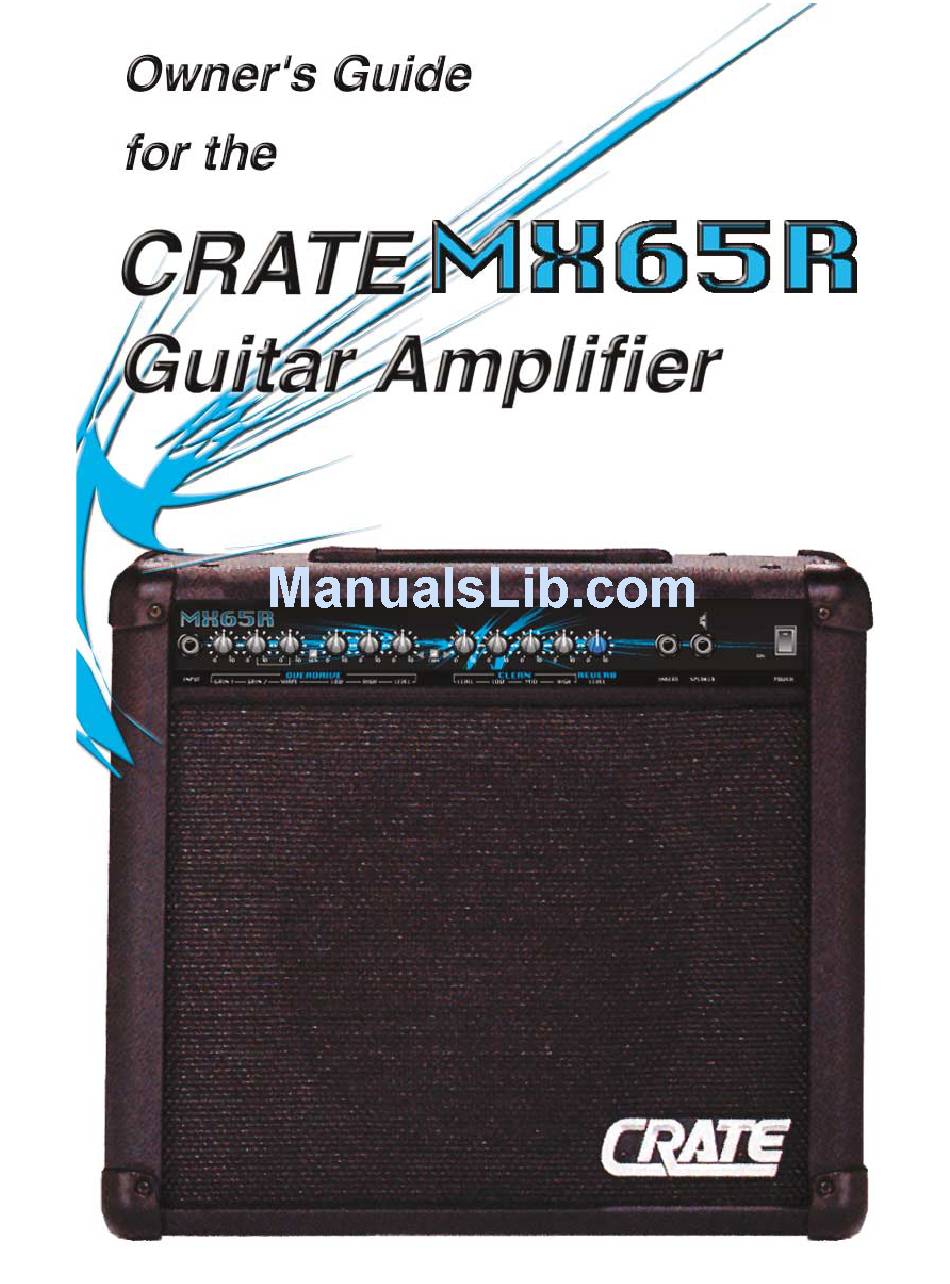

Summary of Contents for Crate MX65R
- Page 2 An insert jack allows virtually noise-free connection of your favorite effects. Like all Crate products, your MX65R is designed by musicians, and built using only the best components. Extensive testing confirms that this amplifier is the absolute best it can be.
- Page 3 Important Safeguards and Precautions: All Crate products are designed for continuous safe operation. Abiding by the following rules can help prevent damage to your amplifier, yourself and others. The amplifier is equipped with a three-pronged AC power cord. To reduce the risk of electrical shock, NEVER remove or otherwise attempt to defeat the ground pin of the power cord.
-
Page 4: The Front Panel
The Front Panel: 1: INPUT: Use this 1/4” jack to connect your guitar to the amplifier by means of a shielded instrument cable. OVERDRIVE CHANNEL: A high gain channel giving you sounds from a slight edge to serious overdrive. 2: GAIN 1: Use this control to adjust the amount of light distortion for the Overdrive channel. Gain 1 pro- duces less intense distortion than Gain 2 (#3) and is active when the Gain switch (#5) is in the out position. - Page 5 If the fuse opens, replace it ONLY with the same size and type. If fuses continue to fail, check the AC source – if the source is okay, contact your Crate dealer for service information.
- Page 6 Suggested Settings: Clean: Blues: Rhythm: Lead:...
- Page 7 System Block Diagram:...
- Page 8 17.5” H x 20” W x 11” D, 34 lbs. The MX65R is covered with a durable black Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
