Summary of Contents for Crate KXB100
- Page 1 KXB100 Keyboard Amplifier User’s Guide...
-
Page 2: Important Safety Instructions

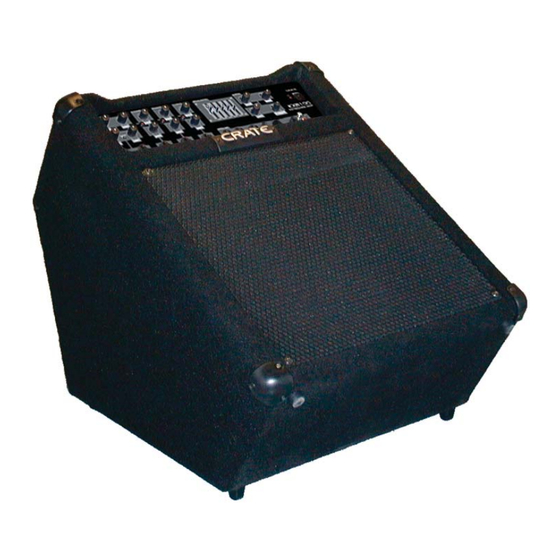

KXB100 Keyboard Amplifier Manufacturer’s Name: SLM Electronics Corporate Headquarters: 1901 Congressional Drive, St. Louis, Missouri 63146 Primary Production Facility: 700 Hwy 202 W, Yellville, Arkansas, 72687 Product Type: Audio Amplifier Products meet the regulations for compliance marking under: ETL standards UL6500, UL60065, or UL813 CSA standards E60065 or C22.2 No.1-M90... - Page 3 KXB100 Keyboard Amplifier Congratulations! You are now the proud owner of the Crate KXB100 keyboard amplifier. This ver- satile and great sounding amp features a 15” Crate Custom woofer and two LeSon dome tweeters housed in a ported tuned enclosure. Each of the four discreet chan- nels has its own level and reverb/effect control.
- Page 4 Rotating the control clockwise increases the low frequency output. 8. HIGH: Use this control to adjust the high frequency level of the Channel 1 signal. Rotating the control counterclockwise reduces the high frequency output. Rotating the control clockwise increases the high frequency output. KXB100 Keyboard Amplifier...
- Page 5 KXB100 Keyboard Amplifier 9. INPUT: Use this 1/4” jack to connect a keyboard or other line level signal to the corresponding channel by means of a shielded instrument cable. 10. EQUALIZATION: Use this five-band graphic equalizer to shape the output of the amplifier to best suit your tastes and to compensate for room acoustics.
- Page 6 KXB100 Keyboard Amplifier 19. PRE AMP OUT: Use this jack to send a high impedance unbalanced signal from the amplifier to another amplifier or recording device by means of a shielded signal cable. 20. POWER AMP IN: Use this jack to connect a line level signal directly into the internal power amp circuit.
-
Page 7: System Block Diagram
PEAK CHANNEL 2 INPUT LEVEL REV/ PEAK CHANNEL 3 INPUT LEVEL REV/ PEAK CHANNEL 4 INPUT LEVEL REV/ KXB100 Keyboard Amplifier PATCH BAY SEND REV/ MASTER BAL. LINE OUT/ HEADPHONES LEVEL CD INPUT RETURN EFFECT RETURN REVERB RETURN EQUALIZATION BAL. - Page 8 KXB100 Keyboard Amplifier KXB100 TECHNICAL SPECIFICATIONS: Maximum Signal Accepted Ch. 1 High Z: 10 volts peak to peak; Low Z: 15 volts peak to peak Ch.’s 2, 3 and 4: 10 volts peak to peak Input Power Requirements 115 VAC, 60Hz, 110VA...
