Summary of Contents for Crate RFX120 RetroFex

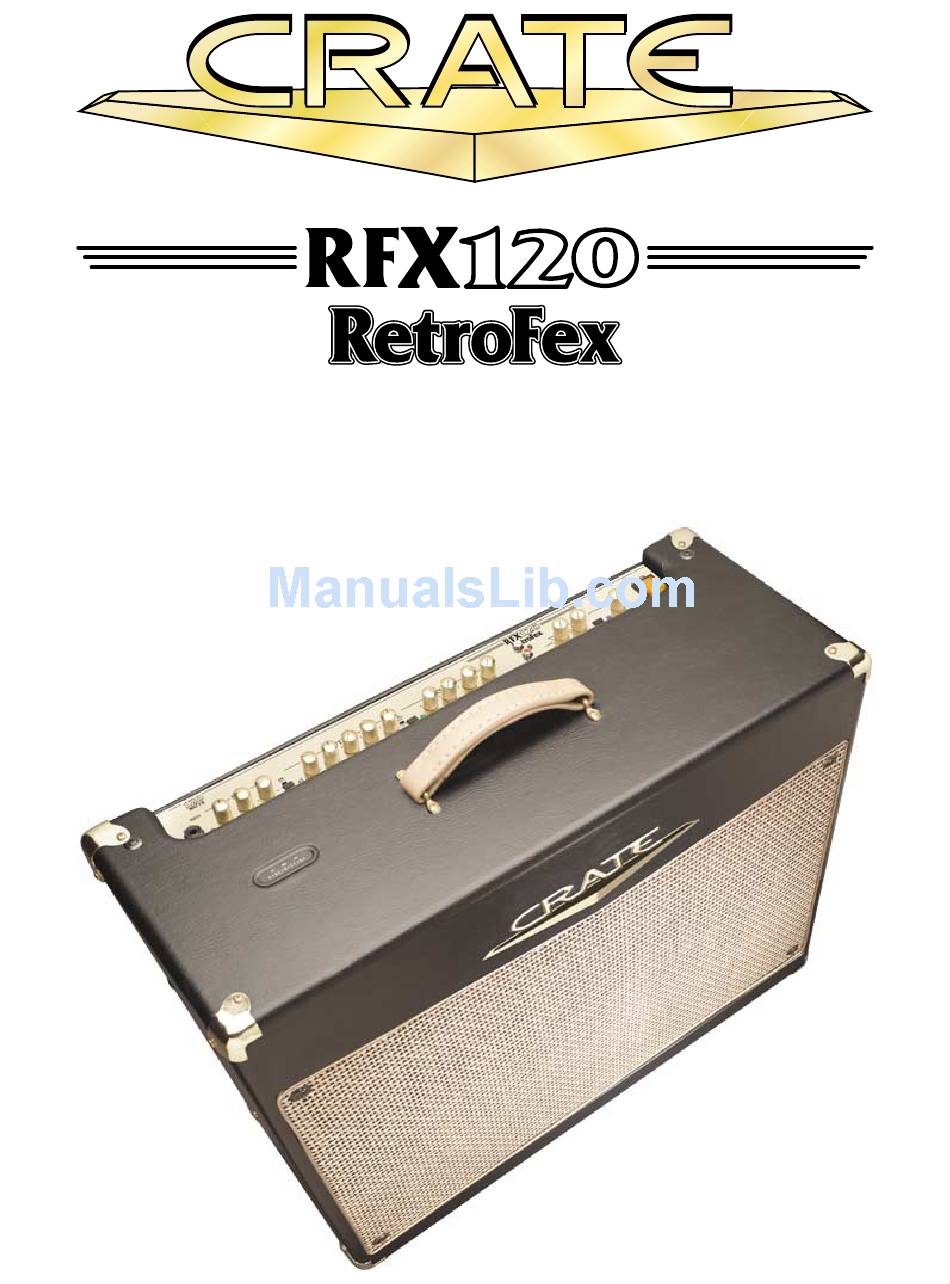

- Page 1 Guitar Amplifier with Digital Effects User’s Guide...
-
Page 2: Table Of Contents
Guitar Amplifier TABLE OF CONTENTS: Introduction ..........3 The Top Panel . -
Page 3: Introduction
Guitar Amplifier Congratulations You are now the proud owner of the Crate RFX120 three-channel guitar amplifier with Advanced Digital Signal Processing. This rugged amplifier combines outstanding features with serious clean and distorted sounds. Dual DSP controls provide 15 “Multi” effects and 15 Delay effects which can be combined for a wide variety of sounds. The Save/Tap button allows you to manually set the tempo of many of the effects and to save new DSP presets in the amplifier’s non-volatile memory. -
Page 4: The Top Panel
Guitar Amplifier The Top Panel: SOLO RHYTHM INPUT RHYTHM / SOLO SOLO RHYTHM CLEAN GAIN SHAPE LEVEL GAIN HIGH LEVEL VOLUME 13 14 1: INPUT: Use this jack to connect your guitar to the amplifier by means of a shielded instrument cable. - Page 5 Guitar Amplifier POWER CLEAN PHASER PHASER TAPE TAPE ECHO ECHO FLANGE FLANGE SAVE / TAP SAVE / TAP SINGLE SINGLE CHORUS CHORUS MULTI MULTI DELAY DELAY REVERB REVERB CD INPUT HIGH 22 23 17: MID: Use this control to adjust the midrange frequency level of the Clean channel. 18: HIGH: Use this control to adjust the high frequency level of the Clean channel.
-
Page 6: The Bottom Panel
31: INSERT: Use this jack to connect an external signal processor to the amplifier. Use Crate’s STP201, STP202, or STP203 stereo-to-mono Y-cord or an adapter such as Crate’s YPP117 and two 1/4” mono signal cables to con- nect to the effect as shown below. -
Page 7: The Dsp Section
Guitar Amplifier The DSP Section: PHASER PHASER The RFX120 features DSP controls TAPE TAPE ECHO ECHO FLANGE FLANGE for Multi, Delay and Reverb. Complete SAVE / TAP SAVE / TAP information about the Multi and Delay SINGLE SINGLE CHORUS CHORUS effects is given below. -
Page 8: Storing Your Own Presets
Guitar Amplifier Storing Your Own Presets: Each channel of the RFX120 has two factory assigned DSP presets, as shown on pages 10 and 11. No matter what the settings of the DSP controls, the preset is recalled when a channel is selected. You may change the DSP settings by rotating the DSP con- trols - these changes will remain active until a different channel is selected, but will not be there for later use unless they are saved. -
Page 9: Using The Footswitch For More Presets
Guitar Amplifier Using the Footswitch for More Presets: The Crate three-button footswitch supplied with the RFX120 allows access to an additional DSP preset for each channel of the amplifier. When the footswitch is connect- ed to the amplifier as shown below, the “original” DSP presets are active for each chan- nel when the #3 footswitch LED is illuminated. -
Page 10: Dsp Factory Presets
Guitar Amplifier DSP Factory Presets: The RFX120 Factory Presets for the DSP section are as follows: Factory Preset 1: Clean w/Chorus, Delay,Reverb PHASER PHASER CHANNEL: SOLO TAPE TAPE ECHO ECHO RHYTHM FLANGE FLANGE CLEAN SAVE / TAP SAVE / TAP BANK: "A"... -
Page 11: Dsp Factory Presets
Guitar Amplifier DSP Factory Presets: The RFX120 Factory Presets for the DSP section are as follows: Factory Preset 4: Clean w/Reverb PHASER PHASER CHANNEL: SOLO TAPE TAPE ECHO ECHO RHYTHM FLANGE FLANGE CLEAN SAVE / TAP SAVE / TAP BANK: "A"... -
Page 12: Suggested Settings
Guitar Amplifier Suggested Settings: "Oceanic" - Clean with Vibrato, Delay, & Reverb SOLO RHYTHM CLEAN PHASER PHASER RHYTHM / ECHO ECHO TAPE TAPE SOLO SOLO FLANGE FLANGE RHYTHM CLEAN SAVE / TAP SAVE / TAP SINGLE SINGLE CHORUS CHORUS MULTI MULTI DELAY DELAY... - Page 13 Guitar Amplifier Suggested Settings: "Haze Faze" - Rhythm with Phase & Reverb SOLO RHYTHM CLEAN PHASER PHASER RHYTHM / ECHO ECHO TAPE TAPE SOLO SOLO FLANGE FLANGE RHYTHM CLEAN SAVE / TAP SAVE / TAP SINGLE SINGLE CHORUS CHORUS MULTI MULTI DELAY DELAY...
-
Page 14: Dsp "Fill In The Blanks" (For User Presets)
Guitar Amplifier DSP “Fill in the Blanks” (User Settings): Copy this page to fill in your own DSP Presets! User Preset: PHASER PHASER CHANNEL: SOLO TAPE TAPE ECHO ECHO RHYTHM FLANGE FLANGE CLEAN SAVE / TAP SAVE / TAP BANK: "A"... -
Page 15: System Block Diagram
Guitar Amplifier System Block Diagram: TUNER A BC D EF G BUFFER INPUT CLEAN VOLUME MID HIGH SOLO/ RHYTHM/ CLEAN SOLO SOLO RTHM SOLO SWITCHING LEVEL CIRCUIT RHYTHM SOLO RHYTHM SOLO/ RHYTHM RHYTHM SOLO RHYTHM SHAPE HIGH LEVEL GAIN GAIN INSERT REVERB POWER... -
Page 16: Technical Specifications
21” H x 27-1/2” W x 11-1/4” D, 50 lbs. The RFX120 is covered with a durable Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
