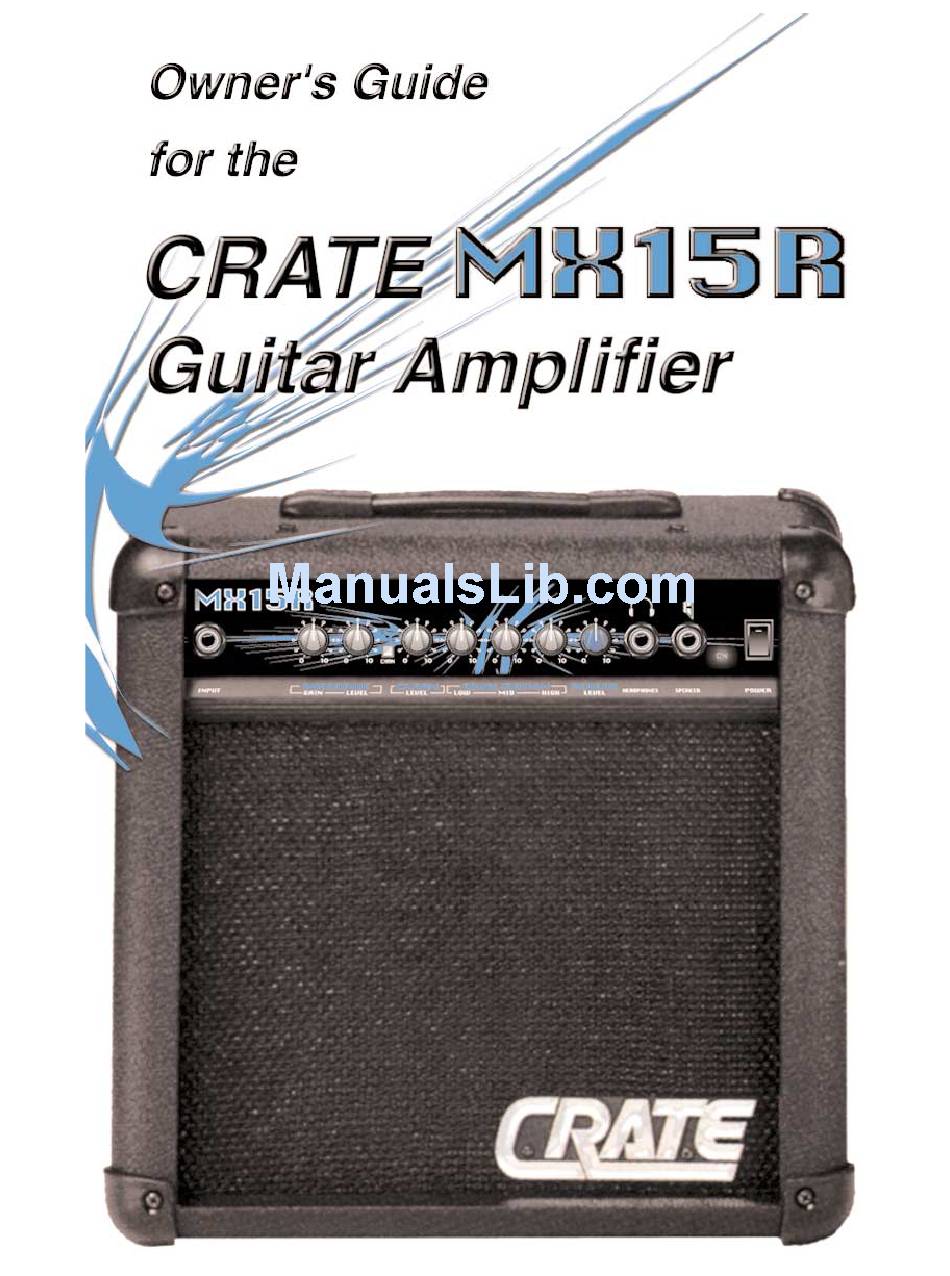

- Page 2 Congratulations! You are now the proud owner of the compact but powerful Crate MX15R amplifier. Two ver- satile channels – one crystal clear and the other with our patented “Flex-Wave” distortion – com- bined with reverb and a three-band EQ offer you more flexibility and performance than any amp in its class.
- Page 3 Important Safeguards and Precautions: All Crate products are designed for continuous safe operation. Abiding by the following rules can help prevent damage to your amplifier, yourself and others. The amplifier is equipped with a three-pronged AC power cord. To reduce the risk of electrical shock, NEVER remove or otherwise attempt to defeat the ground pin of the power cord.
-
Page 4: Front Panel View
The Front Panel: 1: INPUT: Use this 1/4” jack to connect your guitar to the amplifier by means of a shielded instrument cable. OVERDRIVE CHANNEL: A high gain channel giving you sounds from a slight edge to serious overdrive. 2: GAIN: Use this control to adjust the amount of distortion for the Overdrive channel. - Page 5 9: REVERB LEVEL: Use this control to adjust the amount of reverberationl: in its full counter clockwise position the signal will be “dry” (without any reverb). As you rotate the control clockwise the amount of reverberation increases. 10: HEADPHONES: Use this jack to listen to the amplifier through a pair of stereo headphones.
-
Page 6: Suggested Settings
Suggested Settings: Clean: Blues: Rhythm: Lead:... -
Page 7: System Block Diagram
System Block Diagram:... -
Page 8: Specifications
13” H x 13.5” W x 8.25” D, 15 lbs. The MX15R is covered with a durable black Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
