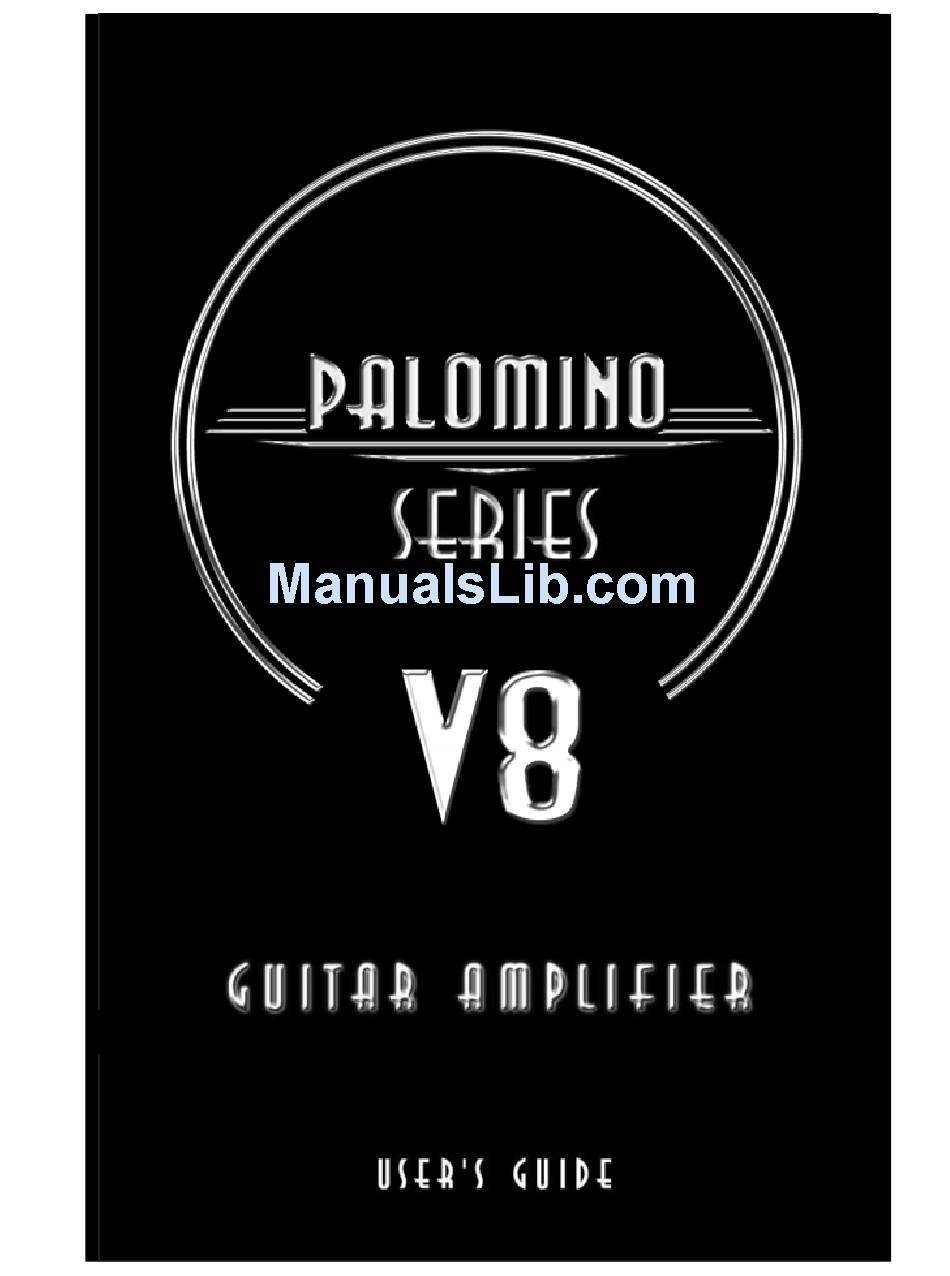

- Page 2 V8 GUITAR AMPLIFIER Congratulations! You are now the proud owner of the Crate V8 Guitar Amplifier. This power- ful little unit packs a whole lot of vintage tube sound into its compact cabi- net – giving you an amp that’s small and easy to operate yet still produces...
-
Page 3: The Front Panel
V8 GUITAR AMPLIFIER The Front Panel: 1. INPUT: Connect your instrument 5. LINE OUT: This jack provides a here by means of a shielded signal line level signal for connecting to a cable. house mixing board, recording con- sole or external amplifier. This jack 2. -
Page 4: Using The Line Out Jack As An Insert Jack
The Line Out jack can also serve as an Insert jack, allowing you to patch exter- nal effects into the amplifier prior to its power amp stage. Use Crate’s STP201, STP202 or STP203 stereo-to-mono Y-cord or an adapter such as Crate’s YPP117 and two 1/4”... -
Page 5: System Block Diagram
V8 GUITAR AMPLIFIER System Block Diagram: Declaration of Conformity Manufacturer’s Name: SLM Electronics Corporate Headquarters: 1901 Congressional Drive, St. Louis, Missouri 63146 Primary Production Facility: 700 Hwy 202 W, Yellville, Arkansas, 72687 Product Type: Audio Amplifier Products meet the regulations for compliance marking under: ETL standards UL6500, UL60065, or UL813 CSA standards E60065 or C22.2 No.1-M90... - Page 6 12” H x 13” W x 7.5” D, 18 lbs. The V8 is covered with a durable Tolex material: wipe it clean with a lint-free cloth. Never spray cleaning agents onto the cabinet. Avoid abrasive cleansers which would damage the finish.
