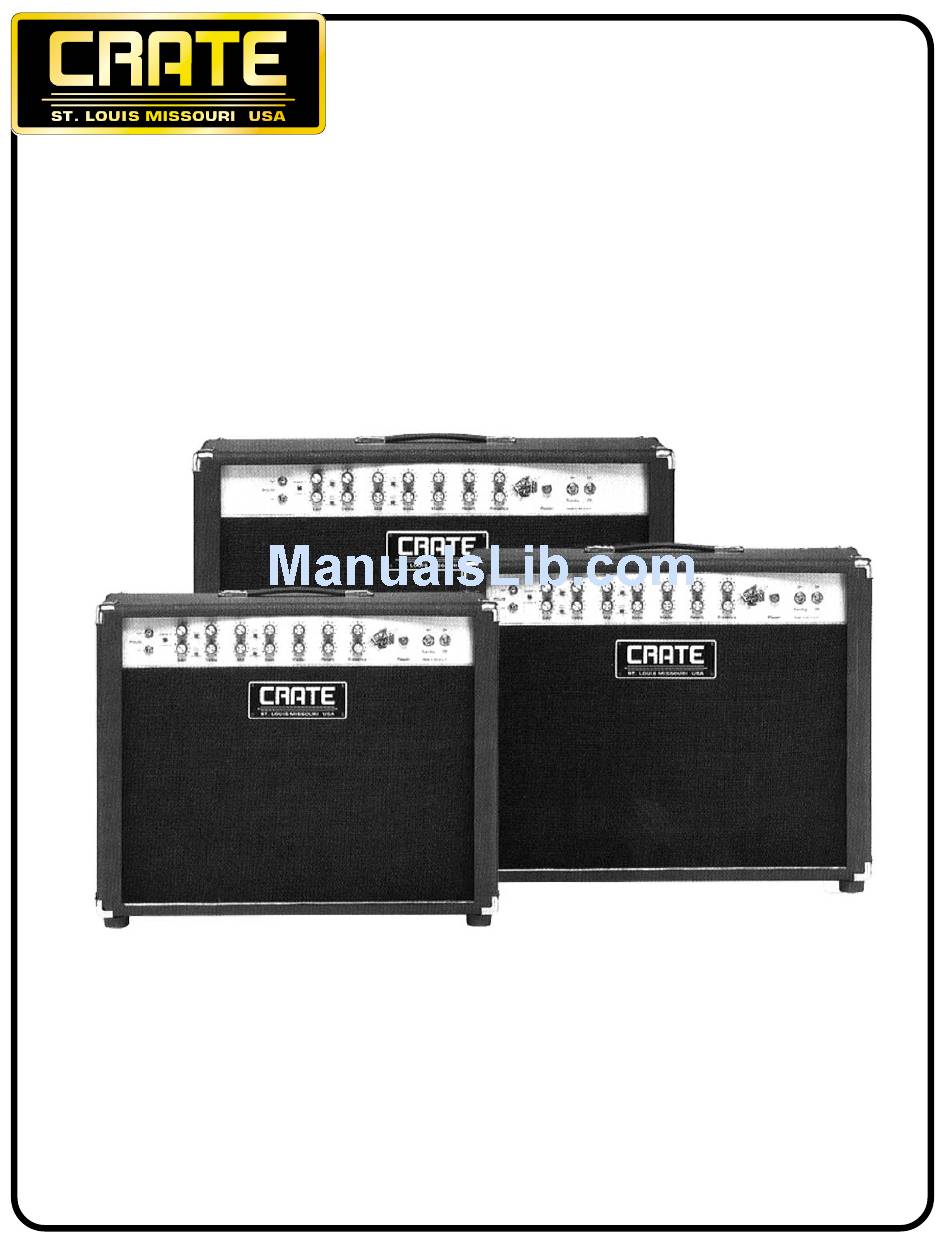

VC-6112/6210/6212 Vintage Club Amplifier OWNER’S MANUAL...
You are now the proud owner of one of the newest and most versatile tube amplifiers available for the guitar! The CRATE Vintage Club Series offers flexibilty and portability with two separate channels for a uniqely rich palette of tonal variety and simplicity of control over your sound.
VC-6112/6210/6212 Amplifier The Front Panel Controls and Their Use: 1. INPUT JACKS: The High input is a direct connection for “stan- 10. BASS CONTROLS: These controls adjust the low end levels for dard” electric guitars. The Low input is padded 6dB and is best each channel.
If the amplifier is to be used outside of the external effects device is made via this jack. Connect a United States, see your authorized Crate dealer for infor- shielded instrument patch cord from the output jack of the mation about alternate line cords and power converters if effect to the return jack.
VC-6112/6210/6212 Amplifier System Block Diagram: TRBL BASS GAIN GAIN STAGE GAIN INPUT STAGE STAGE MSTR BOOST BOOST VOL. MSTR EFFECTS TRBL BASS VOL. RETURN TONE SEND RTRN SHAPING GAIN CONTROL GAIN GAIN STAGE STAGE EFFECTS DRIVER BRIGHT BOOST OUTPUT OUTPUT...
