Tripp Lite SU1500XLCD Specifications

Model #: SU1500XLCD

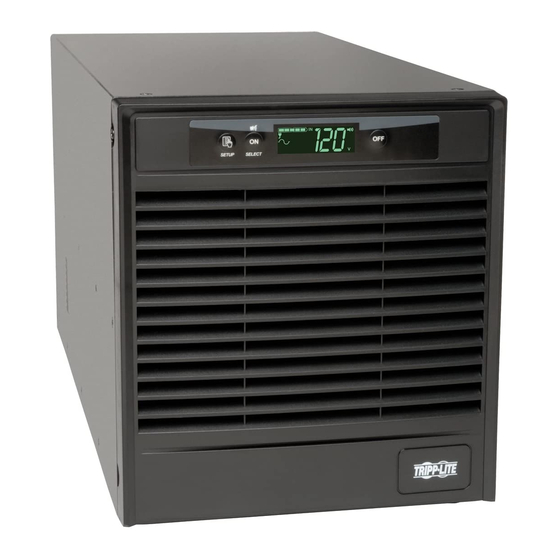

SmartOnline 1.5kVA On-Line Double-Conversion UPS, Tower, Interactive LCD display, 100/110/120/127V NEMA
5-15R outlets
Description
Do you need to protect small- to medium-size servers, networking equipment and telecom systems against data loss, downtime and equipment
damage due to power outages, voltage fluctuations and transient surges? Tripp Lite's SU1500XLCD SmartOnline® Tower UPS System is the
solution! Featuring a 1500VA/1350W capacity and true on-line operation with pure sine wave output and zero transfer time to battery, it provides the
highest level of power protection for mission-critical equipment. The SU1500XLCD's large internal battery set supports connected equipment during
blackouts, and runtime is expandable with optional external battery packs (Tripp Lite model BP48V24-2U or BP48V60RT-3U), sold separately. The
SU1500XLCD has 6 5-15R outlets, including 2 load banks of 3 outlets each that are individually controllable to reboot select equipment on demand
or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational
parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems. The
SU1500XLCD also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network. It comes
backed by a 2-year warranty and $250,000 of Ultimate Lifetime Insurance.
Package Includes
SU1500XLCD SmartOnline® Tower UPS System
PowerAlert Software CD and Cabling
Emergency Power Off (EPO) Cabling
Owner's Manual
Features
Ideal for Protection of Mission-Critical Equipment
The SU1500XLCD provides true on-line operation, reliable battery backup and comprehensive power management capability in a compact tower
form factor. Featuring a 1500VA/1350W capacity, 6 5-15R outlets, a 10-ft. cord with standard 5-15P plug, USB/DB9 ports and a slot for an optional
SNMPWEBCARD, the SU1500XLCD offers a complete power protection solution for small- to medium-size servers, storage devices, telecom
systems and other mission-critical equipment.
True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
The SU1500XLCD provides the highest level of protection available for mission-critical equipment. It actively converts raw incoming AC power to DC,
then re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems.
Zero transfer time between AC and battery operation maintains continuous output and further protects connected equipment from the disruptive
effects of blackouts and severe low-voltage conditions. Sine wave output guarantees compatibility with all equipment types.
Individually Controllable Outlets
The SU1500XLCD includes 2 load banks of 3 outlets each that are individually controllable via a software interface for remote reboot of locked-up
Highlights
1500VA / 1.5kVA / 1350 watt on-line double-conversion tower UPS
100/110/120/127V 50/60Hz output, 97% efficiency economy mode option
Interactive LCD with 10 selectable screens of UPS and site power data
USB, RS232 & EPO ports, SNMPWEBCARD option
Expandable runtime, Hot-swappable batteries
2 independently switchable load banks
NEMA 5-15P input; 6 5-15R outlets
