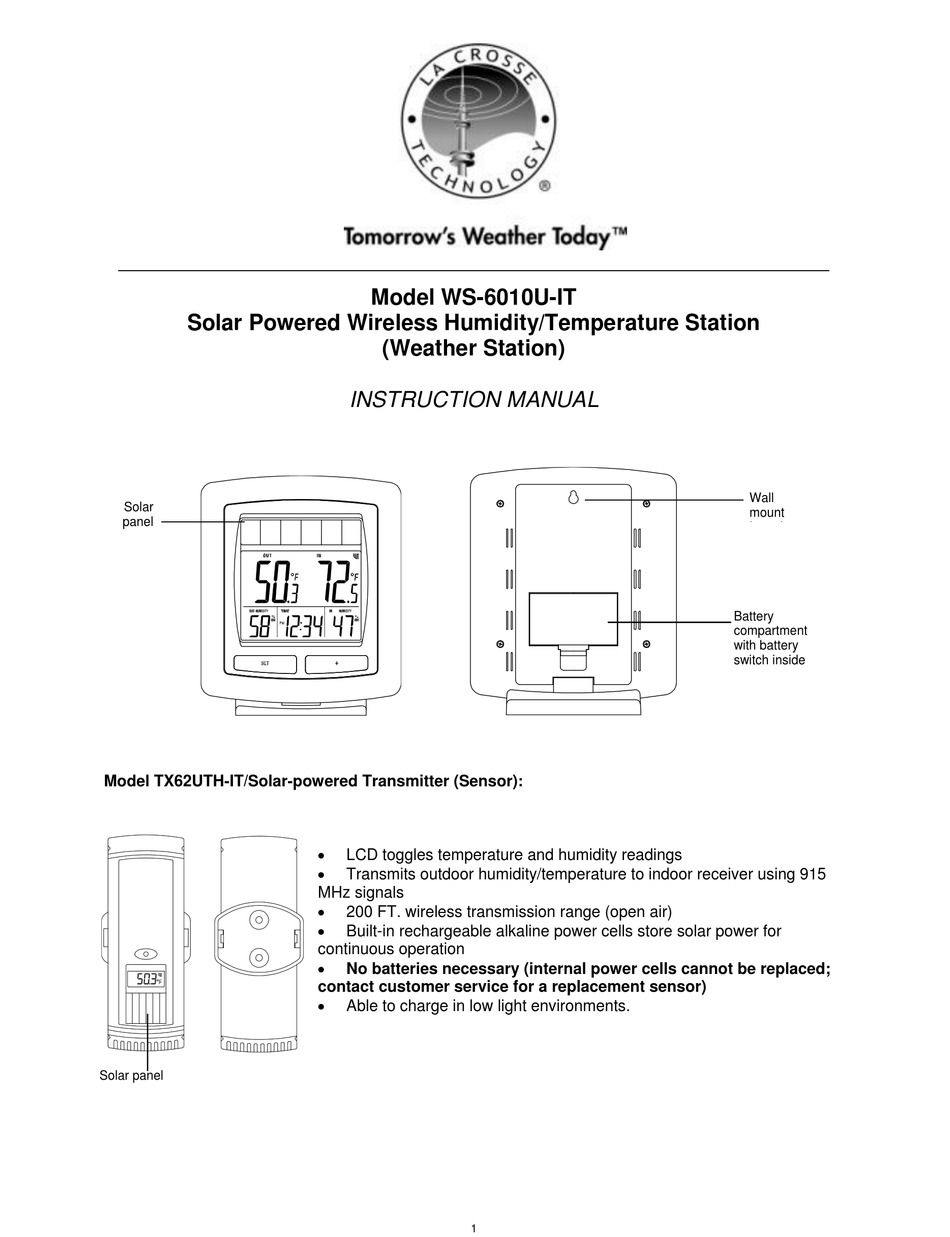

Solar Powered Wireless Humidity/Temperature Station
Solar
panel
Model TX62UTH-IT/Solar-powered Transmitter (Sensor):
Solar panel
Model WS-6010U-IT
(Weather Station)
INSTRUCTION MANUAL
LCD toggles temperature and humidity readings
Transmits outdoor humidity/temperature to indoor receiver using 915
MHz signals
200 FT. wireless transmission range (open air)
Built-in rechargeable alkaline power cells store solar power for
continuous operation
No batteries necessary (internal power cells cannot be replaced;
contact customer service for a replacement sensor)
Able to charge in low light environments.
1
Wall
mount
Location
Battery
compartment
with battery
switch inside
Advertisement
Table of Contents
Related Manuals for La Crosse Technology WS-6010U-IT
Summary of Contents for La Crosse Technology WS-6010U-IT
-
Page 1: Weather Station
Model WS-6010U-IT Solar Powered Wireless Humidity/Temperature Station (Weather Station) INSTRUCTION MANUAL Wall Solar mount panel Location Battery compartment with battery switch inside Model TX62UTH-IT/Solar-powered Transmitter (Sensor): LCD toggles temperature and humidity readings Transmits outdoor humidity/temperature to indoor receiver using 915 MHz signals ... -
Page 2: Battery Compartment
INITIAL SETUP (USING INCLUDED SOLAR RECHARGEABLE BATTERIES FROM THE FACTORY) 1. Open battery compartment on the back of the Weather Station and make sure that the battery switch under the battery compartment is to the left. If it is not, please slide the switch to the left before proceeding. -
Page 3: Idle Mode
SOLAR-POWERED TRANSMITTER OPERATION MODES (1) NORMAL MODE: NORMAL MODE occurs when the battery voltage is 2.5V or greater. It measures and transmits temperature / humidity (weather) data to the indoor receiver every 8 seconds. It checks the brightness level of the surrounding environment every 5 seconds. ... -
Page 4: Program Menu
Solar Panel Temperature Display Time Display Function Buttons PROGRAM MENU: SET THE TIME: Press and hold the SET button for 3 seconds to enter the time setting mode. HOUR: The Hour digits will flash. Press and release the PLUS button to set the Hour. Press and release the SET button once. -
Page 5: Display Modes
DISPLAY MODES: Press and release the SET button to view different display modes: Outdoor temperature in the first line on the left side and outdoor humidity in the second line on the left side. Shows indoor temperature in the first line on the right side and indoor humidity in the second line on the right. - Page 6 POSITIONING THE WEATHER STATION: Stand the Weather Station on a table top, counter or desk, or mount is on a wall. Ensure that the Weather Station continuously receives the 915MHz signal from the Sensor before mounting it in the desired location.
- Page 7 If new solar rechargeable batteries are used, the battery switch should be moved to the right SOLAR position AFTER they are inserted in the unit. REPLACE INCLUDED SOLAR RECHARGEABLE BATTERIES WITH STANDARD ALKALINE BATTERIES 1. Remove the included solar rechargeable batteries from the compartment. 2.
-
Page 8: Specifications
Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. - Page 9 LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION.
