- Page 1 User Manual...
-
Page 2: Edition Notes
Copyright Notice CHAUVET® owns the content of this user manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2010 CHAUVET®. All rights reserved Electronically published by CHAUVET®... -
Page 3: Table Of Contents
Table of Contents 1. Before You Begin ...1 What is Included ... 1 Unpacking Instructions ... 1 Typographic Conventions ... 1 Icon Meaning ... 1 Safety Notes ... 2 Expected LED Lifespan ... 2 2. Introduction ...3 Product Description ... 3 Features ... - Page 4 Table of Contents 5. Technical Information ... 18 General Maintenance ... 18 Troubleshooting Guide ... 19 Exploded View ... 20 Photometrics... 21 Returns Procedure ... 22 Claims ... 22 Contact Us ... 22 Technical Specifications... 23 COLORado™ 1-Tri IP User Manual Rev. 01c...
-
Page 5: Before You Begin
1. Before You Begin · What is · Included · · · · · · · · Unpacking Immediately upon receiving this product, carefully unpack it and check the container in which you received it. Make sure that you have received all the parts indicated above Instructions and that they are all in good condition. -
Page 6: Safety Notes
· Operation · · In the unlikely event that your CHAUVET® product may require service, please contact CHAUVET® Technical Support. Expected LED LEDs gradually decline in brightness over time, mostly because of heat. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal, single LED Lifespan conditions. -
Page 7: Introduction

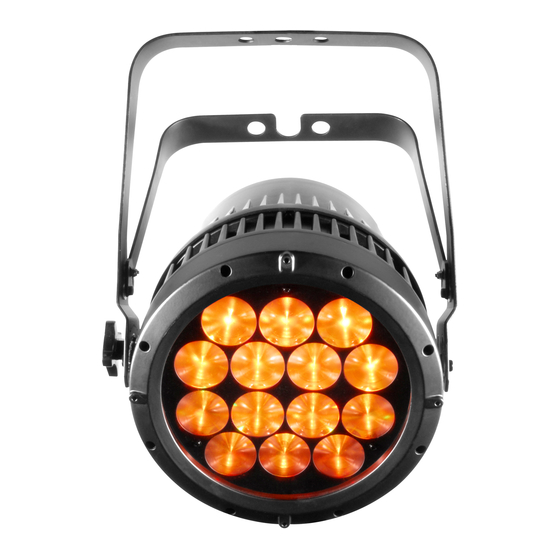

2. Introduction Product The COLORado™ 1-Tri IP is an RGB wash light based on 14 tri-color LEDs. It consists of a single pod with a double bracket mounting yoke. The AC power comes directly into Description the fixture’s housing through a proprietary IP66 rated power input cord. The power linking uses a proprietary IP66 rated power link cord. -
Page 8: Dmx Channel Summary
Introduction DMX Channel Summary TOUR ARC1 AR1 + D AR1 + S DMX Channel Function Master Dimmer Green Blue Color Macro Strobe Auto Programs Auto Speed Adjust Dimmer Speed ID Address DMX Channel Function Green Blue DMX Channel Function Master Dimmer Green Blue DMX Channel... -
Page 9: Product Overview
Product Overview Power In A = 30 mm B = 13 mm MX In COLORado™ 1-Tri IP User Manual Rev. 01c Introduction Safety cable passageway Power Out DMX Out Control Panel (Plate removed) -
Page 10: Setup
IP fixtures at 120 VAC. The fixture also comes with an IP66 power linking cord to allow direct connection between fixtures. Fuse Replacement The COLORado™ 1-Tri IP fixture has no external fuse that the user can change. However, it does have an internal fuse that only an authorized CHAUVET® technician should change. Wire (US) Wire (Europe) -
Page 11: Dmx Linking
If you are not familiar with the DMX standard, or if you need information about the DMX cables needed to link the COLORado™ 1-Tri IP fixture to a DMX controller, you may download the “DMX Primer” document from the CHAUVET® Web site. The COLORado™ 1-Tri IP comes with two adapter cables, one from proprietary IP66 to 3-pin DMX In and the other from proprietary IP66 to 3-pin DMX Out. -
Page 12: Mounting
Although it is possible to use a single clamp per fixture, CHAUVET® recommends using two clamps per fixture. Secure the fixture with the safety cable after mounting it to the truss. -
Page 13: Operation
4. Operation Button Control Panel <MENU> Description <ENTER> <DOWN> Control Options You can set the COLORado™ 1-Tri IP start address in the 001~512 DMX range. This allows for the control of up to 51 fixtures in the 10-channel TOUR personality. In addition, the ID address system allows you to assign up to 66 fixtures within the same DMX address, thus multiplying the number of fixtures you can control within a single universe. -
Page 14: Dmx Control With Id Addressing
Operation DMX Control With ID In this mode, the fixtures with the same DMX starting address will respond to the DMX controller based on the fixture’s individual ID address setting. If the user selects ID Addressing address “0”, all the fixtures with the same DMX address will respond in unison. Otherwise, each fixture will follow the control for its particular ID address. -
Page 15: Color Adjustment
Color Adjustment The COLOR setting determines how the COLORado™ 1-Tri IP displays the white color when the Red, Green, and Blue faders are all at the “255” value. 1) Go to SET > Color. 2) Select OFF, RGBW, or UC. Dimmer Curves This setting determines how the output of the COLORado™... -
Page 16: Reset
Operation Reset This setting allows the user to reset the COLORado™ 1-Tri IP fixture to its default values, including the custom programs. 1) Go to SET> REST. 2) When prompted, enter the master access password as shown in Control Panel 3) Wait for the reset process to finish. -
Page 17: Tour Notes
TOUR Notes These notes intent to clarify the way the TOUR DMX personality works. · Channel 1 controls the intensity of the currently projected color. Master Dimmer · When the slider is at the highest position (255) the intensity of the output is at its ·... -
Page 18: Menu Map
Operation Menu Map -14- COLORado™ 1-Tri IP User Manual Rev. 01c... -
Page 19: Dmx Values
DMX Values Channel Function TOUR Master Dimmer Step Time Green Fade Time Blue Color Macro Strobe Auto Auto Speed Dimmer Speed COLORado™ 1-Tri IP User Manual Rev. 01c Value Percent/Setting 000 ó 255 0~100% 0~100% (or) 000 ó 255 When playing a custom program 0~100% (or) 000 ó... -
Page 20: Tour (Cont.)
Operation Channel TOUR (Cont.) ID Address Channel Function ARC1 Green Blue Channel Function ARC1 + D Master Dimmer Green Blue Channel Function AR1 + S Master Dimmer Green Blue Strobe -16- Continued from previous page Function Value Setting 000 ó 009 All IDs 010 ó... -
Page 21: Hsv
Channel Function Saturation Value · “Hue” refers to the visible light, such as red, yellow, and cyan, etc. · “Saturation” indicates the dominance of hue in the color; when saturation is at 100%, the color is at its purest. · “Value”... -
Page 22: Technical Information
Dust build up reduces light output performance and can cause overheating. This can lead to reduced light source life and increased mechanical wear. CHAUVET® recommends cleaning the fixture’s external optics with a soft cloth using normal glass cleaning fluid. To clean a fixture, follow the recommendations below: ·... -
Page 23: Troubleshooting Guide
DMX signal problems · Too many fixtures · Interference from AC wires If you still experience technical problems after trying the above solutions, contact CHAUVET® Technical Support. COLORado™ 1-Tri IP User Manual Rev. 01c Technical Information Action(s) · Clean the fixture regularly ·... -
Page 24: Exploded View
Technical Information Exploded View Item Description Front cover Rubber seal (*) Clear glass Lens complete set LED board Heat sink Power supply Driver board Power connection board Display board The rubber seal can be a separate ring or it may come mounted around the (*): glass cover -20-... -
Page 25: Photometrics
Technical Information Photometrics COLORado™ 1-Tri IP User Manual Rev. 01c -21-... -
Page 26: Returns Procedure
The user must clearly label the package with a Return Merchandise Authorization Number (RMA #). CHAUVET® will refuse any product returned without an RMA #. DO NOT write the RMA # directly on the box. Instead, write it on a properly affixed label. -
Page 27: Technical Specifications
Technical Specifications Dimensions and Weight 9.6 in (245 mm) Note: Dimensions in inches rounded to the nearest decimal digit. Power Light Source Photo Optic Thermal Maximum External Temp. 3-pin XLR (IP66 adapter) Ordering COLORado™ 1-Tri IP COLORado™ 1-Tri IP User Manual Rev. 01c Length Width 8.0 in (205 mm) - Page 28 CHAUVET® 5200 NW 108th Avenue Sunrise, FL 33351 (USA) (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com COLORado™ 1-Tri IP User Manual Rev. 01c December 2010...
