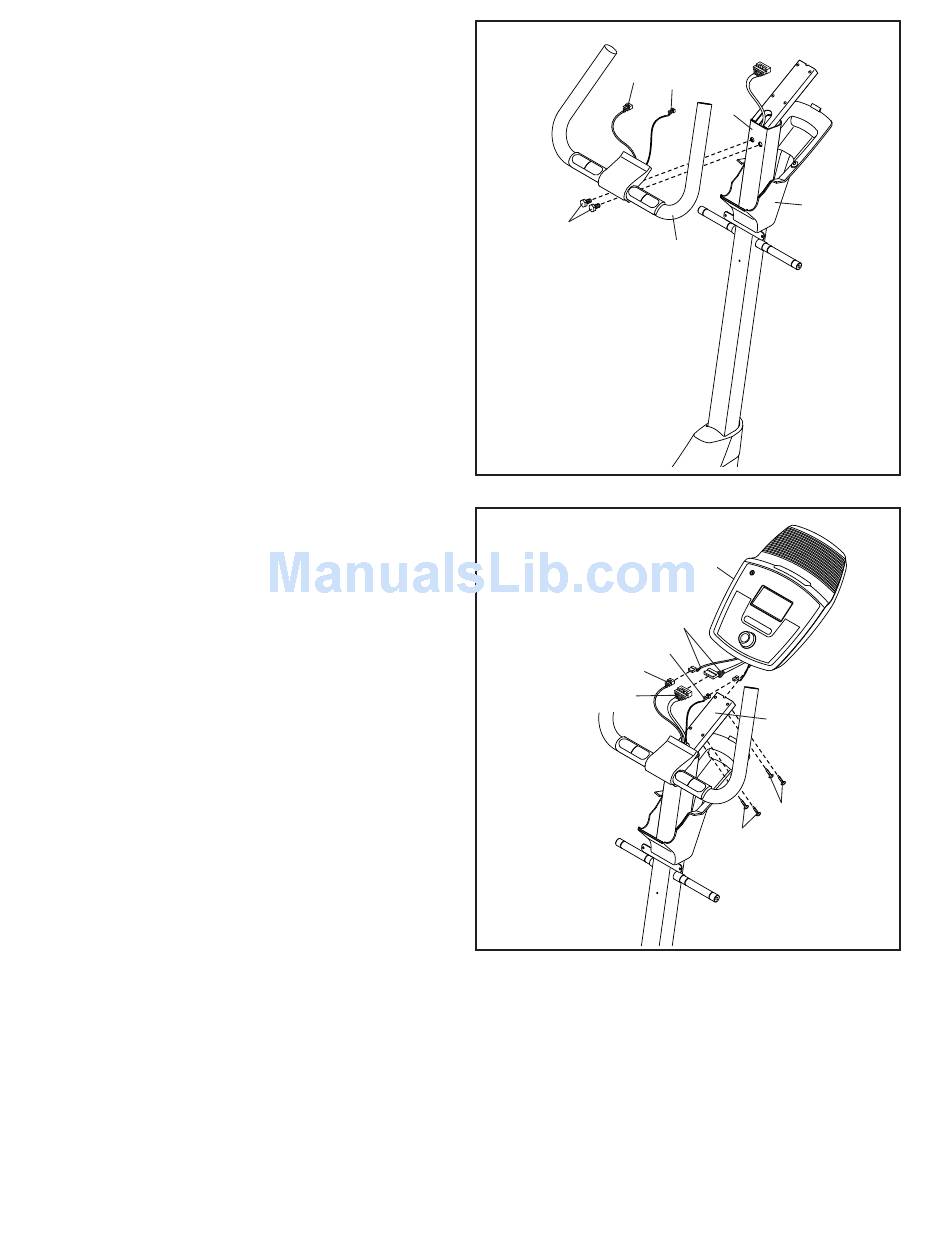

6. Orient the Console Cover (32) as shown. Then,
slide the Console Cover onto the Upright (2).
Orient the Handlebar (39) as shown. Make sure
to pull the Pulse Wire (28) and the Monitor
Wire (103) out of the Handlebar.
Tip: Avoid pinching the wires. Attach the
Handlebar (39) to the Upright (2) with two M10 x
20mm Screws (79).
7. Untie and discard the wire tie on the Wire
Harness (42).
While a second person holds the Console (4)
near the Upright (2), connect the console wires
to the Wire Harness (42), the Pulse Wire (28),
and the Monitor Wire (103).
Insert the excess wires into the Upright (2) or
into the Console (4).
Tip: Avoid pinching the wires. Attach the
Console (4) to the Upright (2) with four M4 x
28mm Screws (99).
