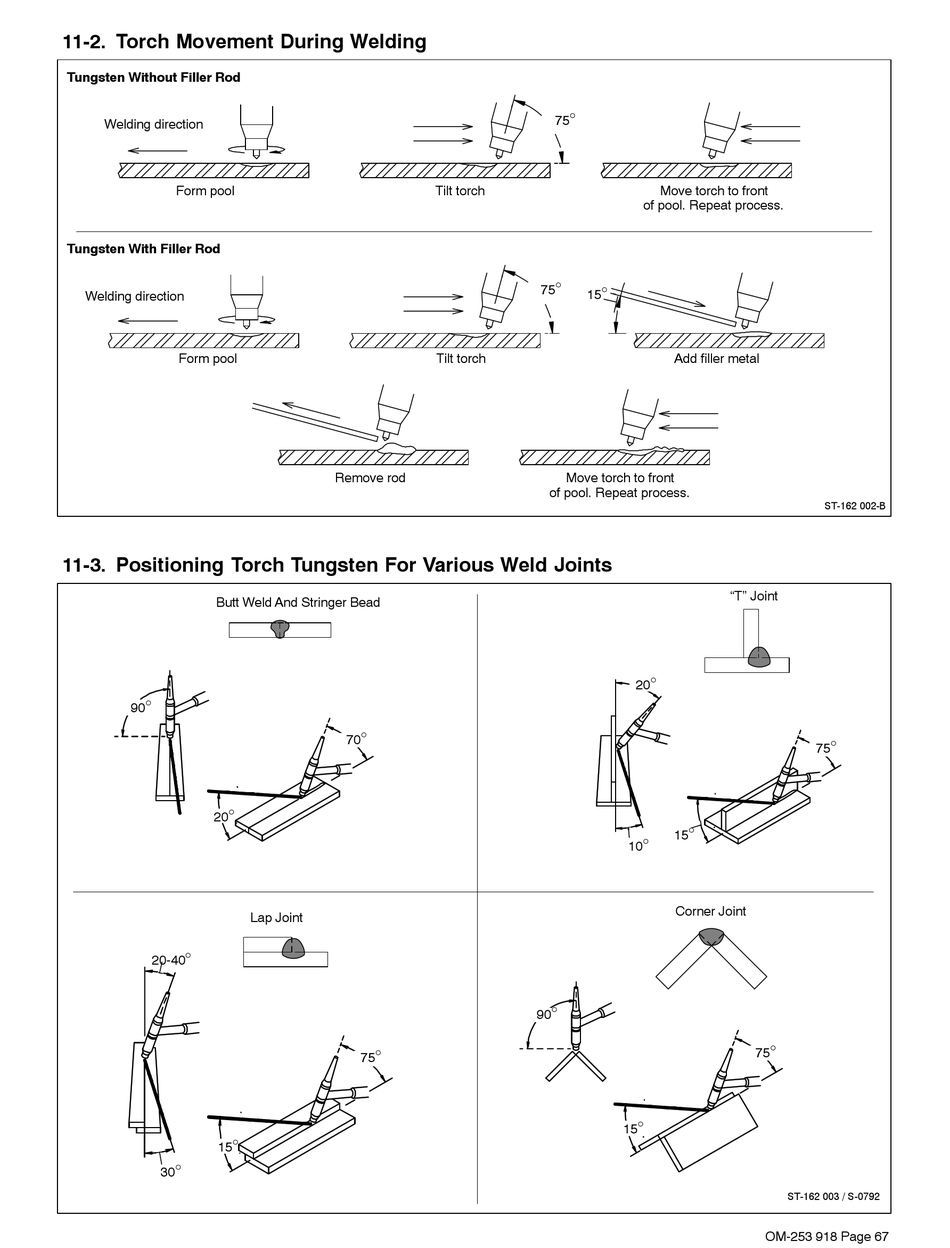

11-2. Torch Movement During Welding

Tungsten Without Filler Rod
Welding direction
Form pool
Tungsten With Filler Rod
Welding direction
Form pool

11-3. Positioning Torch Tungsten For Various Weld Joints

Butt Weld And Stringer Bead

90

20

20-40

15

30
Remove rod

70
Lap Joint

75

75
Tilt torch

75

15
Tilt torch
Move torch to front
of pool. Repeat process.

90
Move torch to front
of pool. Repeat process.
Add filler metal
"T" Joint

20

15

10
Corner Joint

75

15
ST-162 003 / S-0792
OM-253 918 Page 67
ST-162 002-B

75
