GE JKP25SH Dimension Manual

6015 Built-in Single Oven
(Pub. 1-G003 pg. 107) April 28, 1993
GE Appliances

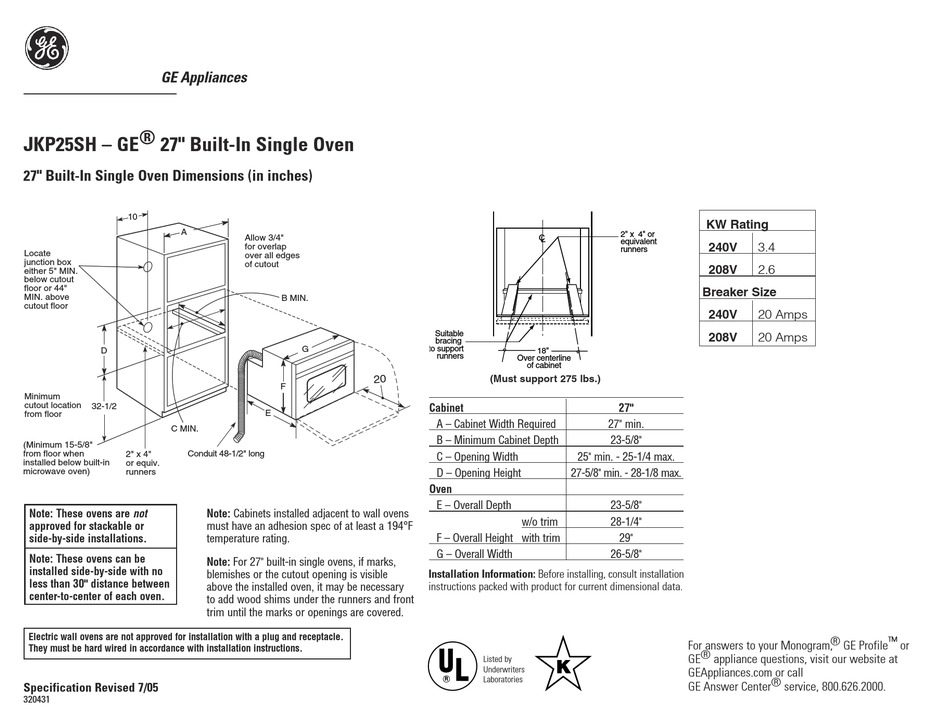

JKP25SH – GE ® 27" Built-In Single Oven
27" Built-In Single Oven Dimensions (in inches)
10
A
Locate
junction box
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
D
Minimum
cutout location
32-1/2
from floor
C MIN.
(Minimum 15-5/8"
Conduit 48-1/2" long
from floor when 2" x 4"
installed below built-in or equiv.
microwave oven) runners
Note: These ovens are not
approved for stackable or
side-by-side installations.
Note: These ovens can be
installed side-by-side with no
less than 30" distance between
center-to-center of each oven.
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.
Specification Revised 7/05
320431
Allow 3/4"
for overlap
over all edges
of cutout
B MIN.
G
F
E
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.
Note: For 27" built-in single ovens, if marks,
blemishes or the cutout opening is visible
above the installed oven, it may be necessary
to add wood shims under the runners and front
trim until the marks or openings are covered.
C L
Suitable
bracing
to support
18"
runners
Over centerline
of cabinet
(Must support 275 lbs.)
Cabinet
A – Cabinet Width Required
B – Minimum Cabinet Depth
C – Opening Width 25" min. - 25-1/4 max.
D – Opening Height 27-5/8" min. - 28-1/8 max.
Oven
E – Overall Depth
w/o trim
F – Overall Height with trim
G – Overall Width
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Listed by
Underwriters
Laboratories
R
KW Rating
2" x 4" or
equivalent
240V 3.4
runners
208V 2.6
Breaker Size
240V 20 Amps
208V 20 Amps
27"
27" min.
23-5/8"
23-5/8"
28-1/4"
29"
26-5/8"
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
