MAINTENANCE AND TROUBLESHOOTING

I nspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the dis-
played heart rate appears to be too high or too low, see
step 5 on page 21.
If the console does not display your heart rate
when you use the chest heart rate monitor, see
TROUBLESHOOTING on page 15.
If it is difficult for you to touch the correct buttons on
the screen, the screen may not be properly calibrated.
To calibrate the screen, see step 5 on page 21.
If a replacement power adapter is needed, call the
telephone number on the cover of this manual.
IMPORTANT: To avoid damaging the console, use
only a manufacturer-supplied regulated power
adapter.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
see HOW TO LEVEL THE ELLIPTICAL on page 16.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. First, unplug the power
adapter.

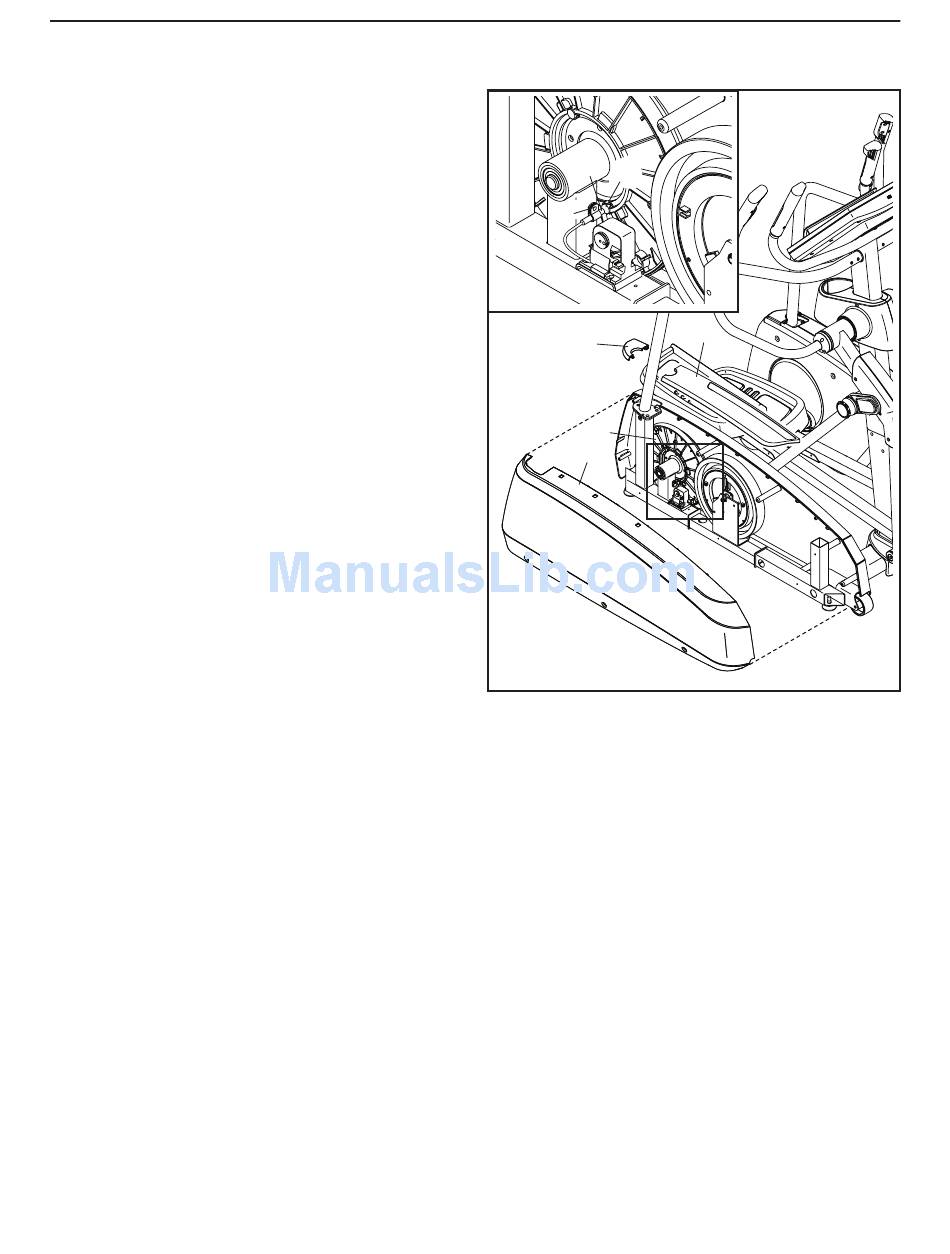

Next, see EXPLODED DRAWING C on page 39.
First, remove the Right Rail Cover (93) and the Right
Rail Cover Cap (7). Then, remove all of the Screws
(67, 73) from the Right Outer and Inner Shields (17,
19); there are two sizes of Screws in the Right
Outer and Inner Shields——note which size of Screw
you remove from each hole. Then, gently remove the
Right Outer Shield.
Then, locate the Reed Switch (86). Turn the Pulley (53)
until a Magnet (88) is aligned with the Reed Switch.
86
88
67
7
53
17
Loosen, but do not remove, the indicated M4 x 16mm
Screw (67). Slide the Reed Switch (86) slightly closer
to or away from the Magnet (88), and then retighten
the Screw. Then, plug in the power adapter and rock
the Pulley (53) forward and backward so that the
Magnet passes the Reed Switch repeatedly.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
reattach the right outer and inner shields and the right
rail cover and the right rail cover cap. Then, plug in the
power adapter.
