Spa Shell Diagram

D
A
K
F

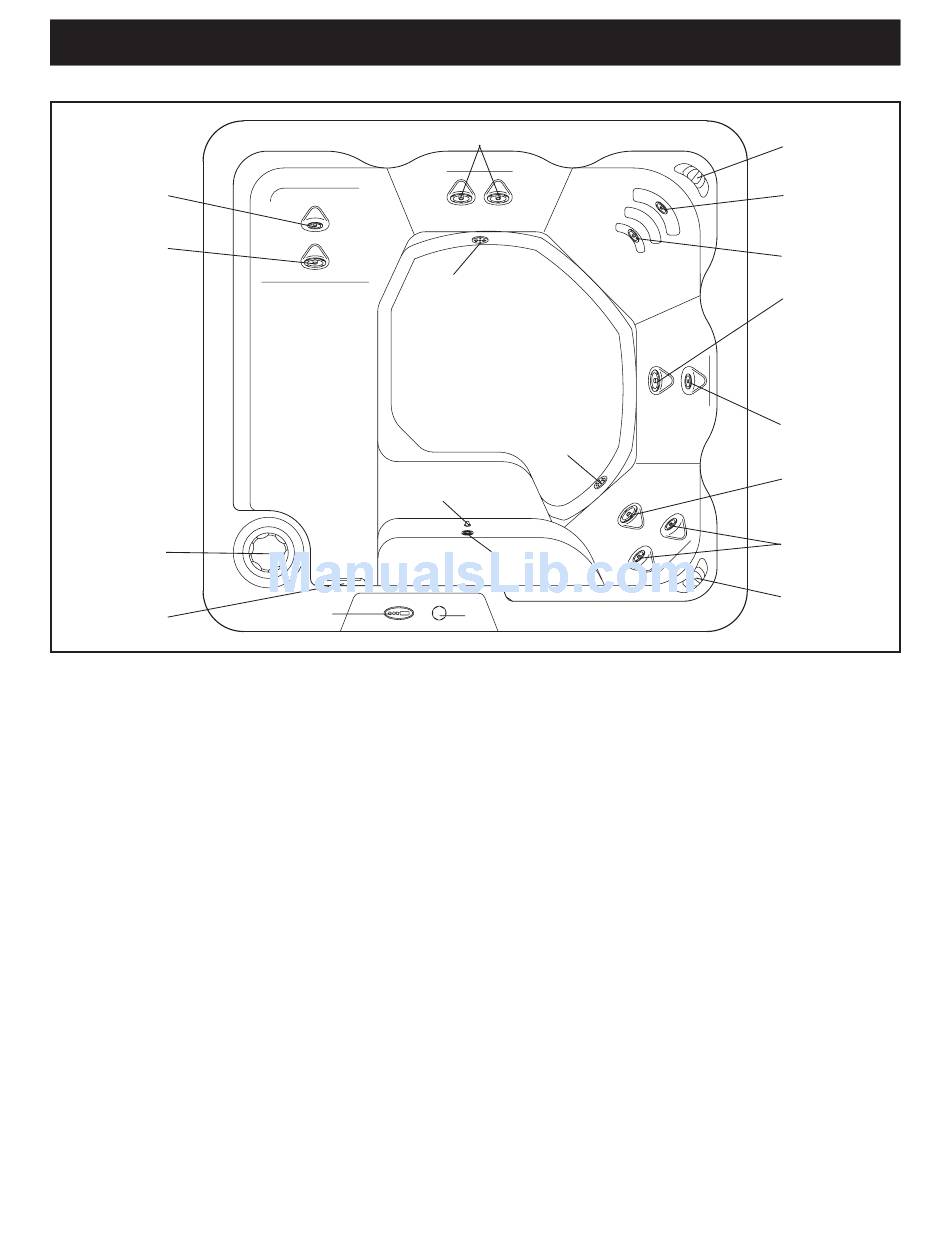

Refer to the diagram above. The function of each
component is explained below.
A. The two adjustable push/pull jets allow you to
direct their water flow and can be closed and
opened by pushing and pulling the nozzles. Water
pressure to the other hydrotherapy jets can be
increased by closing the adjustable push/pull jets.
If no air flows through the jets when the air control
is turned counterclockwise, simply pull the nozzles
slightly.
B. The four adjustable jets allow you to direct their
water flow and provide a consistent, relaxing mas-
sage.
C. The three whirly jets provide a continuous whirling
massage action.
D. The fixed jet provides a constant, pleasing mas-
sage.
E. The ozone jet is ozone ready and doubles as an
adjustable push/pull jet.
F. The skimmer cleans the surface of the water.
B
I
G
H
L
J
G. The temperature probe monitors water tempera-
H. The underwater light can be used for night opera-
I. The two suction vents near the floor of the spa
J. The air control determines the amount of air flowing
K. The filter can be removed for cleaning or replace-
L. The console controls the spa jets, turns the under-
M. The two pillows can be removed or turned 180
11
I
ture.
tion (see USING THE CONTROLS on page 12).
bring water into the pumps in order to operate the
system. Never operate the spa without the suc-
tion covers in place.
through the spa jets during operation (see USING
THE CONTROLS on page 12).
ment (see CHECKING AND CLEANING THE FIL-
TER on page 13).
water light on and off, and adjusts the water tem-
perature setting (see USING THE CONTROLS on
page 12).
provide two positions of comfort.
