Single oven
installed
below a
countertop

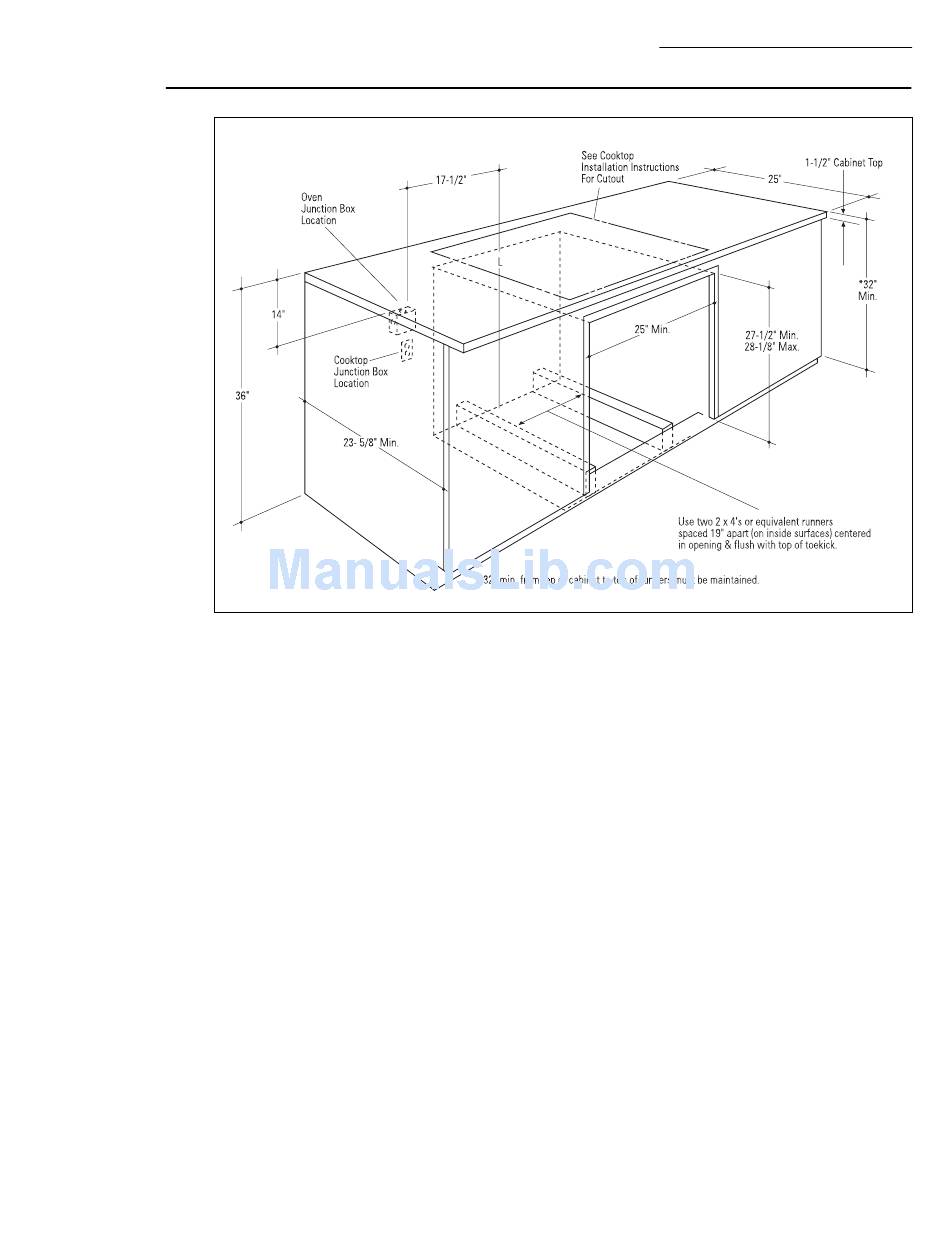

Monogram ovens can be installed below a countertop.
The rough opening of the base cabinet should be:
• Depth–23-5/8" min. from inside back to front of
cabinet frame.
• Width–25" min.
• Height–27-1/2" min. 28-1/8" max.
All Monogram single ovens require 7/8" on both sides
and bottom. Allow 1/4" min. for top overlap.
• Oven overlaps will conceal raw edges.
Locate the junction box:
• 17-1/2" from the centerline of the opening to the
left side.
• 14" below the countertop.
Cabinetry
Built-In Ovens
C
Monogram 36" Halogen and ribbon cooktop can be
installed over a single oven. Refer to cooktop
installation instructions for cutout.
• Locate the junction box 16" min. below the
countertop.
