2

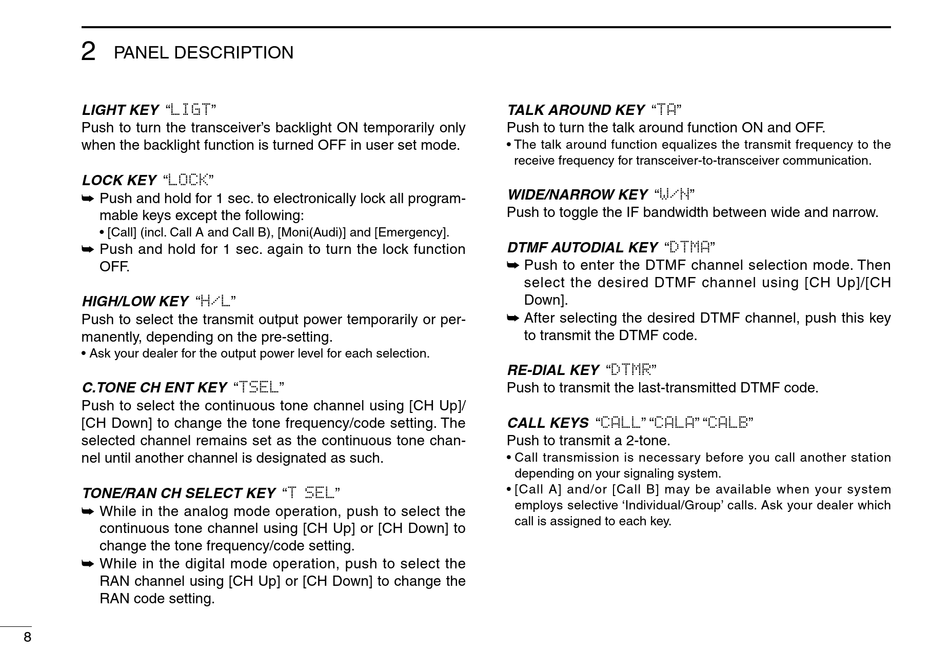

PANEL DESCRIPTION
LIGHT KEY "LIGT"
Push to turn the transceiver's backlight ON temporarily only
when the backlight function is turned OFF in user set mode.
LOCK KEY "LOCK"
➥ Push and hold for 1 sec. to electronically lock all program-
mable keys except the following:
• [Call] (incl. Call A and Call B), [Moni(Audi)] and [Emergency].
➥ Push and hold for 1 sec. again to turn the lock function
OFF.
HIGH/LOW KEY "H/L"
Push to select the transmit output power temporarily or per-
manently, depending on the pre-setting.
• Ask your dealer for the output power level for each selection.
C.TONE CH ENT KEY "TSEL"
Push to select the continuous tone channel using [CH Up]/
[CH Down] to change the tone frequency/code setting. The
selected channel remains set as the continuous tone chan-
nel until another channel is designated as such.
TONE/RAN CH SELECT KEY "T SEL"
➥ While in the analog mode operation, push to select the
continuous tone channel using [CH Up] or [CH Down] to
change the tone frequency/code setting.
➥ While in the digital mode operation, push to select the
RAN channel using [CH Up] or [CH Down] to change the
RAN code setting.
8
TALK AROUND KEY "TA"
Push to turn the talk around function ON and OFF.
• The talk around function equalizes the transmit frequency to the
receive frequency for transceiver-to-transceiver communication.
WIDE/NARROW KEY "W/N"
Push to toggle the IF bandwidth between wide and narrow.
DTMF AUTODIAL KEY "DTMA"
➥ Push to enter the DTMF channel selection mode. Then
select the desired DTMF channel using [CH Up]/[CH
Down].
➥ After selecting the desired DTMF channel, push this key
to transmit the DTMF code.
RE-DIAL KEY "DTMR"
Push to transmit the last-transmitted DTMF code.
CALL KEYS "CALL" "CALA" "CALB"
Push to transmit a 2-tone.
• Call transmission is necessary before you call another station
depending on your signaling system.
• [Call A] and/or [Call B] may be available when your system
employs selective 'Individual/Group' calls. Ask your dealer which
call is assigned to each key.
