AIS TRANSPONDER

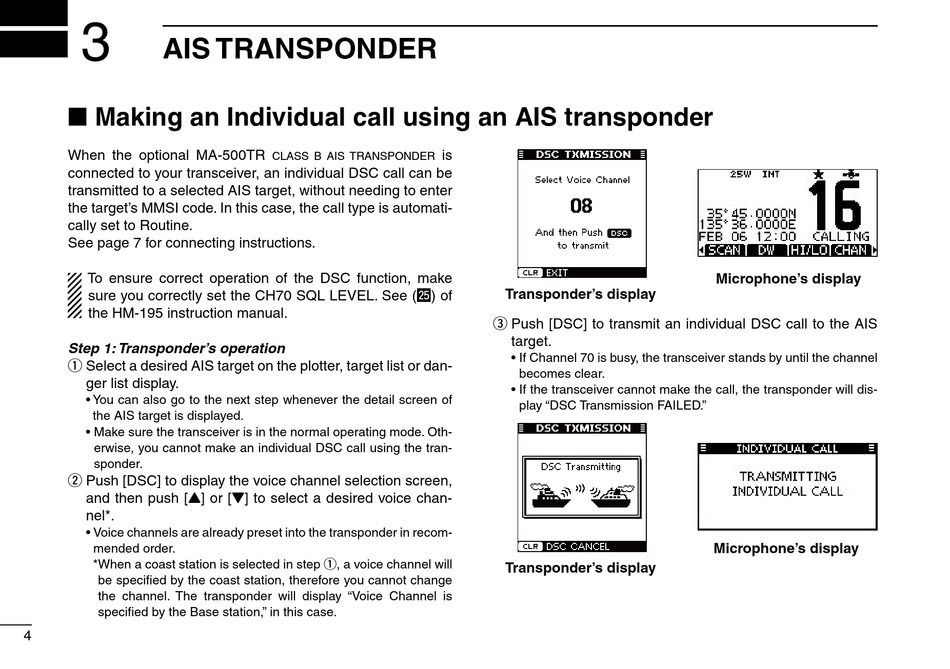

Making an Individual call using an AIS transponder

■
When the optional MA-500TR
connected to your transceiver, an individual DSC call can be
transmitted to a selected AIS target, without needing to enter
the target's MMSI code. In this case, the call type is automati-
cally set to Routine.
See page 7 for connecting instructions.
To ensure correct operation of the DSC function, make
sure you correctly set the CH70 SQL LEVEL. See (¤5 ) of
the HM-195 instruction manual.
Step 1: Transponder's operation
Select a desired AIS target on the plotter, target list or dan-
q
ger list display.
• You can also go to the next step whenever the detail screen of
the AIS target is displayed.
• Make sure the transceiver is in the normal operating mode. Oth-
erwise, you cannot make an individual DSC call using the tran-
sponder.
Push [DSC] to display the voice channel selection screen,
w
and then push [Y] or [Z] to select a desired voice chan-
nel*.
• Voice channels are already preset into the transponder in recom-
mended order.
* When a coast station is selected in step q, a voice channel will
be specified by the coast station, therefore you cannot change
the channel. The transponder will display "Voice Channel is
specified by the Base station," in this case.
4
is
CLASS B AIS TRANSPONDER
Transponder's display
Push [DSC] to transmit an individual DSC call to the AIS
e
target.
• If Channel 70 is busy, the transceiver stands by until the channel
becomes clear.
• If the transceiver cannot make the call, the transponder will dis-
play "DSC Transmission FAILED."
Transponder's display
Microphone's display
Microphone's display
