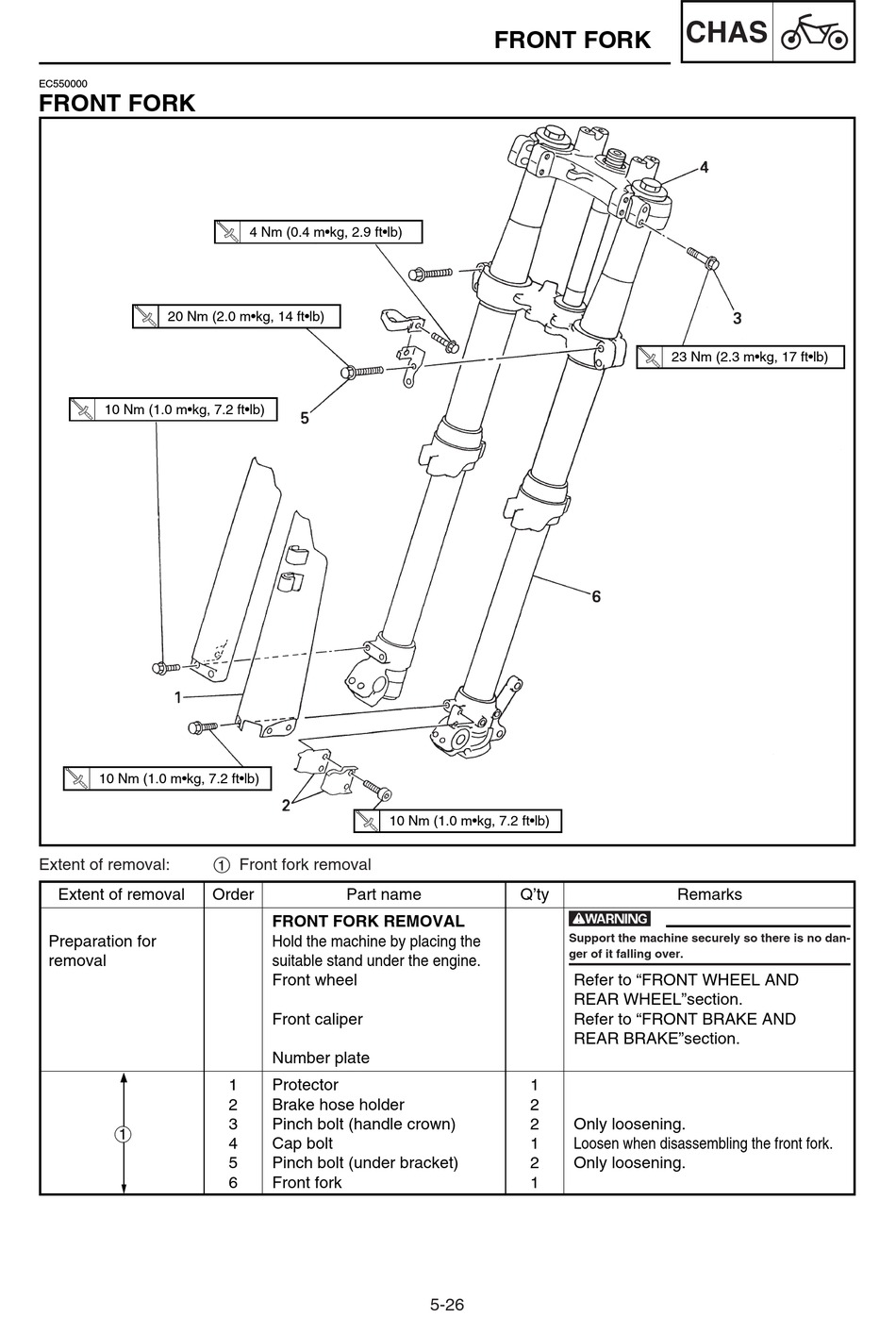

Front Fork Removal - Yamaha YZ125(R)/LC Owner's Service Manual

EC550000
FRONT FORK
20 Nm (2.0 m•kg, 14 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
10 Nm (1.0 m•kg, 7.2 ft•lb)
Extent of removal:
Extent of removal
Preparation for
removal
1
4 Nm (0.4 m•kg, 2.9 ft•lb)

1 Front fork removal

Order Part name
FRONT FORK REMOVAL
Hold the machine by placing the
suitable stand under the engine.
Front wheel
Front caliper
Number plate
1 Protector
2 Brake hose holder
3 Pinch bolt (handle crown)
4 Cap bolt
5 Pinch bolt (under bracket)
6 Front fork
FRONT FORK
10 Nm (1.0 m•kg, 7.2 ft•lb)
Q'ty
1
2
2
1
2
1
5-26
CHAS
23 Nm (2.3 m•kg, 17 ft•lb)
Remarks
w
Support the machine securely so there is no dan-
ger of it falling over.
Refer to "FRONT WHEEL AND
REAR WHEEL"section.
Refer to "FRONT BRAKE AND
REAR BRAKE"section.
Only loosening.
Loosen when disassembling the front fork.
Only loosening.
