- Page 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 Hereby, TRENDnet, declares that this TEW-664UB is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Por medio de la presente TRENDnet declara que el TEW-664UB cumple con los requisitos esenciales y Español cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
- Page 4 Con la presente TRENDnet dichiara che questo TEW-664UB è conforme ai requisiti essenziali ed alle altre Italiano disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. [Italian] Ar šo TRENDnet deklarē, ka TEW-664UB atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar Latviski to saistītajiem noteikumiem.
-

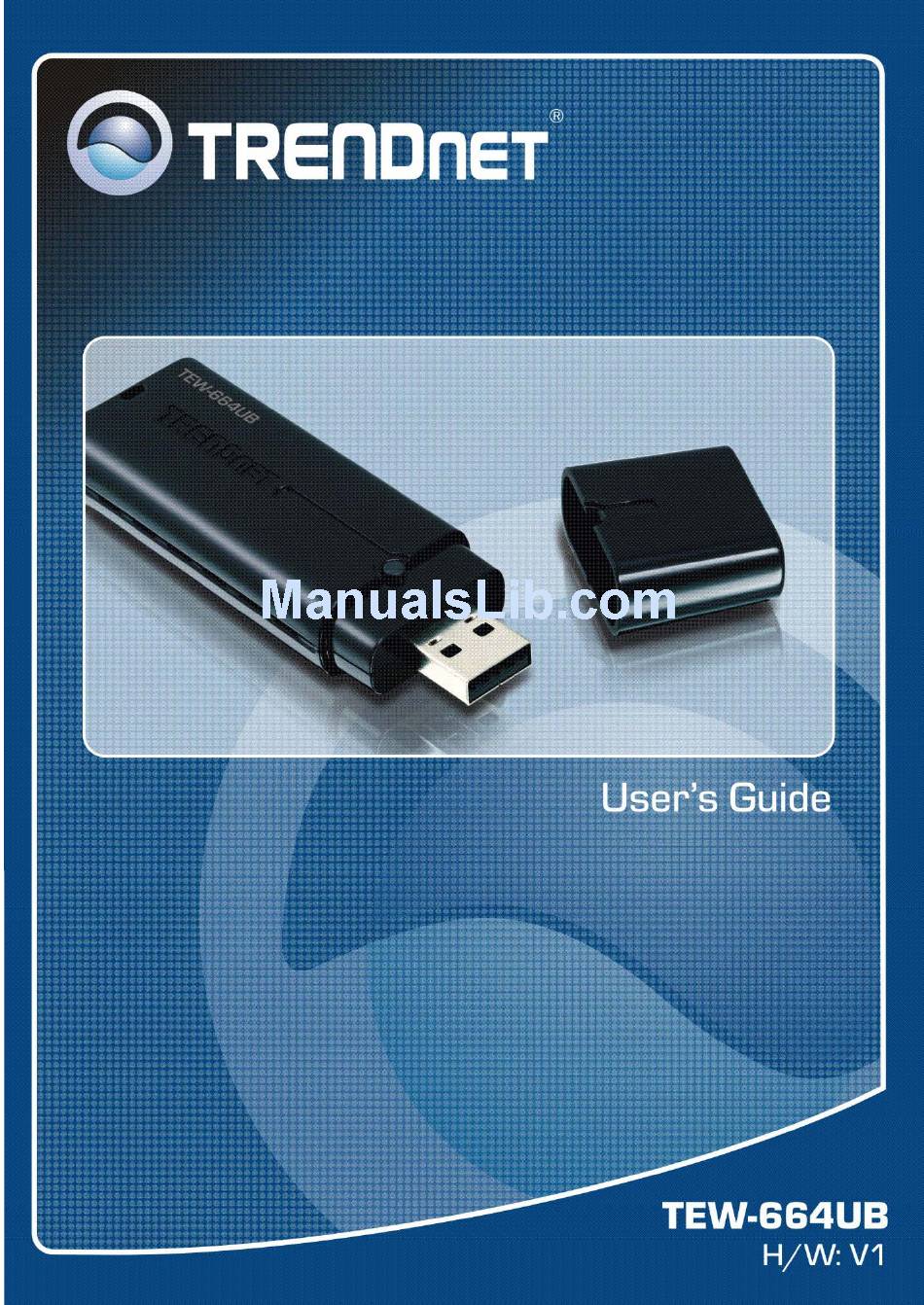

Page 5: Table Of Contents
TABLE OF CONTENT Introduction ....................1 Overview of this User’s Guide ................1 Unpacking and Setup .................. 2 Unpacking ......................2 Setup ........................2 IDentifying external components ............... 3 LED ........................3 Check the installation ..................... 3 ... -
Page 6: Introduction
An easy-to-use utility is bundled with the Wireless USB Adapter for configuration, monitoring, and diagnostic purposes. The TEW-664UB can wirelessly transmit and receive data, at a speed of up to 300 megabits per second. The TEW-664UB provides users with access to real-time information anywhere in their organization. -
Page 7: Unpacking And Setup

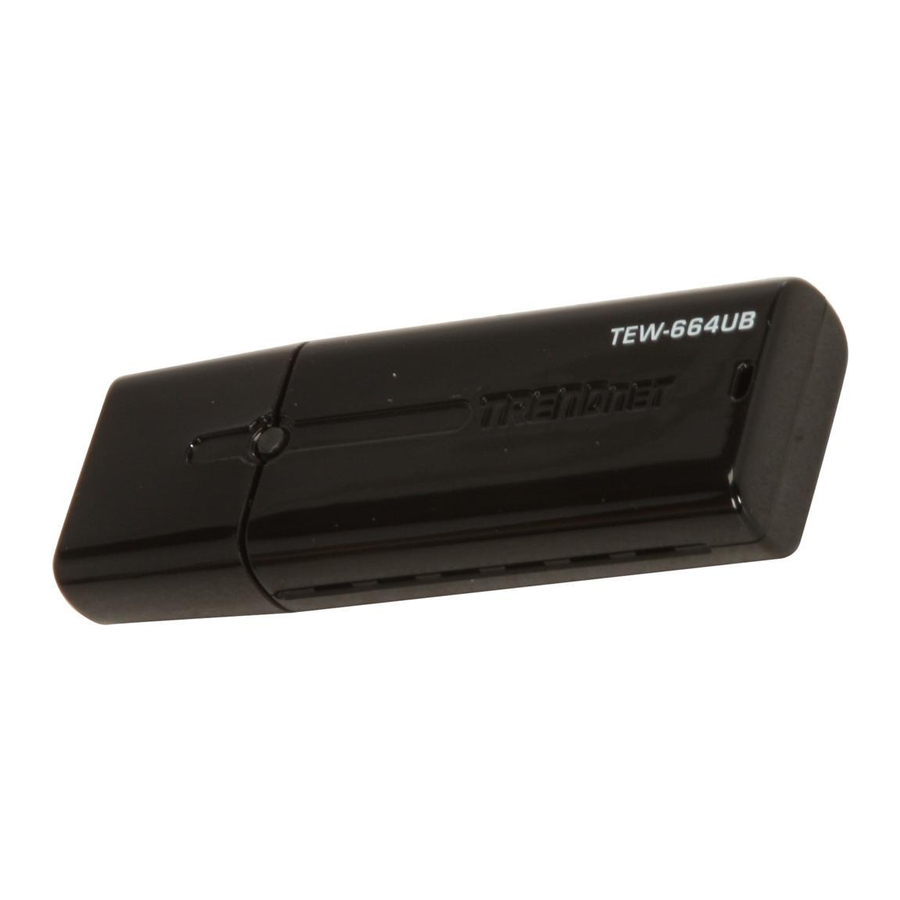

UNPACKING AND SETUP This section provides unpacking and setup information for the TEW-664UB. Unpacking The box should contain the following items: One the IEEE 802.11a/b/g/n 2.4GHz/5GHz Dual-Band Wireless LAN USB Adapter One Driver & Utility CD-ROM If any item is found missing or damaged, please contact your local reseller for replacement. -
Page 8: Identifying External Components
Wireless Ethernet network. Check the installation The LED of the TEW-664UB is clearly visible and the status of the network link can be seen instantly: 1. When connected to the USB port and the driver were installed, the LINK LED will start blinking, and it means that the device is starting to scan a wireless device near the TEW-664UB. -
Page 9: Software Installation
SOFTWARE INSTALLATION This section describes how to install the driver and utility for the TEW-664UB. Windows Based Utility Installation 1) Insert the Utility and Driver CD-ROM into your computer’s CD-ROM Drive and then clicks Install Utility & Driver option. 2) Follow the Installation Wizard Instructions... - Page 10 3) After you reach this screen, click Finish to complete the utility installation. Restart your computer. 4) After your computer is rebooted, plug in the TEW-664UB into an available USB slot on your computer.
-
Page 11: Wireless Utility Setting
WIRELESS UTILITY SETTING You can start to configure the wireless settings using the Wireless Adapter Configuration Utility. Double-click the utility icon that appears in the taskbar. The Wireless Adapter Configuration Utility is divided into six sections: Link Info, Configuration, Site Survey, Profile, WPS and About. Link Information This is the default screen after launching the Utility program. -
Page 12: Configuration
Channel: Shows the current channel for communication. Link Quality: Shows the link quality of the TEW-664UB with an access point or a wireless router when operating under Infrastructure mode. Signal Strength: Shows the wireless signal strength of the connection between the TEW-664UB and a wireless router or an access point. - Page 13 Wireless Mode: There are two modes available for selection ● Infrastructure – to establish wireless communication with the LAN and other wireless clients through the use of Access Points. ● Ad-Hoc – to establish point-to-point wireless communication directly with other wireless client devices. Authtication: The following options are available: Open System, Shared Key, WPA-PSK, WPA2-PSK, WPA EAP-TLS, WPA2 EPA-TLS .
- Page 14 WPA-PSK / WPA2-PSK If using the WPA-PSK/WPA2-PSK authentication method, please select the Encryption type for TKIP or AES then enter the Passphrase key. The minimum length is 8 characters. WPA EAP-TLS If using the WPA/WPA2 EAP-TLS authentication method, please select the Encryption type for TKIP or AES then select the WPA/WPA2 Certificate from drop down list.
-
Page 15: Site Survey
Site Survey This screen allows the user to scan for available wireless networks (wireless clients and Access Points). It also allows the user to establish wireless communications with an available wireless network. Available Network – displays the wireless networks (wireless clients and access points) that are within range. -
Page 16: Profile
Profile Profile – The user can create and manage the created profiles for home, work or public areas. By double-clicking on one of the created profile, the setting will adjust to the specific setting such as SSID, channel, and encryption as saved by that particular profile. -
Page 17: Wps
WiFi Protected Setup (WPS) is an optional certification program from the Wi-Fi Alliance that is designed to ease the task of setting up and configuring security on a wireless network. There are two methods used in the WPS as below instruction. Push Button Connect (PBC) Using the WPS configuration with the PBC method, the configuration steps as below:... - Page 18 4) If the WPS configuration was successful, the follow window will show on. 5) If the WPS configuration was failed, the follow window will show on.
- Page 19 Enter a PIN into my access point Using the WPS configuration with the PIN method, the configuration steps as below: 1) Selected the “Enter a PIN into my access point”, the PIN will be show on the button of the windows. 2) Enter the PIN code from the adapter into the WPS “Clint PIN number”...
- Page 20 4) If the WPS configuration was successful, the follow window will show on.
-
Page 21: About
5) If the WPS configuration was failed, the follow window will show on. About This screen displays information about the TEW-664UB, such as the Driver and Utility version. When a new version of the utility becomes available for upgrade, users will be able to identify by version numbers. -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS Hardware Interface USB 2.0 Compliant Standards IEEE 802.11n draft v2.0, IEEE 802.11a, IEEE 802.11b and IEEE 802.11g Antenna Internal two high performance Antenna LED Indicator Activity Supported OS Windows 2000, XP, Vista, MAC OS X 10.3, 10.4, 10.5 Dimensions 86.5 x 30 x 13 mm (LxWxH) Temperature Operating: 0° ~ 40° C (32° ~ 104° F) Storage: ‐10° ~ 70° C (14° ~ 158° F) Humidity 10% ~ 95% max (Non‐condensing) Certification FCC Part 15.247 for US, ETS 300, 328 for Europe Wireless Module Technique IEEE 802.11 a/g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) IEEE 802.11b: DSSS (DBPSK, DQPSK, CCK) Frequency 2.4G Band: 802.11b/g/n 2412 ‐ 2484 MHz ... - Page 23 3 years limited If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or deliver to customer an equivalent product to replace the defective item. All products that are replaced will become the property of TRENDnet.
