B

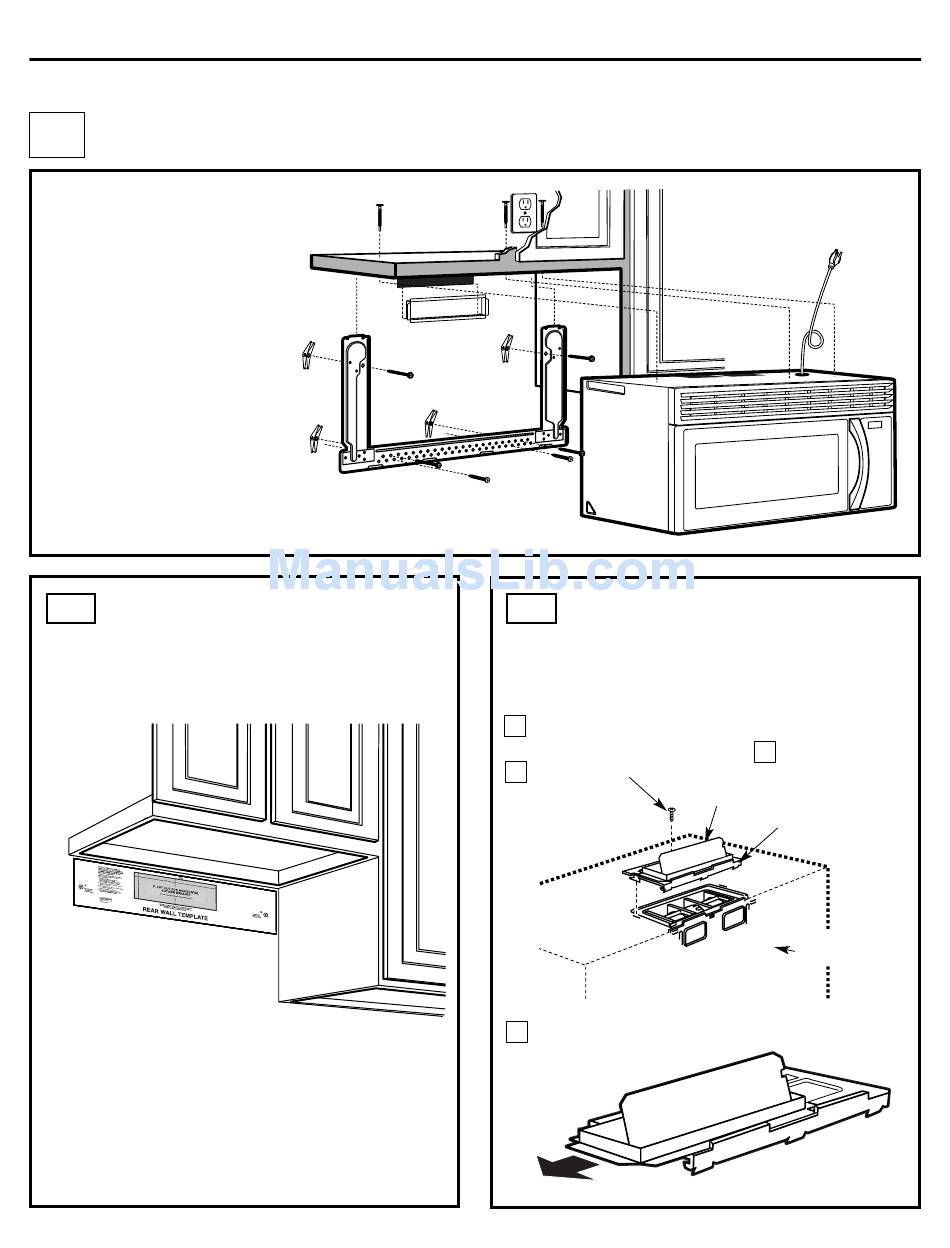

OUTSIDE BACK EXHAUST

INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Remove Exhaust Adaptor
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven
PREPARING THE REAR WALL
B1.
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for
outside exhaust.
•
Read the instructions on the REAR WALL
TEMPLATE.
•
Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall
plate.
•
Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
Installation Instructions
15
(Horizontal Duct)

REMOVE EXHAUST ADAPTOR

B2.
This microwave oven is shipped assembled for top
exhaust. You will need the exhaust adaptor for
installation in the rear wall opening. To remove the
exhaust adaptor from the microwave oven:
Remove tape securing damper.
1
2 Remove and
save screw
that holds
blower plate
to microwave.
Slide exhaust adaptor to one side and remove it.
4
3
Lift off the
blower plate
and attached
Damper
adaptor from
the microwave.
Back of
Microwave
