B

OUTSIDE BACK EXHAUST

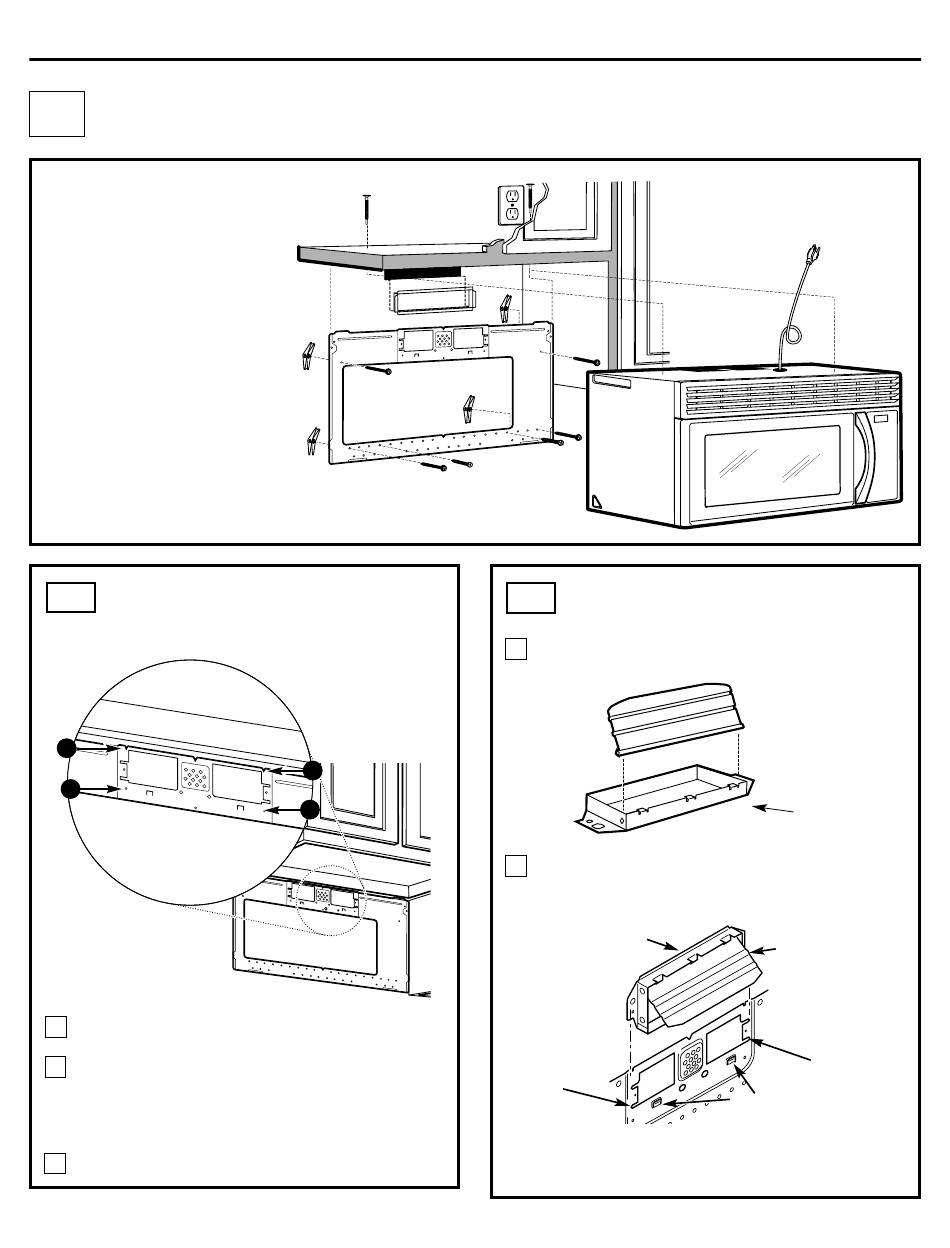

INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Exhaust Adaptor to

Wall Plate

B3. Attach Mounting Plate
to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Oven
PREPARING THE REAR WALL
B1.
FOR OUTSIDE BACK EXHAUST
F
H
1
Place the mounting plate against the rear wall and
align it with the holes drilled earlier.
2
Using a pencil, put dots through holes/notches F,
G, H and I (see above illustration). Remove the
mounting plate and draw lines extending through
the points. This will give the location and size of the
box cutout for the rear wall duct.
3
Use a saw (saber or keyhole) to cut out the opening.
Installation Instructions
G
I
15
(Horizontal Duct)
ATTACH THE EXHAUST
B2.
ADAPTOR TO THE WALL PLATE
1
Insert the tabs on each side of the damper into
the holes at the inside rear of the adaptor.
Attach the exhaust adaptor to the back of the
2
wall plate by sliding it into the guides at the top
center of the back of the plate.
Exhaust Adaptor
Slide exhaust
adaptor into
guides on
wall plate.
Guide
Push in securely until it is in the lower locking tabs.
Take care to assure the damper hinge is installed so
that it is at the top and that the damper swings freely.
Exhaust
Adaptor
Damper
(hinge side up)
Guide
Locking
Tabs
