GE Profile Spacemaker PVM1870SMSS Dimensions And Installation Information

PVM1870SM
GE Profile Spacemaker
™
Dimensions and Installation Information (in inches)
Note: Requires 120V grounded outlet. Electrical receptacle must be
located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
detailed, easy-to-follow installation instructions and convenient full-size
templates are packed with the Spacemaker microwave oven.
Important Information: When installing the Spacemaker microwave
oven over a range, allow minimum of 2" from bottom of Spacemaker
microwave oven to top of range backguard to allow for removal
of light covers.
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
1.8 Cu. Ft. XL1800 Over-the-Range Microwave Oven
®
or
™
service,
Over-the-Range Microwave Oven

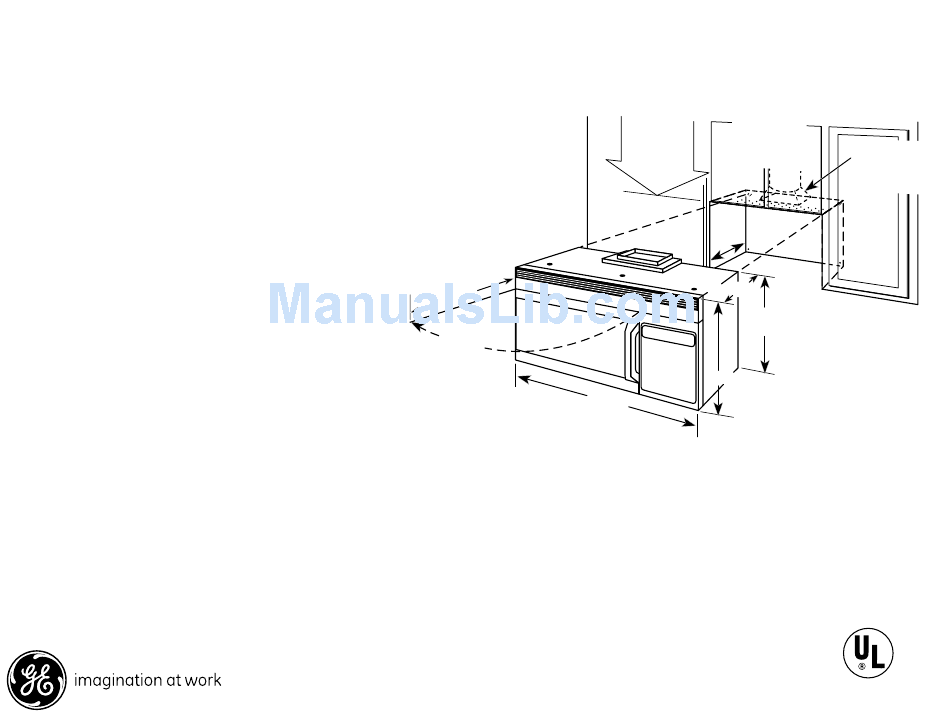

Dimensions (in inches)
24-1/2
105°
Door open
(without
obstruction)
29-7/8
Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.
66" MIN.
30"
Mounting
MIN.
height
width
from
required
floor
13"
MAX.
12"
MIN.
15-29/32
16-29/32
(rear)
16-9/16
Specification Created 7/07
Exhaust outlet
connects to
3-1/4" X 10" duct
Listed by
Underwriters
Laboratories
240263
