- Page 1 1250 Victoria street Carson, CA 90746 U.S.A. & Canada Toll Free 1-800-627-0032 Fox Service 1-800-381-7770 TEL: 310-900-1000 FAX: 310-900-1077 www.turboairinc.com...

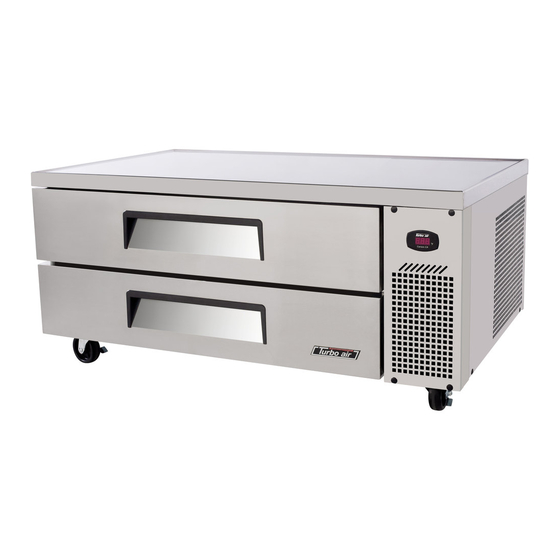

- Page 2 Commercial Refrigerator Service Manual Chef Base Equipment Model No.: TCBE-52SDR TCBE-82SDR TCBE-96SDR...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. FEATURE CHART 1-1.PLAN VIEW/SIDE VIEW/FRONTVIEW(TCBE-52SDR) 1-2.PLAN VIEW/SIDE VIEW/FRONT VIEW(TCBE-82SDR) 1-3.PLAN VIEW/SIDE VIEW/FRONT VIEW(TCBE-96SDR) 2. WIRING DIAGRAMS 2-1.TCBE-52SDR 2-2.TCBE-82SDR 2-3.TCBE-96SDR 3. PART DETAIL 3-1.COMPRESSOR COMPARTMENT 3-2.DOOR 3-3.DRAWER 3-4.REFRIGERATION COMPARTMENT 4. MAIN COMPONENTS 5. TEMPERATURE CONTROL INSTRUCTION 5-1.HOW TO USE THE TEMPERATURE CONTROL 5-2.FUNCTION TABLE... -
Page 4: Feature Chart
1.FEATURE CHART 1-1. PLAN VIEW/SIDE VIEW/FRONT VIEW(TCBE-52SDR) PLAN VIEW SIDE VIEW FRONT VIEW 1 CABINET ASSEMBLY 2 UNIT BACK COVER 3 SUCTION PIPE 4 UNIT SIDE COVER 5 COMPRESSOR 6 CONDENSER ASSEMBLY 7 DRAWER ASSEMBLY 8 DRAWER GUIDE 9 PAN... - Page 5 1-2. PLAN VIEW/SIDE VIEW/FRONT VIEW(TCBE-82SDR) PLAN VIEW SIDE VIEW FRONT VIEW FEATURE CHART 1 CABINET ASSEMBLY 2 UNIT BACK COVER 3 SUCTION PIPE 4 UNIT SIDE COVER 5 COMPRESSOR 6 CONDENSER ASSEMBLY 7 DRAWER ASSEMBLY 8 DRAWER GUIDE 9 PAN 10 EVAPORATOR FAN MOTOR 11 EVAPORATOR ASSEMBLY 12 DRAIN GUIDE...
- Page 6 FEATURE CHART 1-3. PLAN VIEW/SIDE VIEW/FRONT VIEW(TCBE-96SDR) PLAN VIEW SIDE VIEW FRONT VIEW 1 CABINET ASSEMBLY 2 UNIT BACK COVER 3 SUCTION PIPE 4 UNIT SIDE COVER 5 COMPRESSOR 6 CONDENSER ASSEMBLY 7 DRAWER ASSEMBLY 8 DRAWER GUIDE 9 PAN 10 EVAPORATOR FAN MOTOR 11 EVAPORATOR ASSEMBLY 12 DRAIN GUIDE...
-
Page 7: Wiring Diagrams
2.WIRING DIAGRAMS 2-1.TCBE-52SDR WIRING DIGRAM 2-1.TCBE-82/96SDR WIRING DIGRAM... -
Page 8: Part Detail
3.PART DETAIL 3-1. COMPRESSOR COMPARTMENT CONDENSING UNIT ASSEMBLY TCBE-52SDR CONDENSING UNIT ASSEMBLY TCBE-82SDR/TCBE-96SDR... - Page 9 PART DETAILS CONDENSER FAN MOTOR ASSEMBLY CONDENSER FAN MOTOR ASSEMBLY TCBE-52SDR TCBE-82SDR/TCBE-96SDR...
-
Page 10: 3-4.Refrigeration Compartment
PART DETAILS 3-2. DOOR DOOR GASKET 3-3. DRAWER 3-4. REFRIGERATION COMPARTMENT EVA FAN DUCT... - Page 11 PART DETAILS EVAPORATOR COIL EVAPORATOR FAN MOTOR (TCBE-52SDR) THERMOSTATE...
-
Page 12: Main Components
4.MAIN COMPONENTS 1.COMPRESSOR MODEL PART NAME TCBE-52SDR HBL27YE-1 TCBE-82SDR SK1A1C-L2W TCBE-96SDR SK1A1C-L2W 2.COMPRESSOR RELAY,OVERLOAD MODEL RELAY TCBE-52SDR GSR SO68 BO8 08 TCBE-82SDR J531Q34E220M3503 TCBE-96SDR J531Q34E220M3503 3.COMPRESSOR CAPACITOR MODEL STARTING TCBE-52SDR 200V/100μF TCBE-82SDR 125V/125μF TCBE-96SDR 125V/125μF 4.CONDENSER FAN MOTOR MODEL PART NAME... -
Page 13: Temperature Control Instruction
Controlled Part Temperature Compressor Control Evap. Fan Motor (K55-Q5607) Cond. Fan Motor Model:TCBE-52SDR TCBE-82SDR TCBE-96SDR TEMPERATURE CONTROL (TCBE-52SDR/TCBE-82SDR/TCBE-96SDR) Description 1．The temperature can be changed by turning the dial knob 2．Compressor is automatically turned on and off by thermostat ■Cut in and out temperature chart.℉... -
Page 14: Parts List
6.PARTS LIST FOR CHEF BASE EQUIPMENT Part name Part code Cabinet CABINET ASSEMBLY C520000100 CABINET ASSEMBLY C820000100 CABINET ASSEMBLY C960000100 CASTOR M726500200 CASTOR M726500100 Drawer DRAWER ASSEMBLY C520000200 DRAWER ASSEMBLY(S) C960000200 DOOR ASSEMBLY C960000300 DOOR ASSEMBLY(S) C820000200 DOOR GASKET C962300100 DOOR GASKET(S) C822300100 ROLLER ASSEMBLY... - Page 15 Part name Part code SUCTION PIPE C524400200 SUCTION PIPE C964400400 CAPILLARY TUBE C524400200 CAPILLARY TUBE C964400400 CONNECT PIPE COMPRESSOR AND C964400600 CONDENSER CONNECT PIPE COMPRESSOR AND C964400500 CONDENSER CONNECT PIPE COMPRESSOR AND C964400200 DRYER CONNECT PIPE COMPRESSOR AND C964401200 DRYER COMPRESSOR HARNESS ASSEMBLY HARNESS RELAY...
- Page 16 PARTS LIST FOR CHEF BASE EQUIPMENT Part name Part code MULLION COVER(C) C961400200 EVAPORATOR FAN MOTOR 3966328120 EVAPORATOR FAN BLADE M729800100 EVAPORATOR FAN MOTOR C961800100 BRACKET EVAPORATOR FAN DUCT(L) C526900400 EVAPORATOR FAN DUCT(R) C966900500 EVAPORATOR DUCT INNER C966900800 COVER(L) EVAPORATOR DUCT INNER C966900700 COVER(R) EVAPORATOR DUCT(L)
-
Page 17: Replacement Of Main Components
7.REPLACEMENT OF MAIN COMPONENTS 7-1.REPLACING DRAWER A. Pull out the drawer B. Lift the drawer C. Take out the draw guide... - Page 18 REPLACEMENT OF MAIN COMPONENTS 7-2.REFRIGERATION COMPARTMENT PARTS A. Disassemble the temperature control cover B. Disassemble the eva fan duct C. Take out the eva fan duct...
- Page 19 REPLACEMENT OF MAIN COMPONENTS D. Disassemble the eva duct E. Replace the thermostat &sensor F. Remove the evaporator coil...
- Page 20 REPLACEMENT OF MAIN COMPONENTS G. Disassemble the evaporator fan motor...
- Page 21 REPLACEMENT OF MAIN COMPONENTS 7-3.COMPRESSOR COMPARTMENT PARTS A. Disassemble the unit front cover B. Disconnect the connectors C. Disassemble the condensing unit...
- Page 22 REPLACEMENT OF MAIN COMPONENTS D. Disconnect the connectors E. Disassemble the condenser fan motor...
- Page 23 REPLACEMENT OF MAIN COMPONENTS 7-4. Replacing the display assembly A. Disassemble the display fixture B. Take out the display...
- Page 24 REPLACEMENT OF MAIN COMPONENTS 7-5. Replacing the cabinet heater A. Disassemble the line frame cover B. Disassemble the cabinet heater...
- Page 25 REPLACEMENT OF MAIN COMPONENTS 7-6. Replacing the mullion heater A. Disassemble the mullion cover B. Disassemble the mullion heater C. Disassemble the connectors...
- Page 26 REPLACEMENT OF MAIN COMPONENTS 7-7. REPLACING THE PANS...
