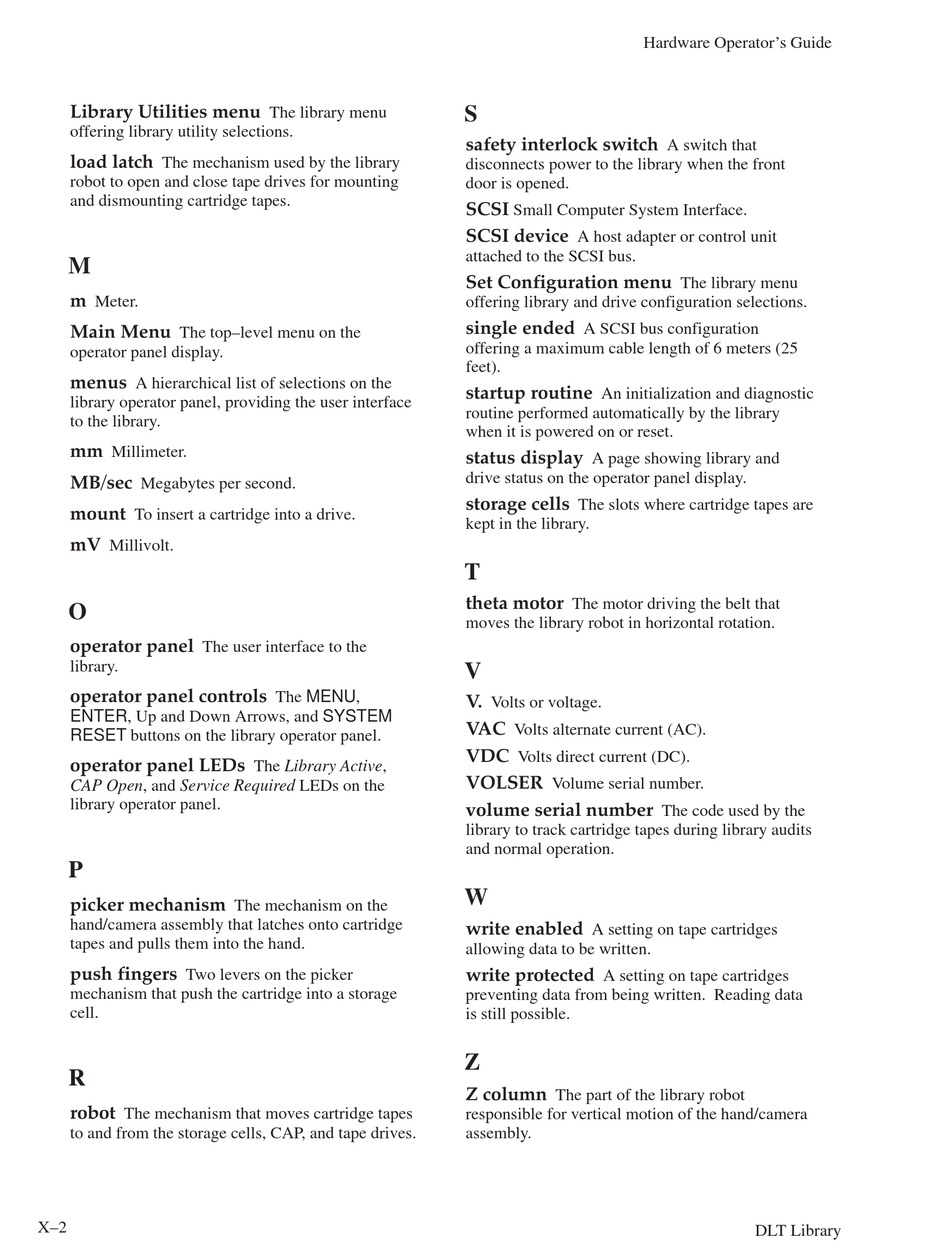

HP Surestore Tape Library Model 3/30 Hardware Operator's Manual page 54

Library Utilities menu
offering library utility selections.
load latch
The mechanism used by the library
robot to open and close tape drives for mounting
and dismounting cartridge tapes.
M
m
Meter.
Main Menu
The top–level menu on the
operator panel display.
menus
A hierarchical list of selections on the
library operator panel, providing the user interface
to the library.
mm
Millimeter.
MB/sec
Megabytes per second.
mount
To insert a cartridge into a drive.
mV
Millivolt.
O
operator panel
The user interface to the
library.
operator panel controls
ENTER, Up and Down Arrows, and SYSTEM
RESET buttons on the library operator panel.
operator panel LEDs
CAP Open, and Service Required LEDs on the
library operator panel.
P
picker mechanism
hand/camera assembly that latches onto cartridge
tapes and pulls them into the hand.
push fingers
Two levers on the picker
mechanism that push the cartridge into a storage
cell.
R
robot
The mechanism that moves cartridge tapes
to and from the storage cells, CAP, and tape drives.
X–2
The library menu
The MENU,
The Library Active,
The mechanism on the
S
safety interlock switch
disconnects power to the library when the front
door is opened.
SCSI
Small Computer System Interface.
SCSI device
A host adapter or control unit
attached to the SCSI bus.
Set Configuration menu
offering library and drive configuration selections.
single ended
A SCSI bus configuration
offering a maximum cable length of 6 meters (25
feet).
startup routine
An initialization and diagnostic
routine performed automatically by the library
when it is powered on or reset.
status display
A page showing library and
drive status on the operator panel display.
storage cells
The slots where cartridge tapes are
kept in the library.
T
theta motor
The motor driving the belt that
moves the library robot in horizontal rotation.
V
V.
Volts or voltage.
VAC
Volts alternate current (AC).
VDC
Volts direct current (DC).
VOLSER
Volume serial number.
volume serial number
library to track cartridge tapes during library audits
and normal operation.
W
write enabled
A setting on tape cartridges
allowing data to be written.
write protected
A setting on tape cartridges
preventing data from being written. Reading data
is still possible.
Z
Z column
The part of the library robot
responsible for vertical motion of the hand/camera
assembly.
