Figure 3-2. Moving The Hand/Camera Assembly - HP Surestore Tape Library Model 3/30 Hardware Operator's Manual

Hardware Operator's Guide
If the library robot becomes inoperative and you want to mount a tape into a drive,
the hand/camera assembly might be in the way of the cartridge tape you want to
reach, whether that tape is in a tape drive or a storage cell.
To move the hand/camera assembly to reach a cartridge or drive
1. Unlock and open the front door. (Power to the robot is disconnected, although
the tape drives will still be powered on and operable.)
2. Grasp the hand and move it up, down, or horizontally (rotating), as shown in
Figure 3–2, until you can access the cell or drive you want.

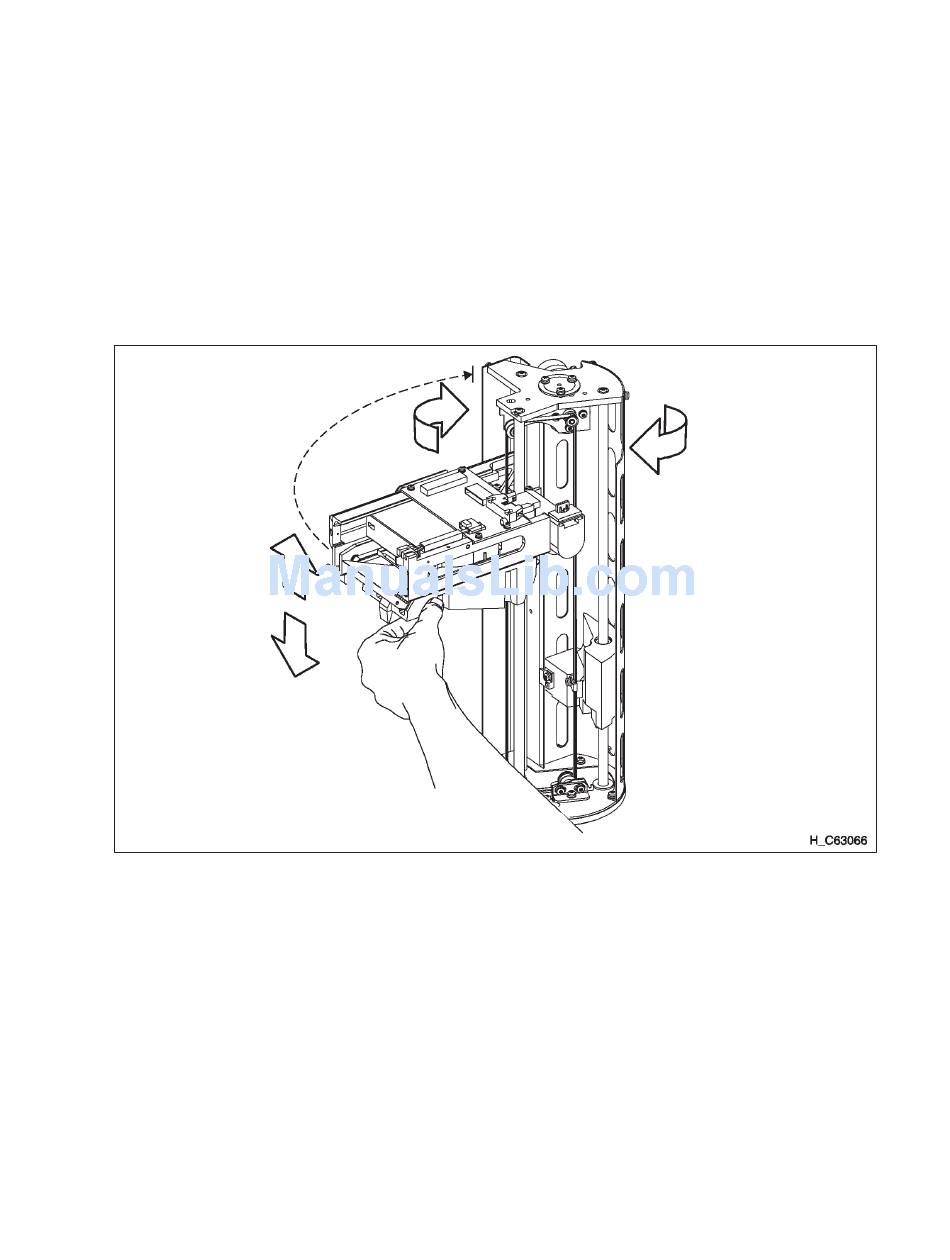

Figure 3–2. Moving the Hand/Camera Assembly
DLT Library
Manual Operations
3–3
