GE Appliances
JKP20BF/CF/WF – GE 27" Built-In Single Oven

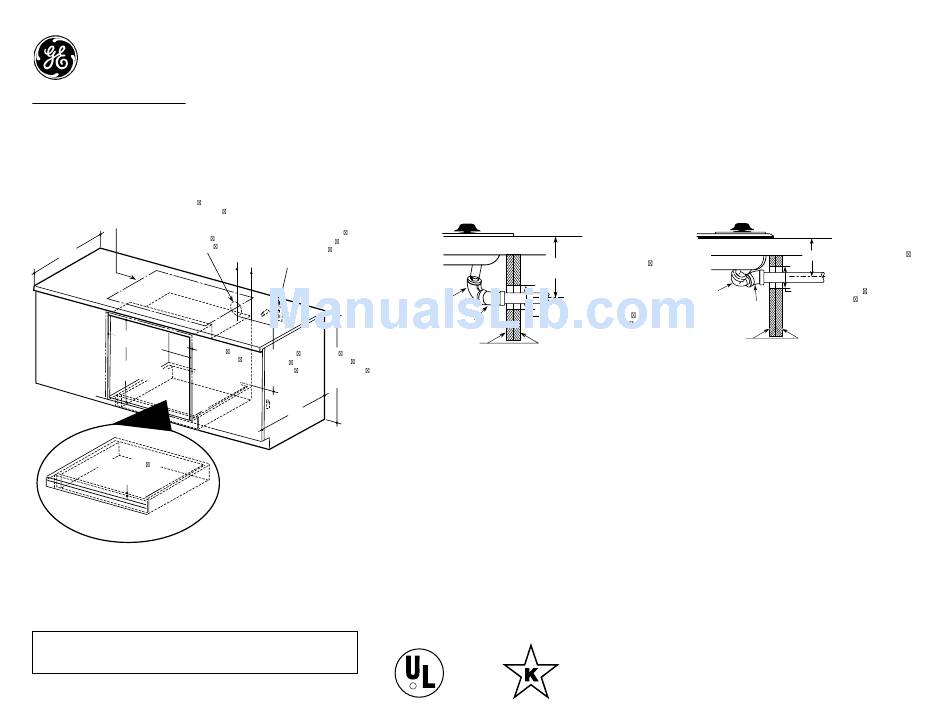

Undercounter Installation Dimensions (in inches)
Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout size.
See label on top of oven for approved cooktop models.
240V / 208V
Junction Box
25
Location
25" MIN.
25 1/4" MAX.
Allow 1"
unit overlap
27 5/8" MIN.
all edges
28 1/8" MAX.
3/4" Support
Platform Required
Must Support 150 Lbs.
Note: Oven is rated for use only under 30" standard or sealed burner gas and
selected 30" CleanDesign and Calrod
electric cooktops.
®
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
Electric wall ovens are not approved for installation with a plug
7
and receptacle. They must be hard wired in accordance with
installation instructions.
Specification Created 7/02
320430
Sealed Burner Gas Cooktop Installation
(Pub. 1-G003 pg. 107) May 11, 1993
Sealed Burner Gas Cooktop
Installation Dimensions (in inches)
Gas or electric connections
for gas cooktop must be
located in an adjacent
accessible location to the right
5
90° Street el
22" MIN.
36"
Above
Typical
Support
Countertop
Height
Platform
24
R
5" To center of 2" diameter
hole from countertop
2" Diameter hole (20-7/8"
45° Elbow
from front of countertop
to hole center)
Cabinet sides
Listed by
Underwriters
Laboratories
Standard Burner Gas Cooktop Installation
(Pub. 1-G003 pg. 107) May 11, 1993
Standard Burner Gas Cooktop
Installation Dimensions (in inches)
3-7/16"
90° Street el
2" MIN. diameter hole
(23-1/4" from front
45° Elbow
surface of countertop)
Cabinet sides
Note: Cabinets installed adjacent to wall ovens must have
an adhesion spec of at least a 194°F temperature rating.
For answers to your Monogram,
®
GE appliance questions, visit our website at
ge.com or call GE Answer Center
800.626.2000.
To center of 2" diameter
hole from countertop
